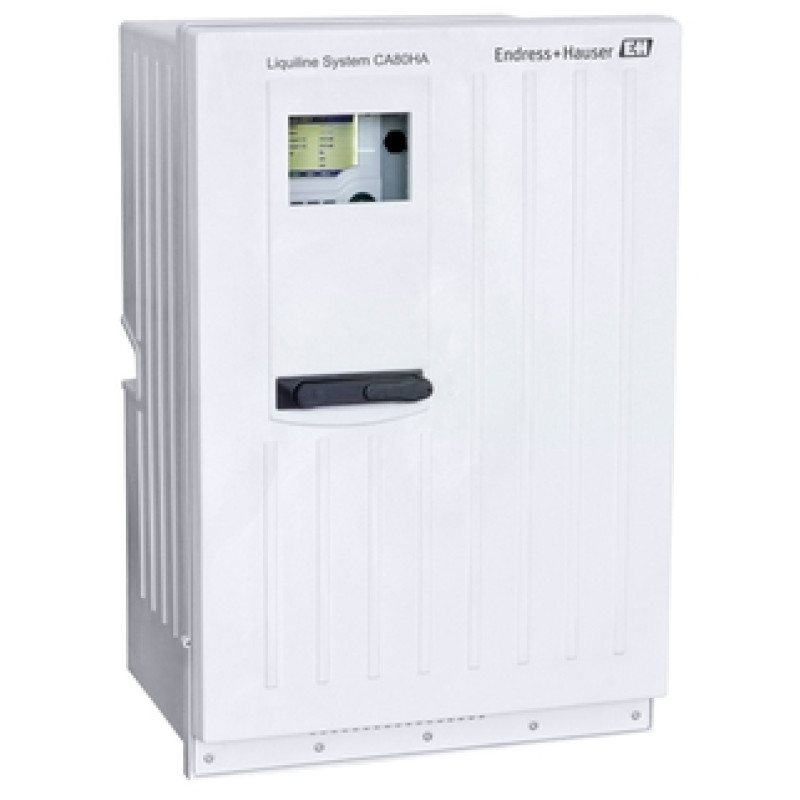

CA80HA Liquiline System Water hardness analyzer
- Brand: EH
- Product Code: CA80HA
- Availability: In Stock
-
60,122.88€
- Ex Tax: 50,102.40€
-
Measuring principle
Colorimetric
-
Characteristic
Process analyzer for hardness in aqueous solutions
Comply with standard colorimetric measuring principle - phthalein purple method -
Size

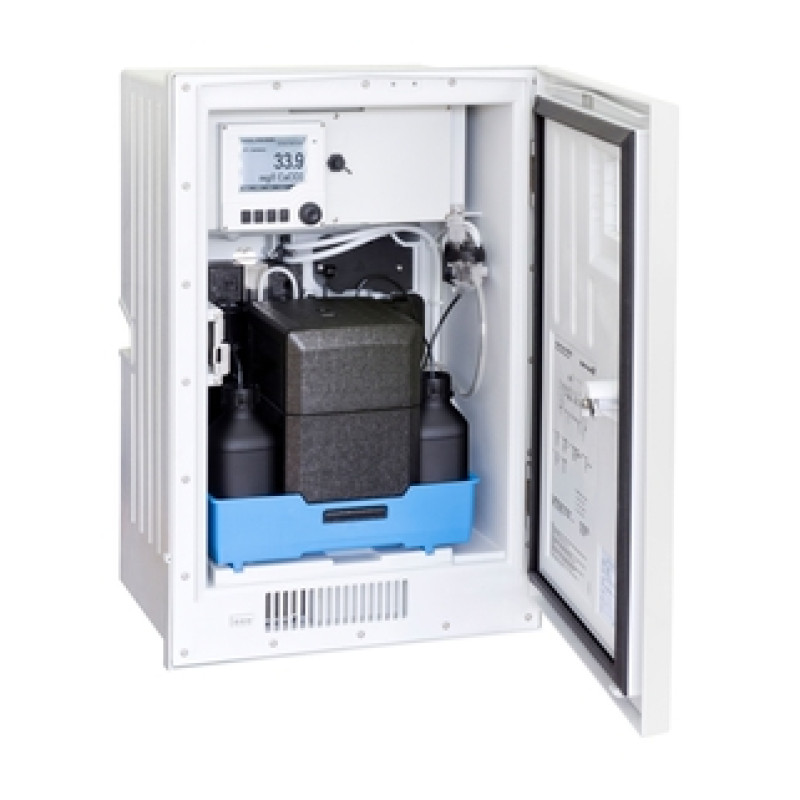

Housing (open version):
793 x 530 x 417 mm
31.22 x 20.87 x 16.42 in
Housing (closed version):
793 x 530 x 463 mm
31.22 x 20.87 x 18.23 in
Housing with base:
1723 x 530 x 463 mm
67.83 x 20.87 x 18.23 in -
Design
Open design, cabinet and stand housing
High-Performance plastic ASA-PC, additional stand coated steel -
Process temperature
4 to 40 °C (39 to 104 °F)
-
Ambient temperature
5 to 40 °C (41 to 104 °F)
-
Process pressure
Unpressurized
-
Sample flow rate
Min. 5 ml/min (0.17 fl.oz/min)
-
Consistency of the sample
Low solid content (< 50NTU), aqueous homogeneous
-
Application
Total hardness monitoring in reverse osmosis systems inlets, after ion exchange systems
Monitoring of water preparation in processes and drinking water -
Power supply
100 ... 120 VAC / 200 ... 240 VAC ± 10%
24 VDC ± 10%
50 ± 1 oder 60 ± 1,2 Hz -
Output / communication
2x 0/4 ... 20 mA
Webserver, Modbus, Ethernet/IP, Profibus DP -
Input
1 or 2 measuring channel
1 ... 4 digital sensor inputs for sensors with Memosens protocol (optional) -
Measurement range
0 to 80 mg/l CaCO3
0 to 80 mg/l with dilution function to maximum 16 to 1600 mg/l CaCO3 -
Consumables
Reagents and standard solutions CY80HA as well as cleaner CY800 are necessary for the operation
Regular maintenance is done with the parts of the maintenance kit CAV800
