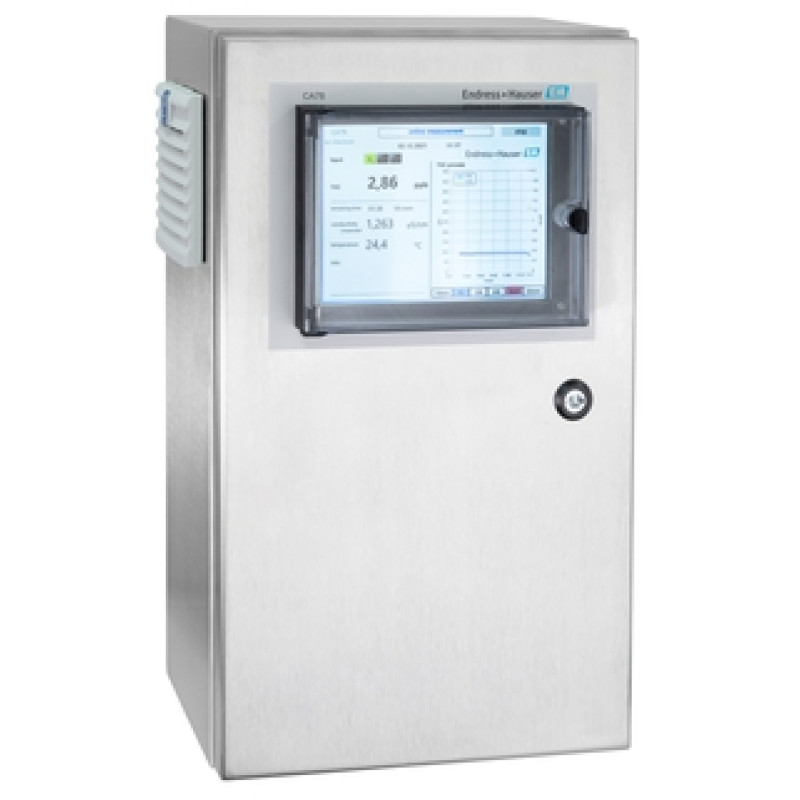

CA78 Low-range TOC analyzer
- Brand: EH
- Product Code: CA78
- Availability: In Stock
-
64,745.28€
- Ex Tax: 53,954.40€
-
Measuring principle
Differential conductivity
-
Characteristic
Total carbon (TOC) analyzer for trace levels
-
Measuring method
TOC determination by UV digestion and measurement of the differential conductivity
-
Size
Housing:
500 x 290 x 200 mm
19.68 x 11.41 x 7.87 in -
Design
Stainless steel housing;
IP 42 (standard), IP54 (optional) -
Process temperature
< 50 °C (122 °F)
-
Ambient temperature
–5 to 50 °C (23 to 122 °F)
-
Process pressure
max. 0.5 bar (7.25 psi)
-
Sample flow rate
Min. 5 ml/min (0.17 fl.oz/min)
-
Consistency of the sample
max. conductivity 2 μS/cm, optional: max. 10 μS/cm; particle free
-
Specials

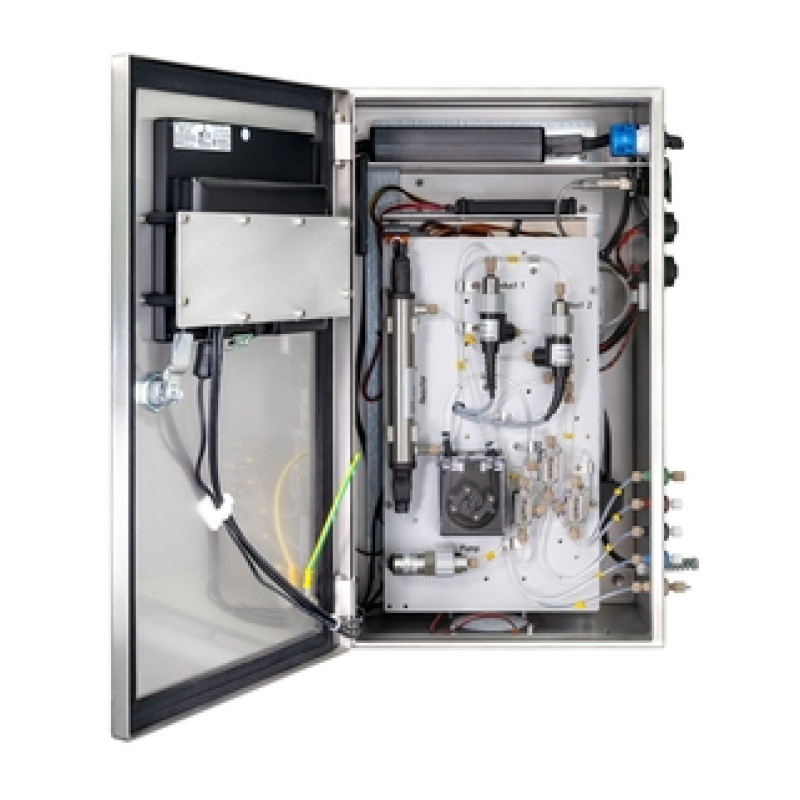

UV reactor with continuous function monitoring
-
Application
Determination of total carbon in ultrapure water applications, e.g. in the power or semiconductor industry, that meet the following conditions:
Conductivity < 10 μS/cm
pH range: neutral -
Power supply
100/240 V AC, 47 - 63 Hz
-
Output / communication
0/4 to 20 mA, galvanically isolated
-
Input
1 to optional 3 measuring channels
Optinonal control input 24 V (for 1 channel instruments) -
Measurement range
0.5 to 1 000 μg/l (ppb)
