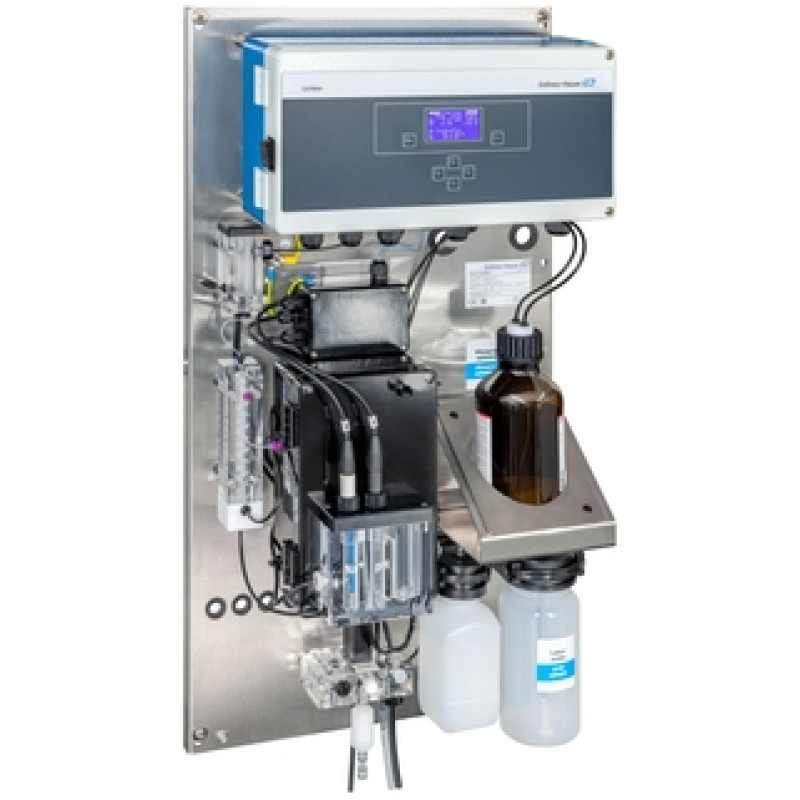

CA76NA Sodium analyzer
- Brand: EH
- Product Code: CA76NA
- Availability: In Stock
-
54,020.16€
- Ex Tax: 45,016.80€
-
Measuring principle
Potentiometric / ISE
-
Characteristic
Analyser for sodium in boiler feedwater, steam, condensate and ion exchangers
-
Size
850 x 450 x 250 mm
33.5 x 17.7 x 9.8 inch -
Design
Panel stainless steel 1.4301
-
Process temperature
10 to 40 °C
(50 to 104 °F) -
Ambient temperature
5 to 40 °C
(41 to 104 °F) -
Process pressure
1 to 5 bar (abs)
14.5 to 72.5 psi -
Sample flow rate
10 to 15 l/h
2.64 to 3.96 gal/h -
Application
Online sodium monitoring in boiler feed water, water steam cycles, condensate and ion exchangers
-
Power supply
100 to 240 V AC, 50/60 Hz
-
Output / communication
0/4 to 20 mA
-
Measurement range
0.1 to 9999 µg/l (ppb) Na
-
Consumables
CA76NA sodium electrode,
CA76NA pH combination electrode

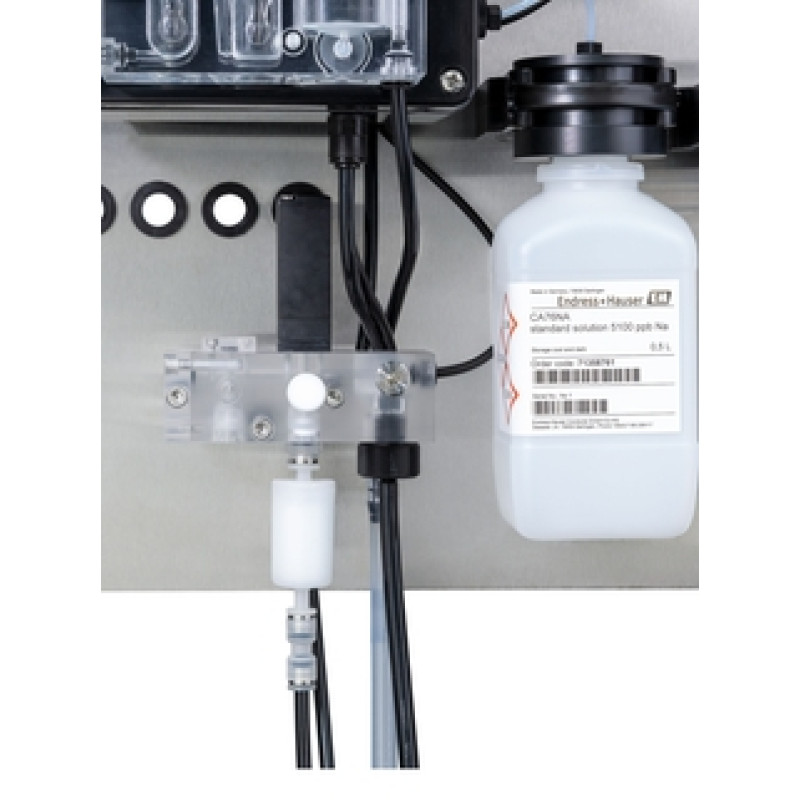

CA76NA standard solution 5100 ppb Na
