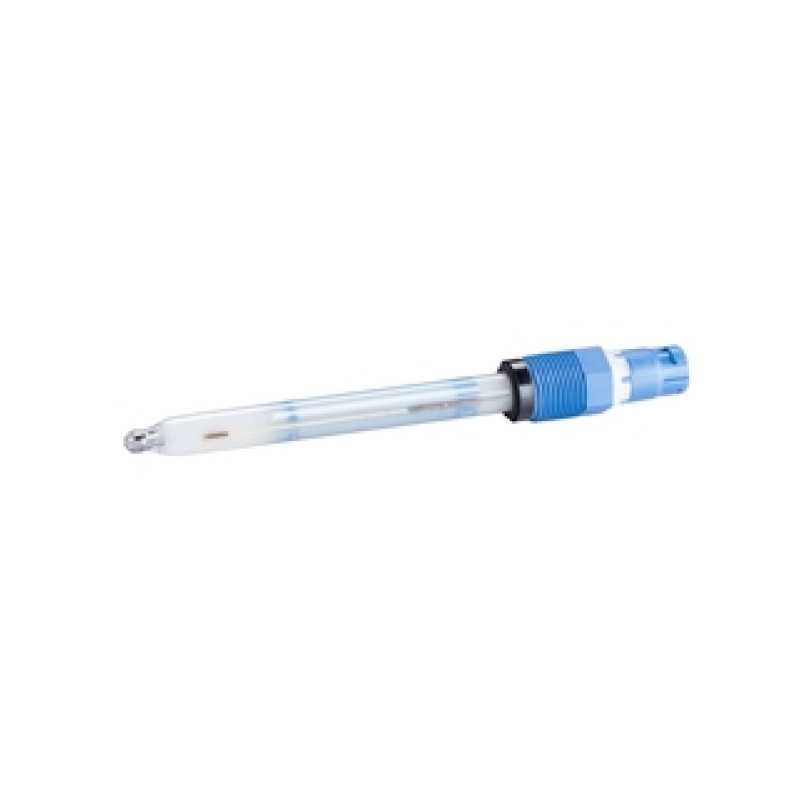

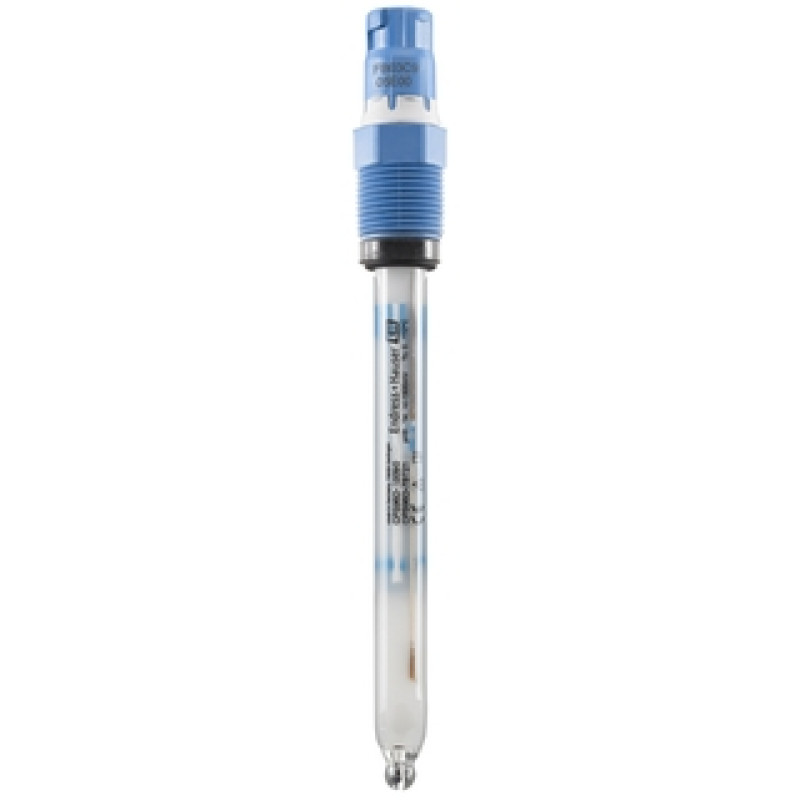

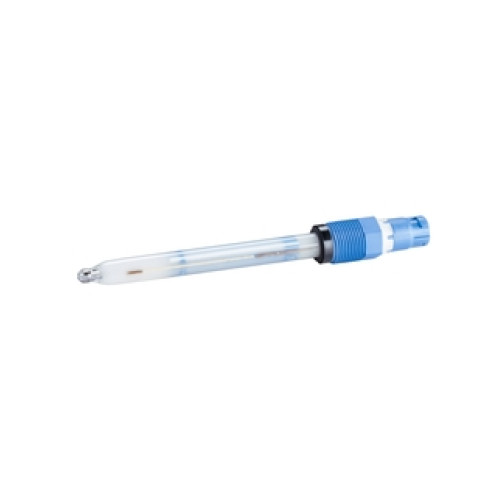

CPS96D Memosens Digital combined pH/ORP sensor
- Brand: EH
- Product Code: CPS96D
- Availability: In Stock
-
2,018.88€
- Ex Tax: 1,682.40€
-
Measuring principle
Potentiometric
-
Application
- Process applications - media with high contamination: emulsions, suspensions, precipitation reactions - min. conductivity >500µS/cm
-
Characteristic
- Rapid response - new, stabilised gel insensitive to contaminations
-
Measurement range
pH 0-14
-
Measuring principle
- Open aperture - double gel reference with ion trap
Pt-disc as additional ORP element.
rH measurment and control of the reference impedance. -
Design
- All shaft lengths with temperature sensor - advanced gel technology - digital electrode with Memosens technology
-
Material
Glass
-
Dimension
Diameter: 12 mm (0.46 inch)
Shaft lengths: 120, 225, 360 and 425 mm
(4.68, 8.77, 14.04 and 16,57 inch) -
Process temperature
max. 110°C
(230°F) -
Process pressure
max. 10 bar
(145 psi) -
Temperature sensor
NTC 30k
-
Connection
Inductive, contactless connection head with Memosens technology
-
Ingress protection
IP68
