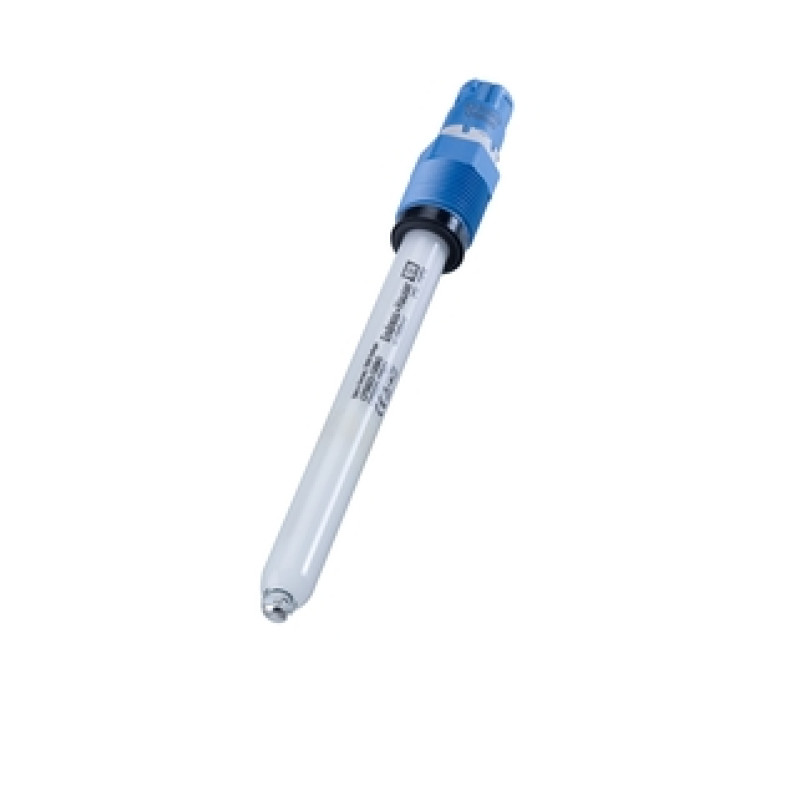

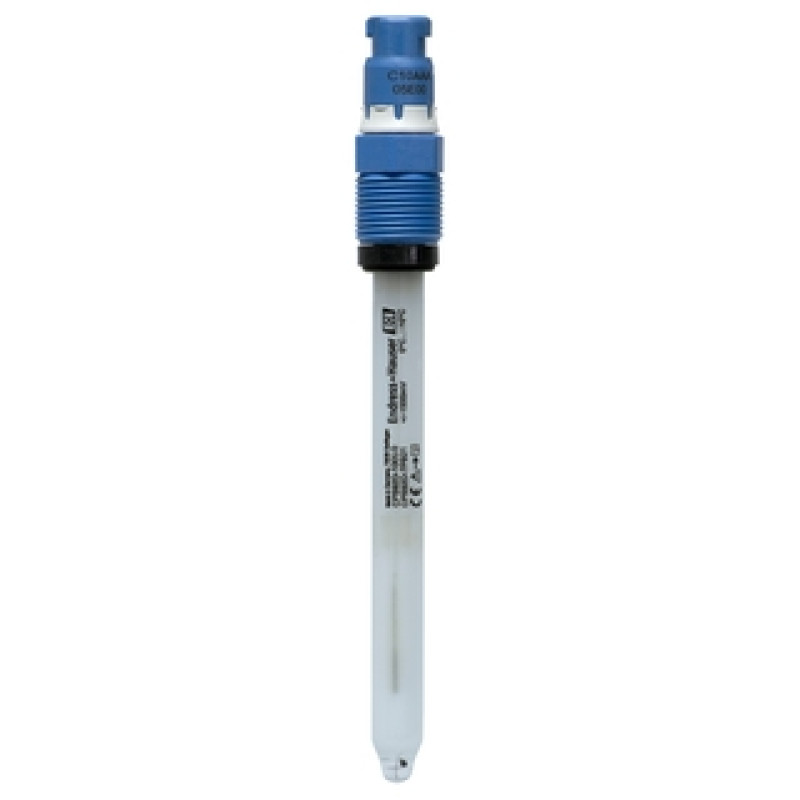

CPS92D Orbipore Digital ORP sensor
- Brand: EH
- Product Code: CPS92D
- Availability: In Stock
-
1,503.36€
- Ex Tax: 1,252.80€
-
Measuring principle
Sensor ORP / Redox
-
Application
Processapplications, heavy soiled media, emulsions, suspensions, precipitations
-
Installation
digital electrode with Memosenstechnology
-
Characteristic
Very robust, easy cleanable.
-
Measurement range
-1500 mV - +1500 mV
-
Measuring principle
- Gel compact electrode with open aperture - measuring part as platinum cap.
-
Design
All shaft lengths - advanced gel technology
-
Material
Glass electrode and platinum cap.
-
Dimension
Diameter: 12 mm (0.46 inch)
Shaft lengths: 120, 225, 360 and 425 mm
(4.68, 8.77, 14.04 and 16,57 inch) -
Process temperature
max. 110°C (230°F)
-
Process pressure
max. 13bar (189psi)
-
Temperature sensor
NTC30k
-
Ex certification
ATEX II IG EEXia IIC T3/T4/T6
FM/CSA Class1 Div.2 in Kombination mit CM42 und CPM153 Messumformer. -
Connection
Memosens
-
Ingress protection
IP68
