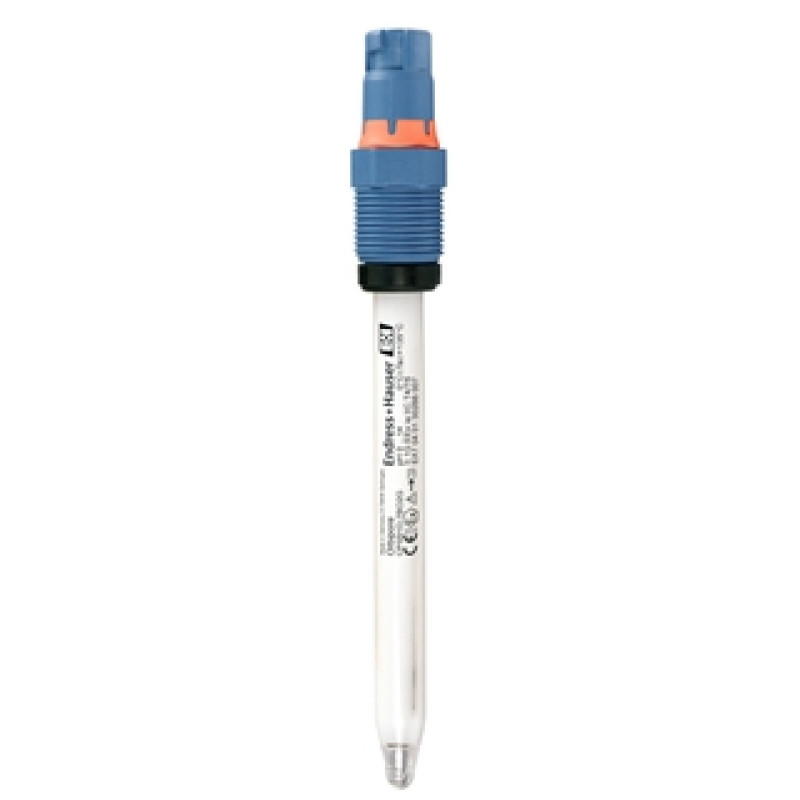

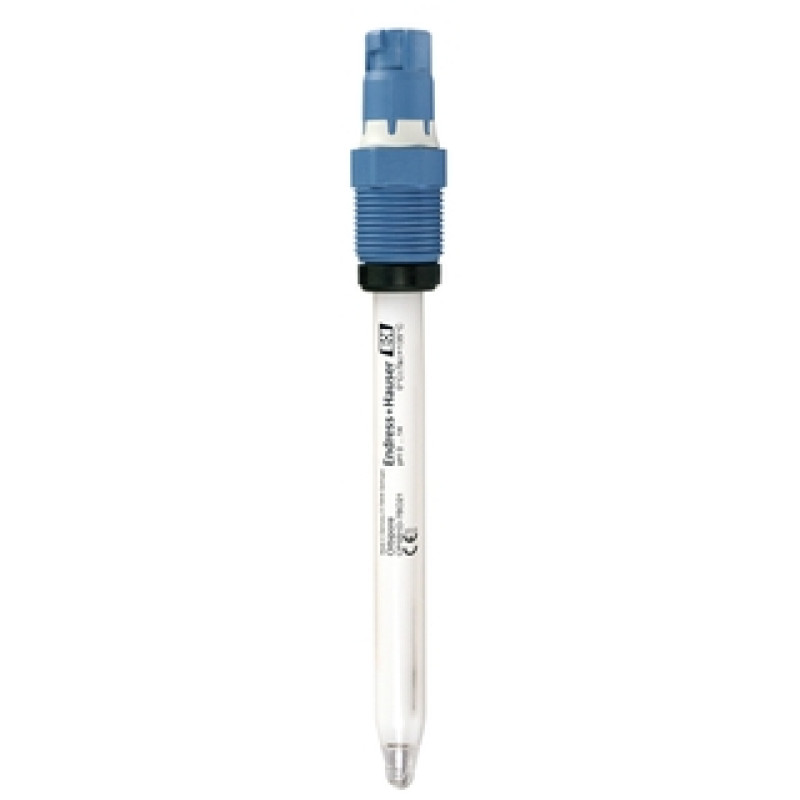

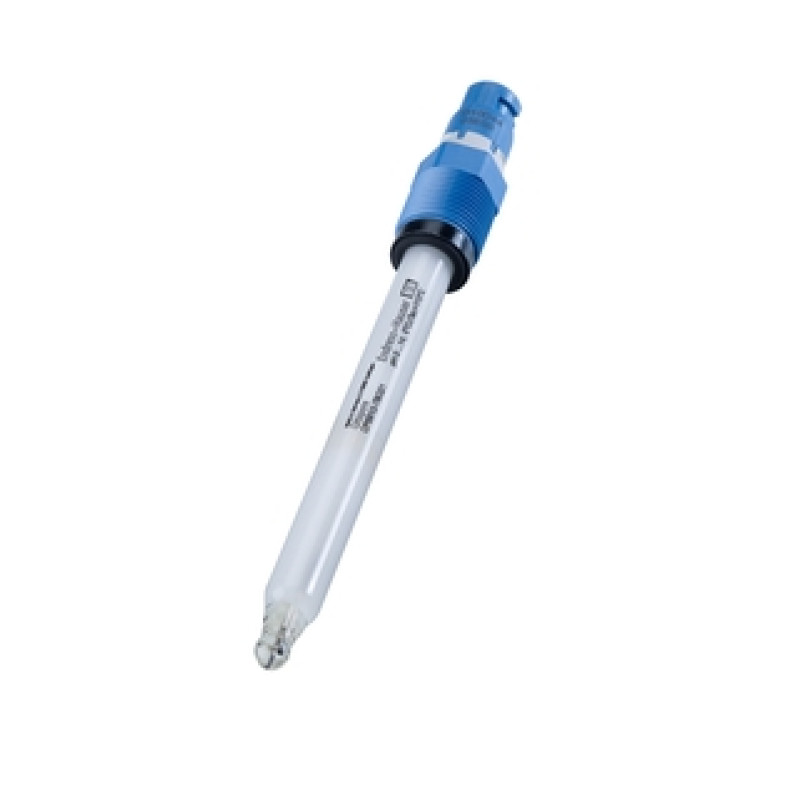

CPS91D Orbipore Digital pH sensor
- Brand: EH
- Product Code: CPS91D
- Availability: In Stock
-
1,477.44€
- Ex Tax: 1,231.20€
-
Measuring principle
Potentiometric
-
Application
Chemical processes, pulp and paper, flue gas cleaning, contaminated media
-
Characteristic
Analog, digital pH electrodes
Open aperture for contaminated media,
optionally integrated temperature sensor -
Measurement range
0 to 14 pH
-
Measuring principle
Open aperture, double gel reference
-
Design
All shaft lengths with temperature sensor
Advanced gel technology
Digital electrode with Memosens technology -
Material
Glass
-
Dimension
Diameter: 12 mm (0.47 inch)
Shaft lengths: 120, 225, 360 and 425 mm
(4.72, 8.86, 14.17 and 16.73 inch) -
Process temperature
0 to 110 °C (32 to 230 °F)
-
Process pressure
1 to 14 bar (15 to 203 psi)
-
Temperature sensor
Optional with integrated Pt100 or Pt1000
-
Ex certification
ATEX, FM
-
Connection
Inductive, contactless connection head with Memosens technology
-
Ingress protection
IP68
