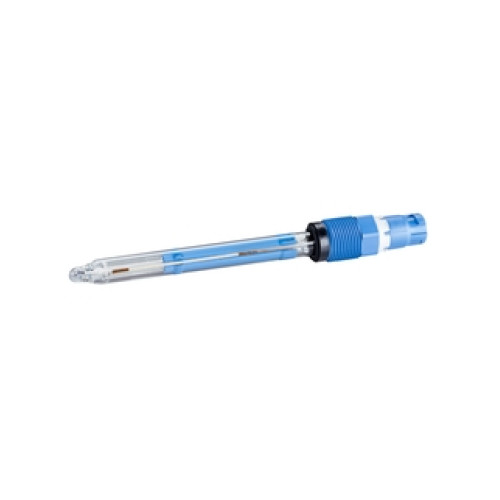

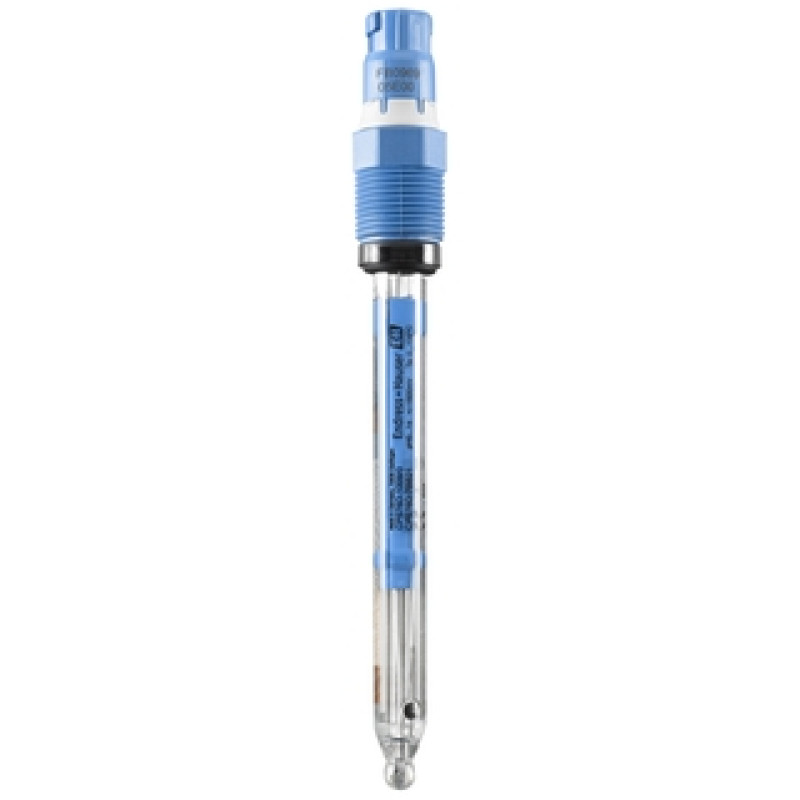

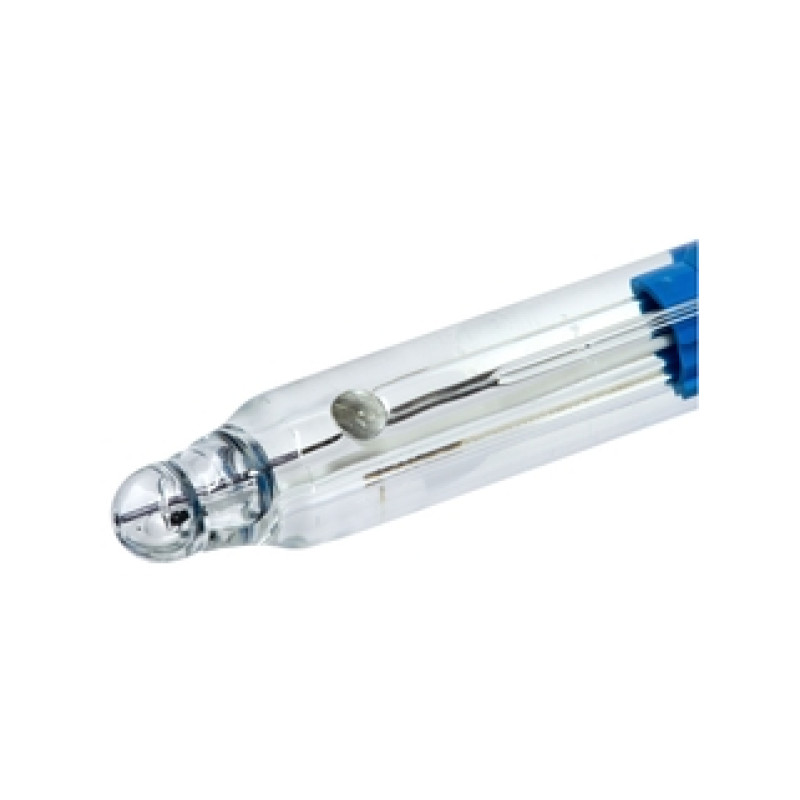

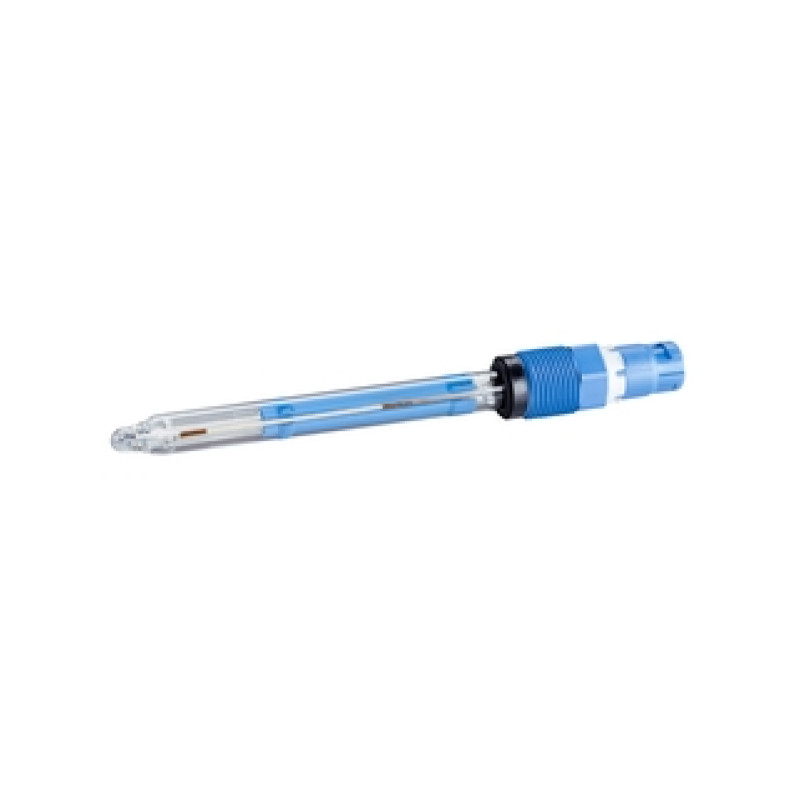

CPS76D Memosens Digital combined pH/ORP sensor
- Brand: EH
- Product Code: CPS76D
- Availability: In Stock
-
2,018.88€
- Ex Tax: 1,682.40€
-
Measuring principle
Potentiometric
-
Application
Hygienic and sterile applications, process
-
Characteristic
CIP/SIP and autoclavable - high accuracy - biocompatibility of the gel inside - version upside-down installation available - pressurized reference (6 bar)
Pt-disc as additional ORP element.
rH measurment and control of the reference impedance. -
Measurement range
pH 0-14
-
Measuring principle
- ceramic diaphragm - Ion trap
-
Design
- All shaft lengths with temperature sensor - advanced gel technology - digital electrode with Memosens technology
-
Material
glass / ceramic
-
Dimension
Diameter: 12 mm (0.46 inch)
Shaft lengths: 120, 225, 360 and 425 mm
(4.68, 8.77, 14.04 and 16,57 inch) -
Process temperature
-15°C ... 140°C
(5°F - 284°F) -
Process pressure
max. 13 bar
(188 psi)depends on selected version -
Temperature sensor
NTC 30k
-
Connection
Inductive, digital connection head with Memosens technology.
-
Ingress protection
IP68
