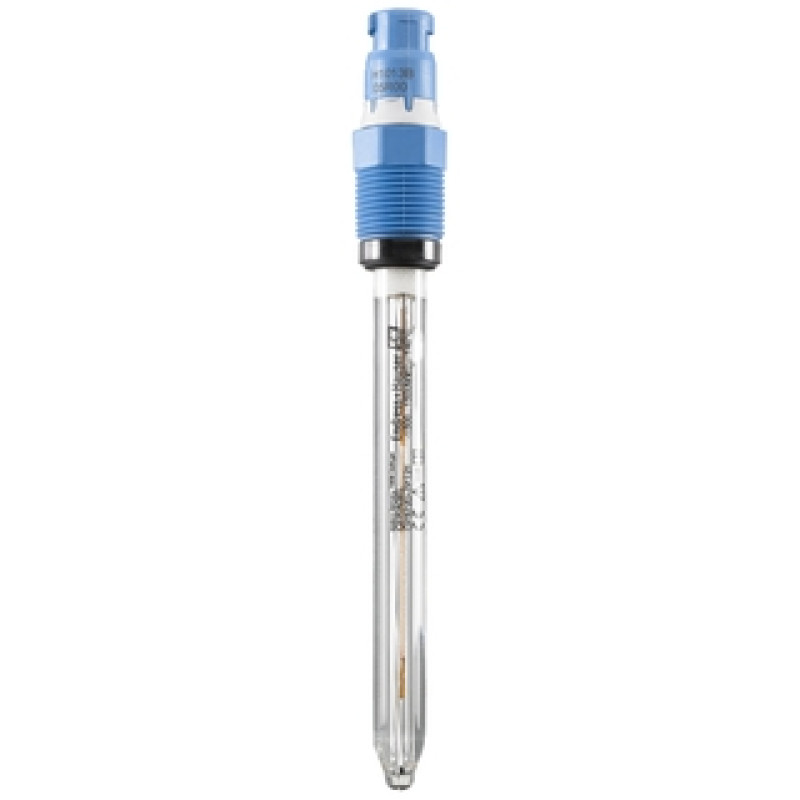

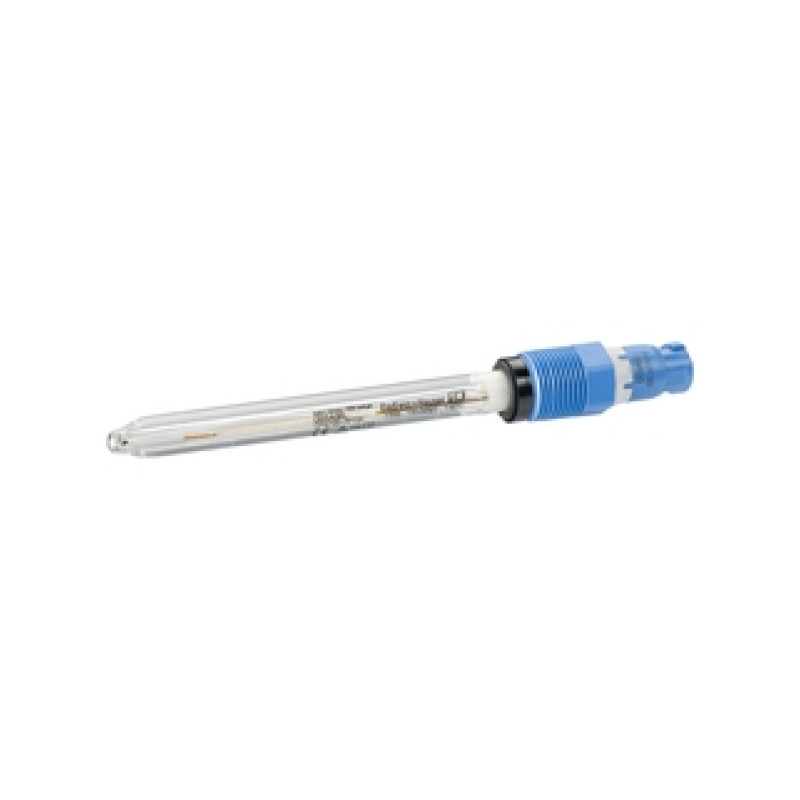

CPS72D Ceragel Digital ORP sensor
- Brand: EH
- Product Code: CPS72D
- Availability: In Stock
-
1,527.84€
- Ex Tax: 1,273.20€
-
Measuring principle
Sensor ORP / Redox
-
Application
- Hygiene and sterile applications.- Pharmaceuticals, biotechnology, fermenters, contaminating media.
-
Characteristic
- Digital electrode with Memosens-Technology.- Gel-compact-electrode with ceramic diaphragm.- Platinum-cap- CIP/SIP and autoclavable- high accuracy
-
Measurement range
-1500mV - +1500mV
-
Measuring principle
- ceramic diaphragm- double chamber and double gel reference- Platinum-ring
-
Dimension
Diameter : 12mmShaft length : 120,225,360mm
-
Process temperature
-15°C - 140°C
-
Process pressure
max. 16bar
-
Ex certification
ATEX
FM
CSA -
Connection
Inductive transmission of digital measuring signals.
-
Ingress protection
IP68
-
Additional certifications
EHEDG
