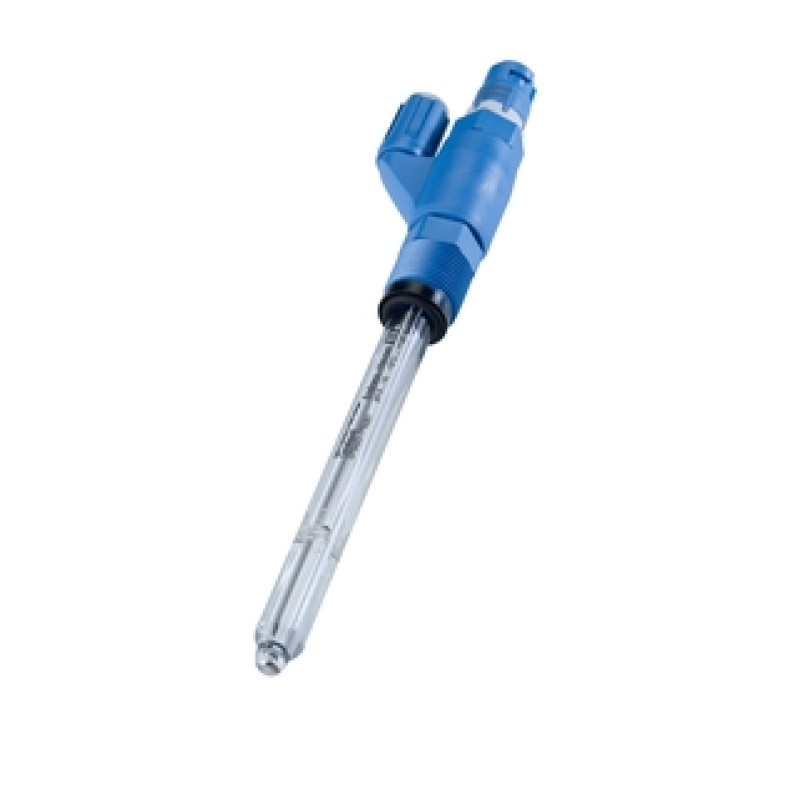

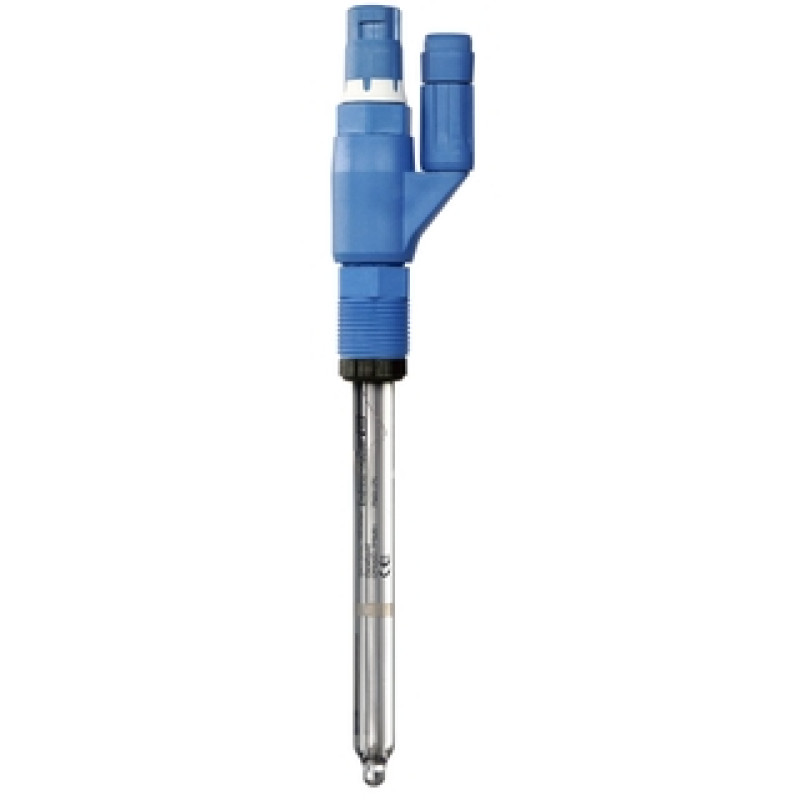

CPS42D Ceraliquid Digital ORP sensor
- Brand: EH
- Product Code: CPS42D
- Availability: In Stock
-
1,586.88€
- Ex Tax: 1,322.40€
Measuring principle
Sensor ORP / Redox
Application
- Special applications with high requirements with regard to accuracy, speed.- rapidly changing composition of media, highly clogging media, low conductivities.
Characteristic
- Digital electrode with Memosens technology - gel-free, refillable electrolyte - greatest accuracy - can be subject to pressure to prevent clogging
Measurement range
-1500 mV - +1500 mV
Measuring principle
- Liquid filled compact electrode with ceramic diaphragm - platinum ring
Dimension
Diameter: 12 mm
Shaft lengths: 120, 225 mm
Process temperature
-15°C - 130°C
Process pressure
max. 8bar
Ex certification
ATEX
FM
CSA
Connection
Inductive transfer of digital signals.
Ingress protection
IP68
Additional certifications
EHEDG
