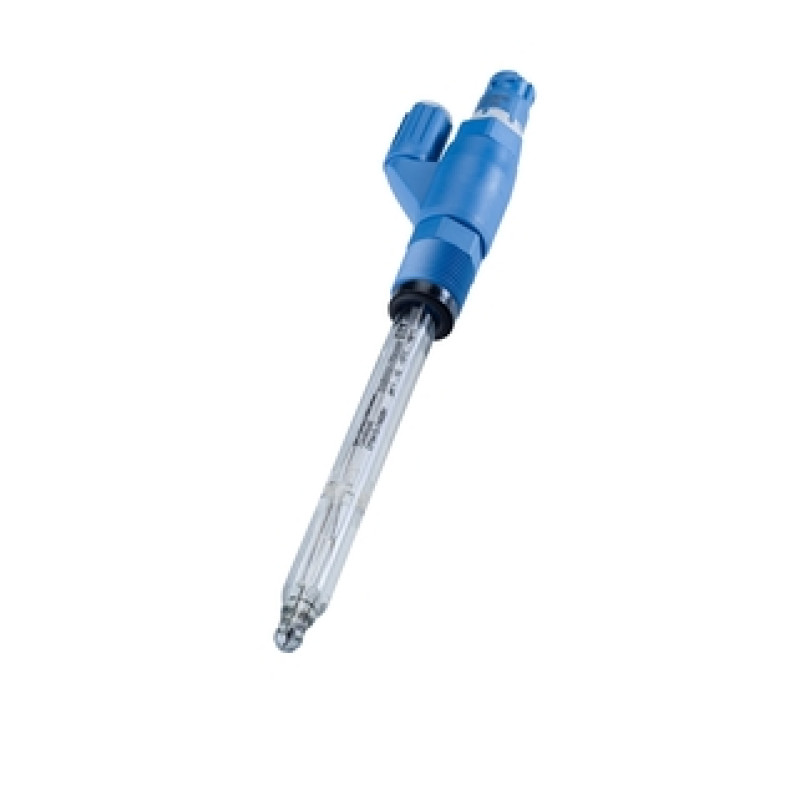

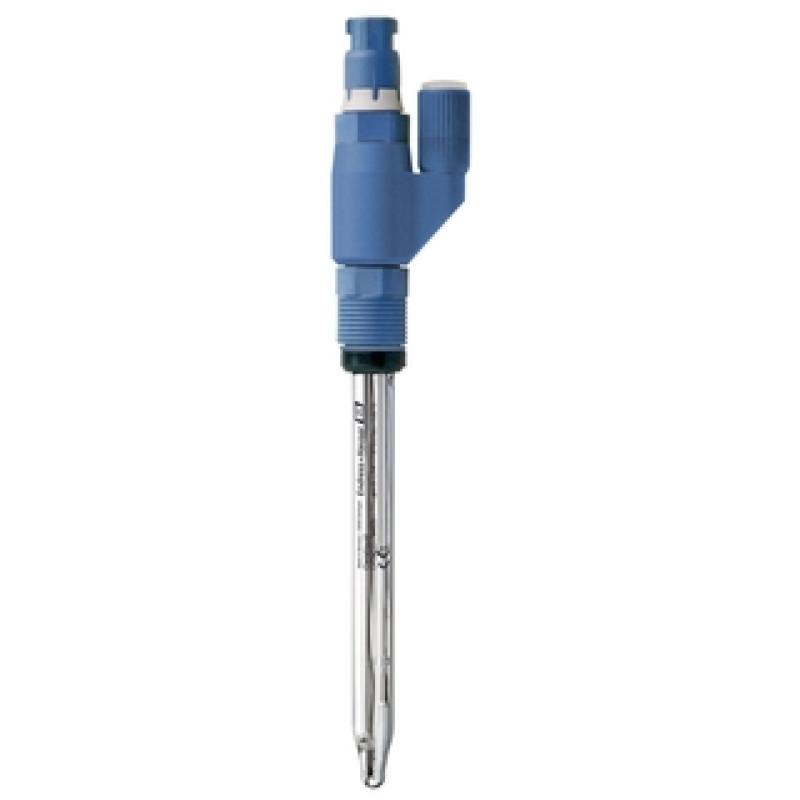

CPS41D Ceraliquid Digital pH sensor

Measuring principle

Potentiometric

Application

Chemical industry, organic chemicals, power stations, food industry, laboratory measurements

Characteristic

Analog or digital pH electrodes for process engineering with ceramic diaphragm

and KCl liquid electrolyte

Measurement range

pH 0 to 14

Measuring principle

Liquid-KCl with ceramic diaphragm

Design

All shaft lengths with temperature sensor

Digital electrode with Memosens technology

Material

Glass and ceramic

Dimension

Diameter: 12 mm (0.47 inch)

Shaft length: 120, 225, 360 and 425 mm

(4.72, 8.86, 14.17 and 16.73 inch)

Process temperature

0 to 135 °C (32 to 275 °F)

Process pressure

1 to 11 bar abs (15 to 160 psi)

Temperature sensor

NTC30k

Ex certification

ATEX, FM, CSA

Connection

Contactless, inductive, digital connection head with Memosens technology

Ingress protection

IP68

Additional certifications

3A, EHEDG
