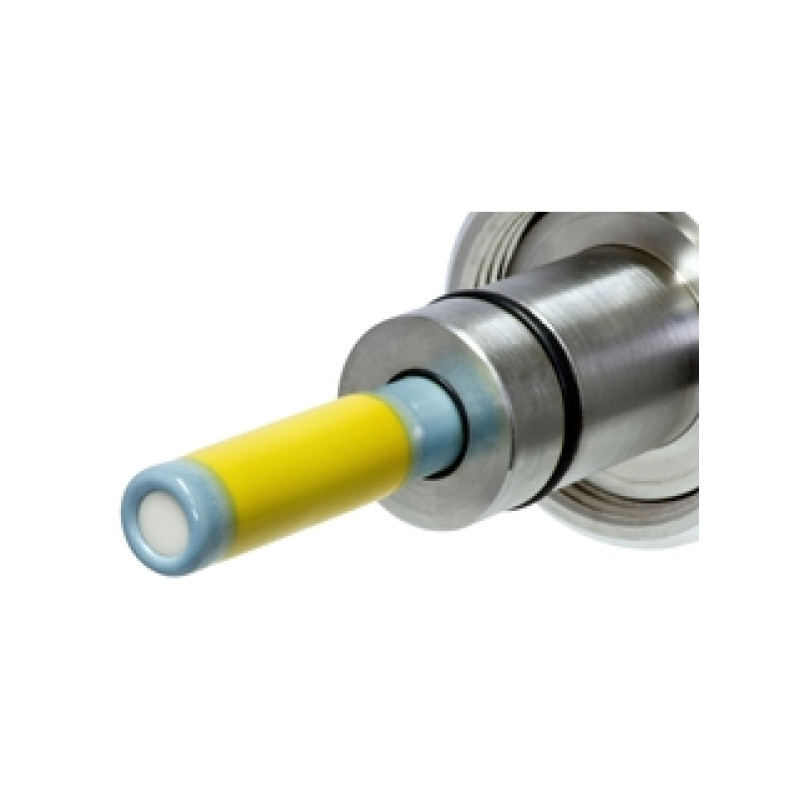

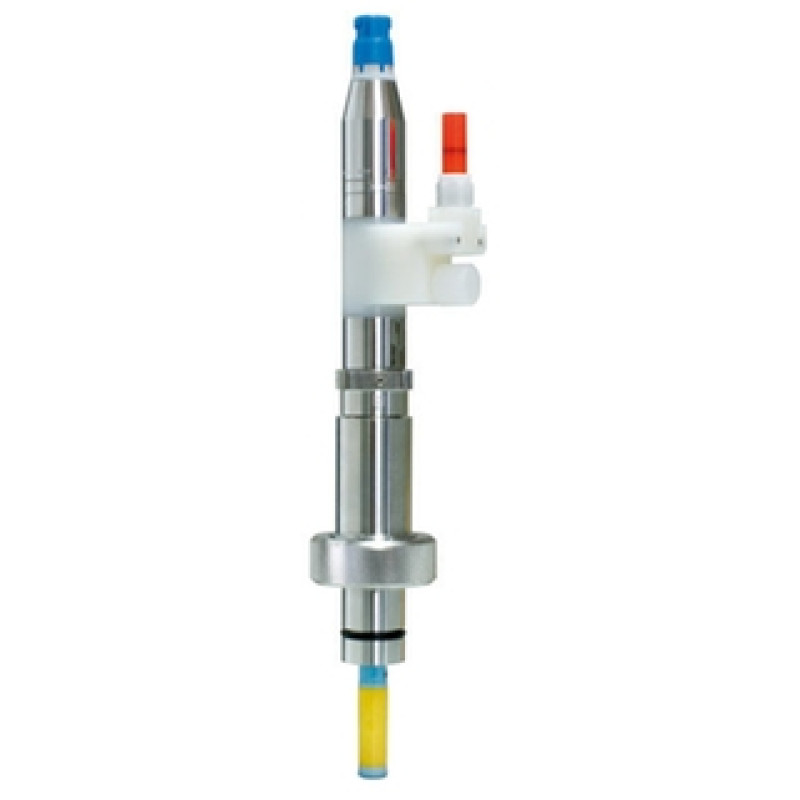

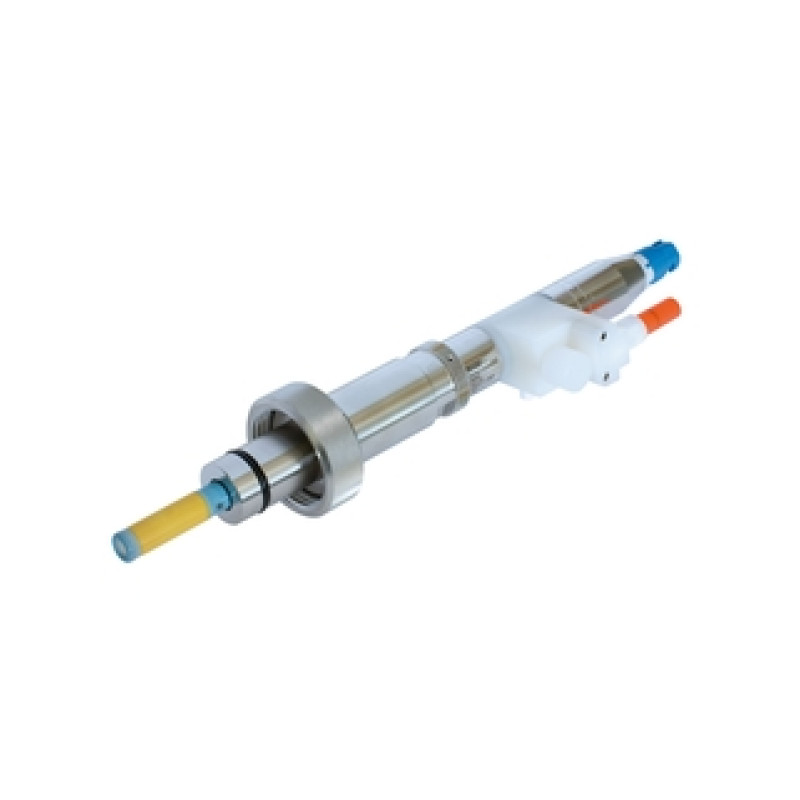

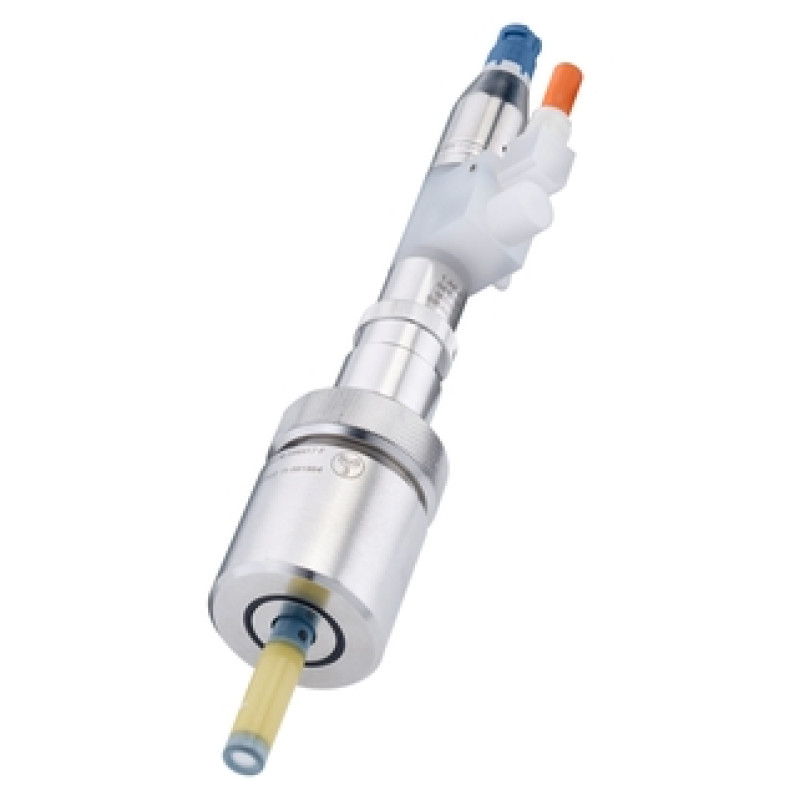

CPS341D Ceramax Digital non-glass pH sensor

Measuring principle

Potentiometric

Application

Food production, beverage production, quality control, pharmaceutical industry, biotechnology

Characteristic

Electrode with pH sensitive enamel and digital Memosens technology

Meets highest demands of measuring accuracy, pressure, temperature, sterility and durability

Measurement range

pH -2 to 14

Measuring principle

Ground diaphragm, liquid KCl-filled reference

Design

Only one shaft length, different hygienic process connectors

Integrated temperature sensor

Material

pH sensitive enamel on a steel carrier

Dimension

Diameter: 12 mm (0.47 inch)

Shaft length: 120 mm (4.72 inch)

Process temperature

0 to 140 °C

(32 to 280 °F)

Process pressure

0 to 7 bar abs

(0 to 101.5 psi)

Temperature sensor

NTC 30KΩ

Connection

Contactless, inductive, digital connection head with Memosens technology
