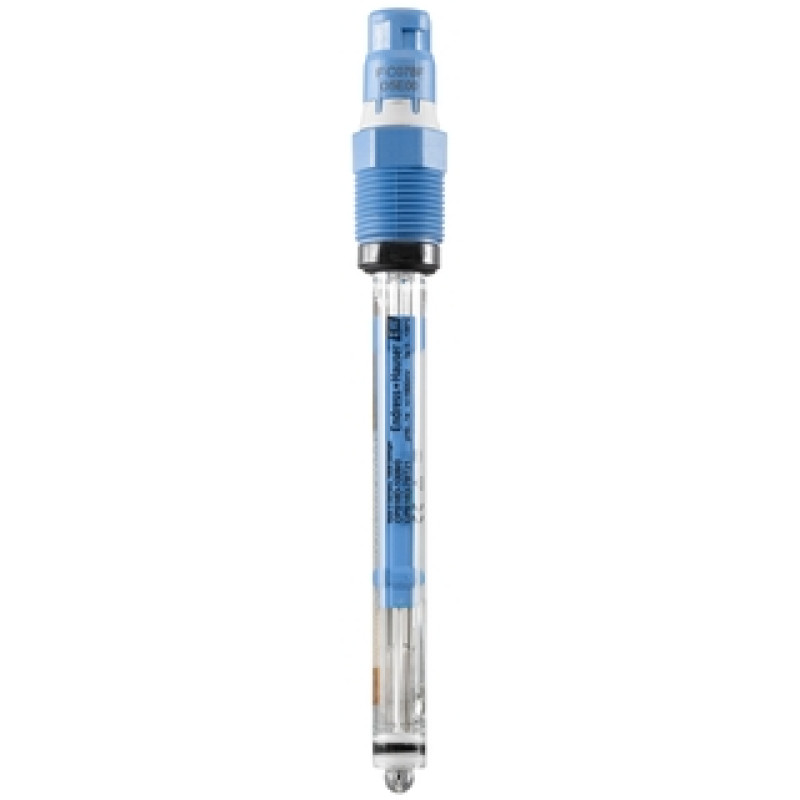

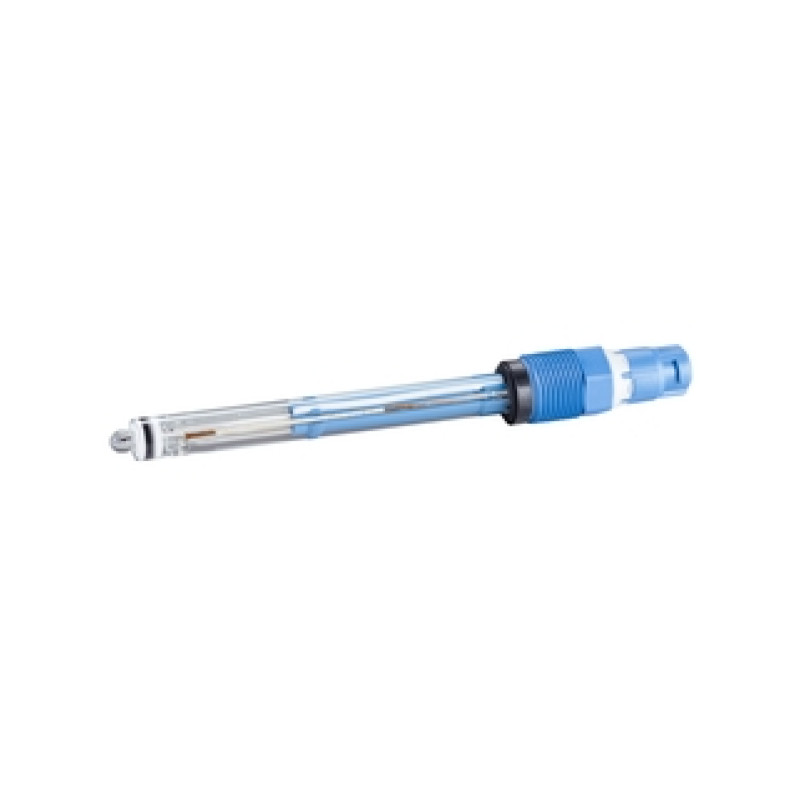

CPS16D Memosens Digital combined pH/ORP sensor

Measuring principle

Potentiometric

Application

Standard applications in process and environment, long-term monitoring, processes with stable conditions, water treatment

Characteristic

Combination of pH and ORP electrode for standard applications in process technology and environmental engineering

Poison-resistant reference with ion trap

Measuring principle

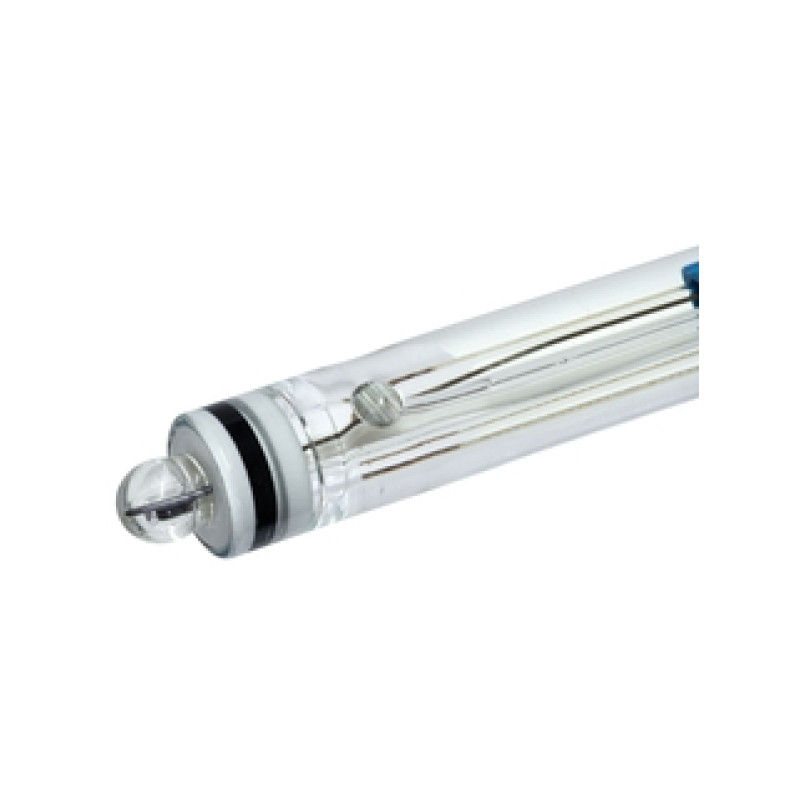

Gel compact electrode with PTFE ring-diaphragm with ion trap

Pt-disc as additional ORP element

rH measurment and control of the reference impedance

Design

All shaft lengths with temperature sensor

Advanced gel technology

Digital electrode with Memosens technology

Material

Glass and PTFE

Dimension

Diameter: 12 mm (0.47 inch)

Shaft Lengths: 120, 225 and 360 mm

(4.72, 8.86 and 14.17 inch)

Process temperature

0 to 135 °C (32 to 275 °F)

Process pressure

1 to 17 bar (15 to 246 psi)

Temperature sensor

NTC 30KΩ

Connection

Inductive, digital connection head with Memosens technology

Ingress protection

IP68
