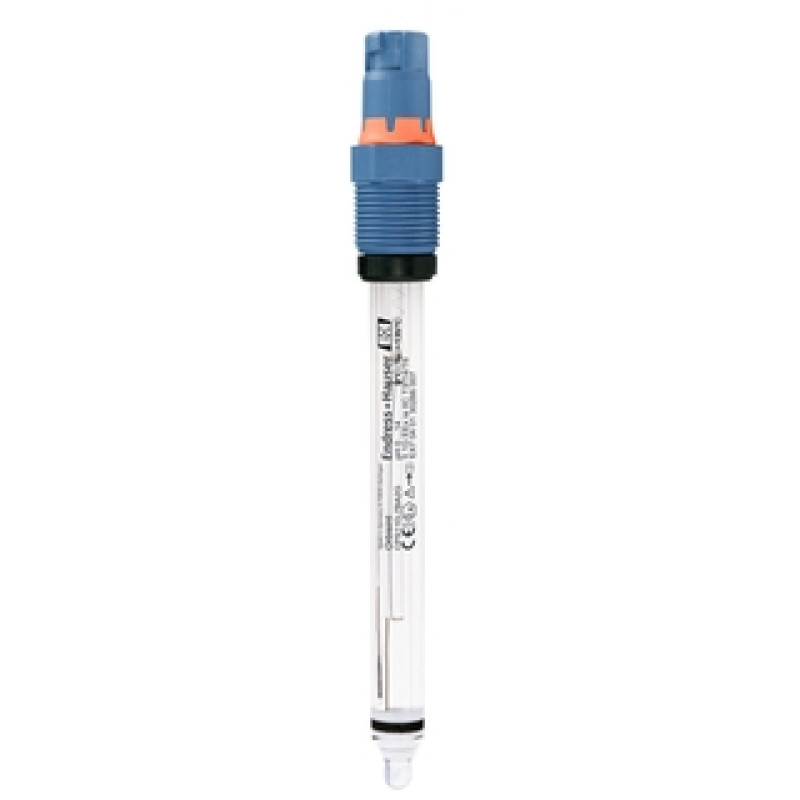

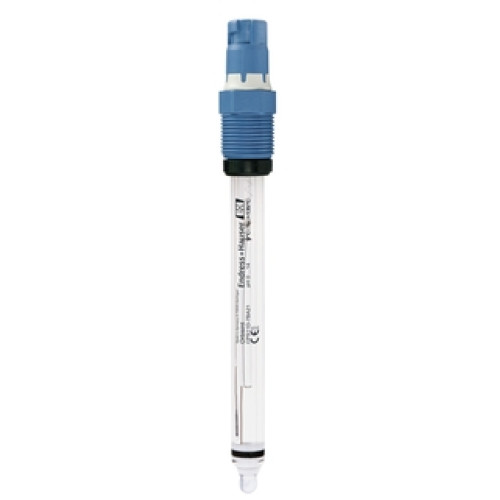

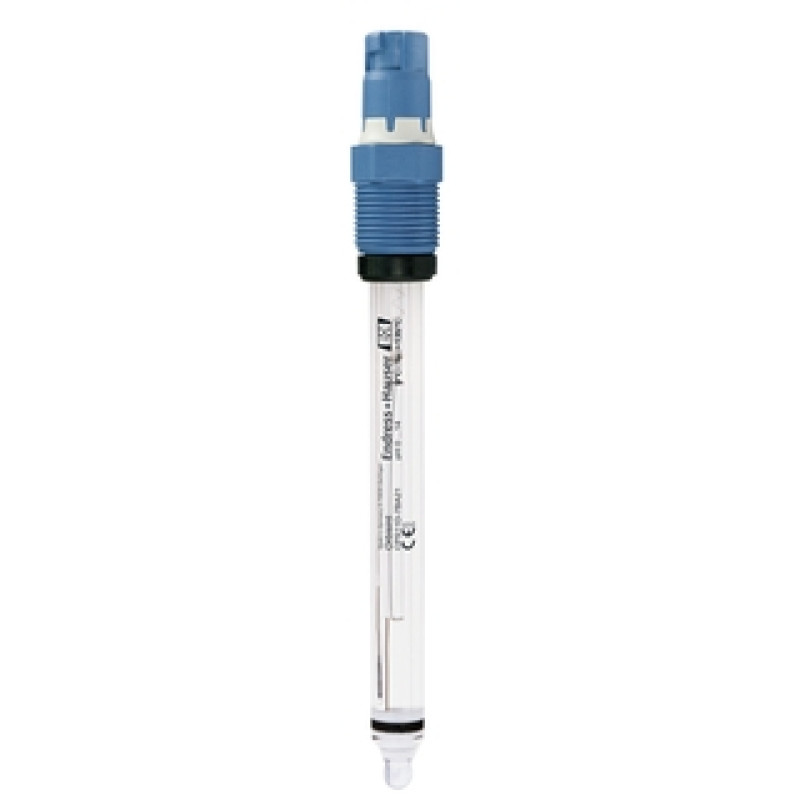

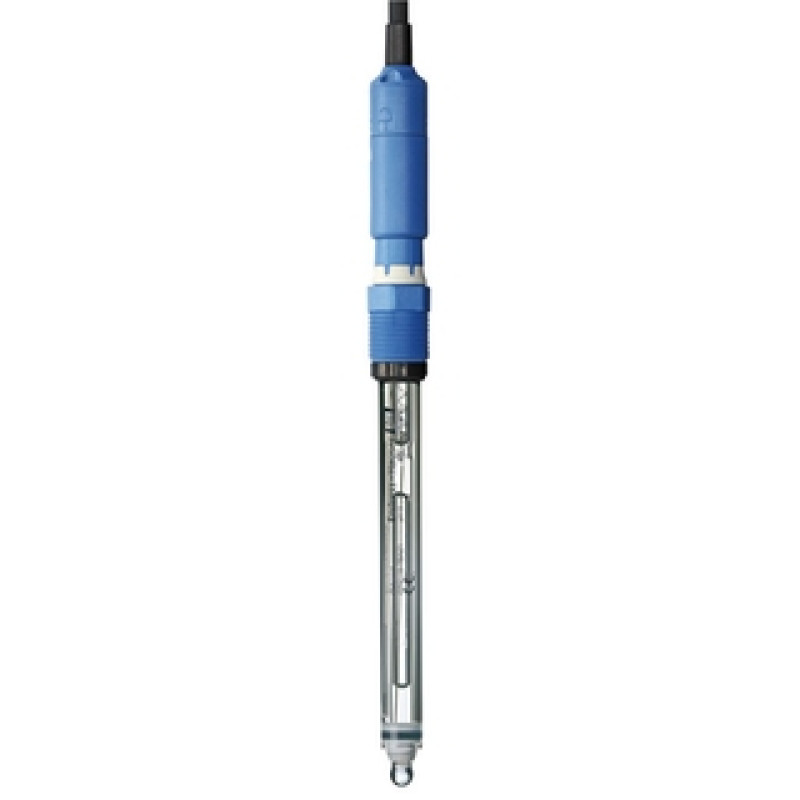

CPS11D Orbisint Digital pH sensor

Measuring principle

Potentiometric

Application

Long-term monitoring, processes with little change

Water and wastewater treatment

Characteristic

Analog, digital pH electrodes for standard applications in process and environmental technology

Dirt-repellent PTFE diaphragm, built-in temperature sensor

Measurement range

pH 0 to 14

Measuring principle

Gel compact electrode with PTFE ring-diaphragm

Design

All shaft lengths with temperature sensor

Advanced gel technology

Digital electrode with Memosens technology

Material

Glass and PTFE

Dimension

Diameter: 12 mm (0.47 inch)

Shaft length: 120, 225 and 360 mm

(4.72, 8.86 and 14.17 inch)

Process temperature

0 to 135 °C (32 to 275 °F)

Process pressure

1 to 17 bar (15 to 246 psi)

Temperature sensor

NTC 30k

Ex certification

ATEX, FM, CSA, NEPSI

Connection

Inductive, digital connection head with Memosens technology

Ingress protection

IP68

Additional certifications

Also available as SIL version
