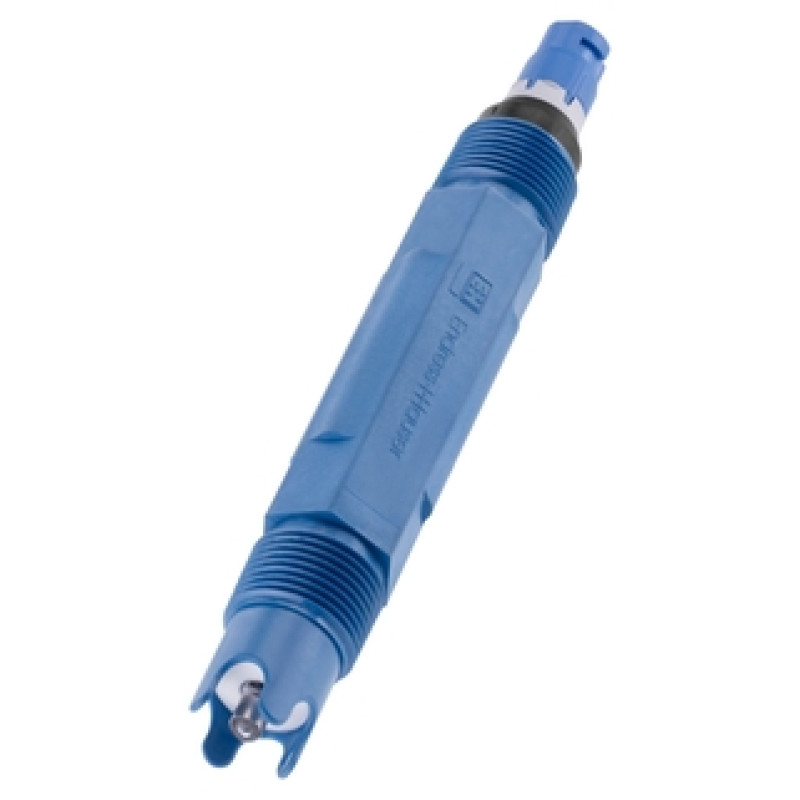

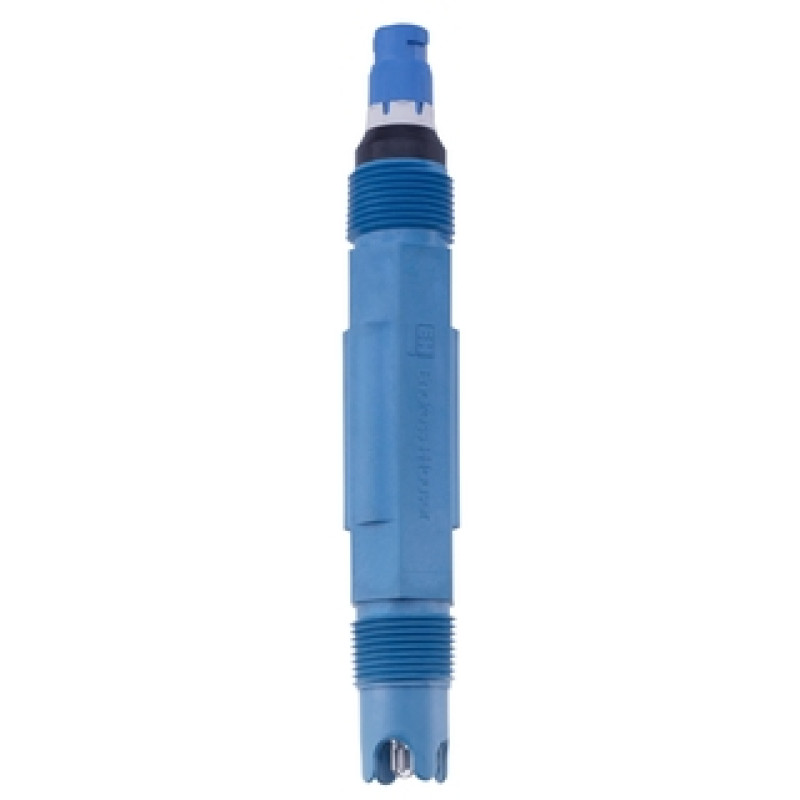

CPF82D Orbipac Digital ORP sensor

Measuring principle

Sensor ORP / Redox

Application

Flotation, leaching, neutralization, outlet monitoring

Characteristic

Resistent against electrolyte poisoning and dirt repellent gel-electrode including process connection NPT 3/4"

Measurement range

-1500mV to +1500mV

Measuring principle

Gel-compact electrode with double chamber reference system, potassium nitrate bridge electrolyte and PTFE-diaphragm, platinum ring

Design

Compact electrode in PPS housing with NPT3/4" process connection

Material

Housing: PPS

ORP electrode: platinum ring

Double chamber reference system: KNO3 and KCl/AgCl

Dimension

Diameter: 22 mm (0.87 inch)

Length: 150 mm (5.91 inch)

Process temperature

0 to 80 °C (32 to 170 °F)

Process pressure

1 to 10 bar abs at 80 °C

(15 to 145 psi abs at 176 °F)

Temperature sensor

NTC

Ex certification

(optional) FM IS NI Cl. I Div.1&2, Groups A-D

Connection

Process connection: NPT 3/4"

Memosens plug

Ingress protection

IP 68
