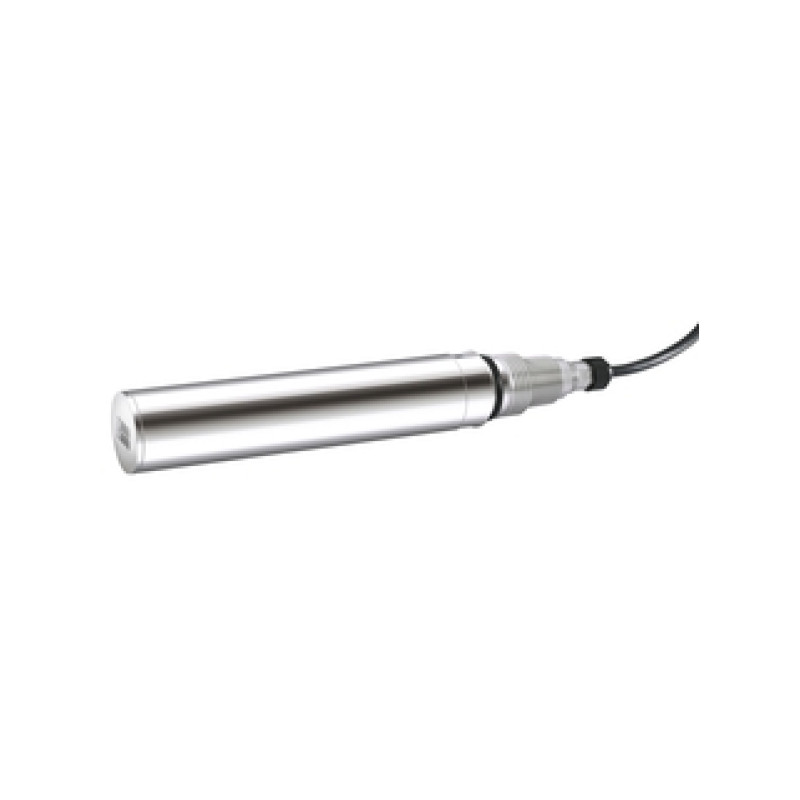

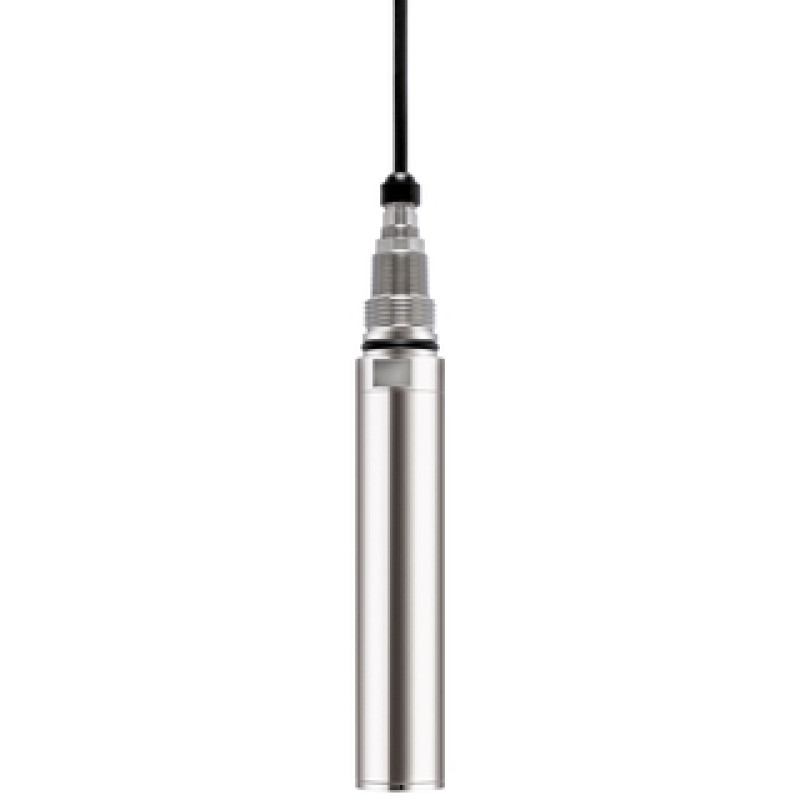

CUS51D Turbimax Suspended solids sensor

Measuring principle

Four beam alternating light

Application

Wastewater, process water and primary water treatment applications.

Turbidity and suspended solids measurement at all stages of the wastewater treatment process and at primary water treatment applications with medium to high turbidities.

Installation

Insitu (immersion in process or retractable holder), extractive with sample and flow cell

Design

40 mm sensor, stainless steel

Dimension

194 mm x 40 mm

Material

Stainless steel 316L

Measurement range

For formazin: 0 to 4000 FNU

Display range up to 9999 FNU

For sludge: 0 to 300 g/L

The achievable measuring range depends very much on the media

Connection

G1, NPT3/4"

Ingress protection

IP68 (1 m / 3.3 ft) water column with 1N KCl during 60 days
