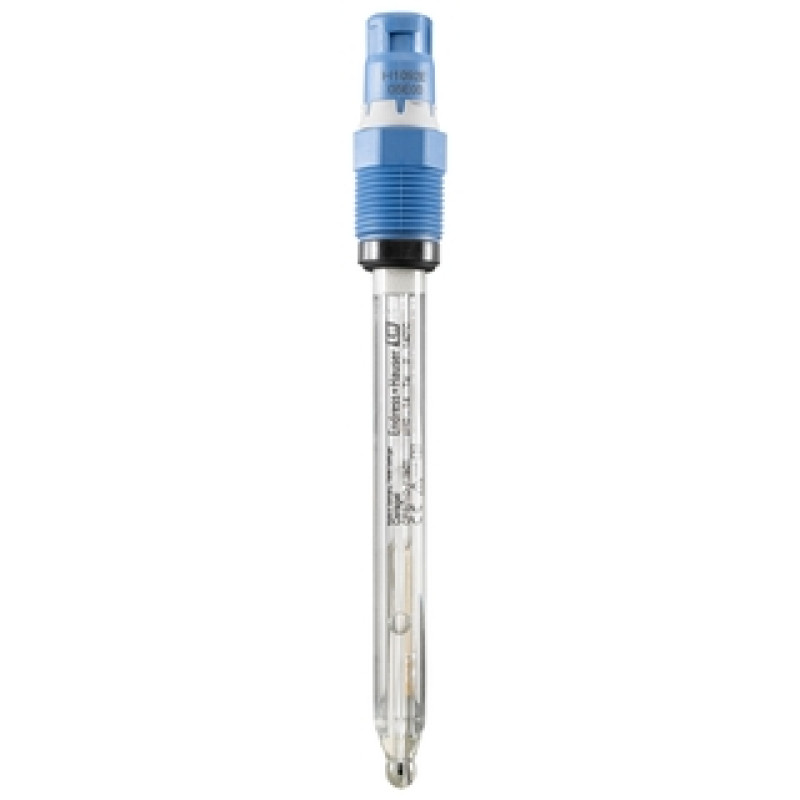

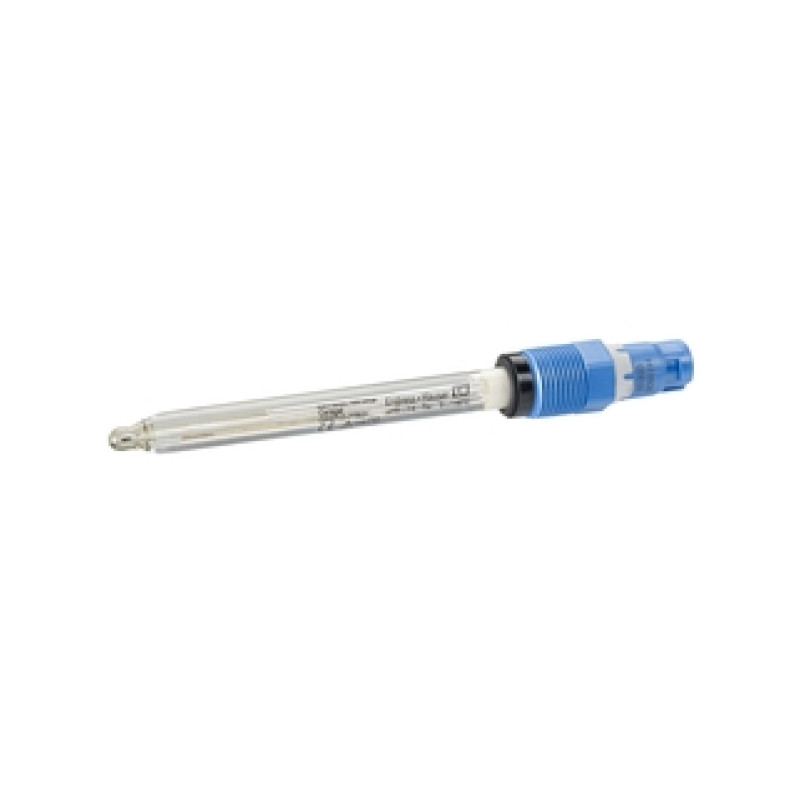

CPS71D Ceragel Digital pH sensor

Measuring principle

Potentiometric

Application

Aggressive chemical and hygienic applications, process

Characteristic

Analog, digital pH single-rod measuring cells

For chemical process, hygienic and sterile applications with an ion trap for poison-resistant reference

Measurement range

pH 0 to 14

Measuring principle

Ceramic diaphragm, ion-trap

Design

All shaft lengths with temperature sensor

Advanced gel technology

Digital electrode with Memosens technology

Material

Glass and ceramic

Dimension

Diameter: 12 mm (0.47 inch)

Shaft lengths: 120, 225, 360 and 425 mm

(4.72, 8.86, 14.2 and 16.7 inch)

Process temperature

0 to 140 °C (32 to 284 °F)

Process pressure

1 to 14 bar (15 to 203 psi)

Temperature sensor

NTC 30k

Ex certification

ATEX, FM, CSA

Connection

Inductive, digital connection head with Memosens technology

Ingress protection

IP68

Additional certifications

3A, biocompatibility
