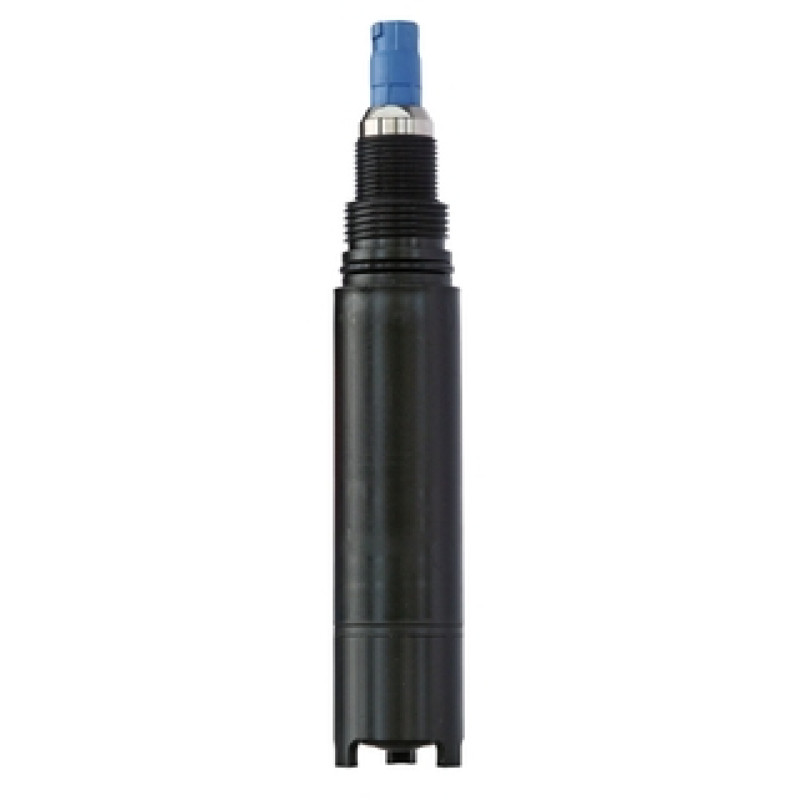

COS51D Oxymax Digital oxygen sensor

Measuring principle

Amperometric oxygen measurement

Application

Aeration tank, river monitoring, water treatment, fish farming, sewage treatment plants

Characteristic

Amperometric 3-electrode longterm-stable sensor to measure dissolved oxygen

Measurement range

0.01 to 100 mg/l

0.00 to 1000 %SAT

0 to 2000 hPa

Measuring principle

Closed membrane covered amperometric 3-electrode system

Design

Digital signal transmission

Calibration datas stored in the sensor

Material

Sensor body: POM

Membrane cap: POM

Dimension

Diameter: 40mm (1.57 inch)

Shaft length: 144 mm (5.67 inch)

Process temperature

-5 to 50 °C

(20 to 120 °F)

Process pressure

max. 10 bar

(max. 145 psi)

Connection

Memosens connector

Process: G1, NPT 3/4"
