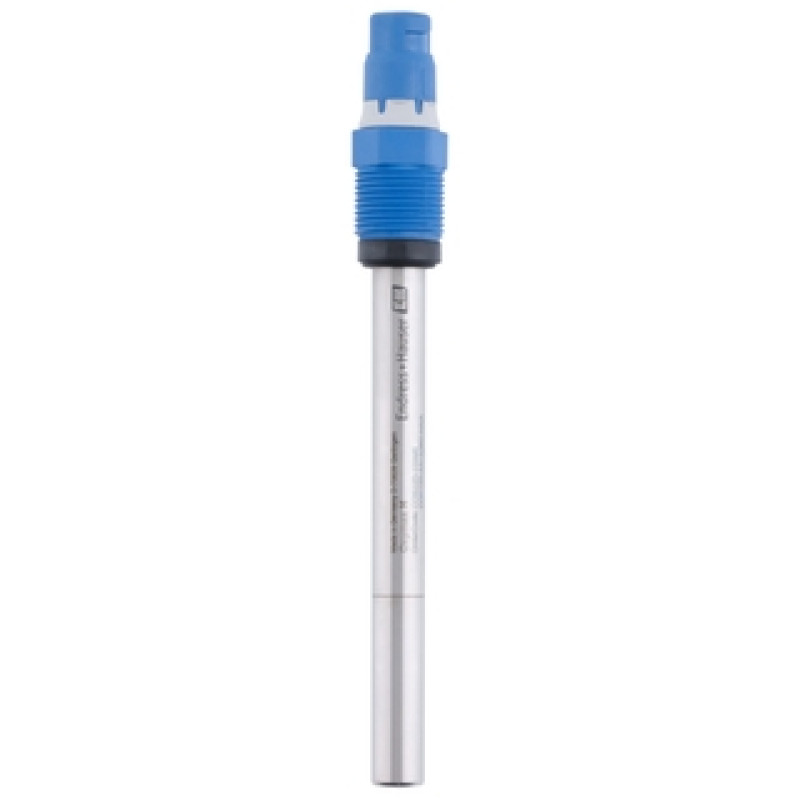

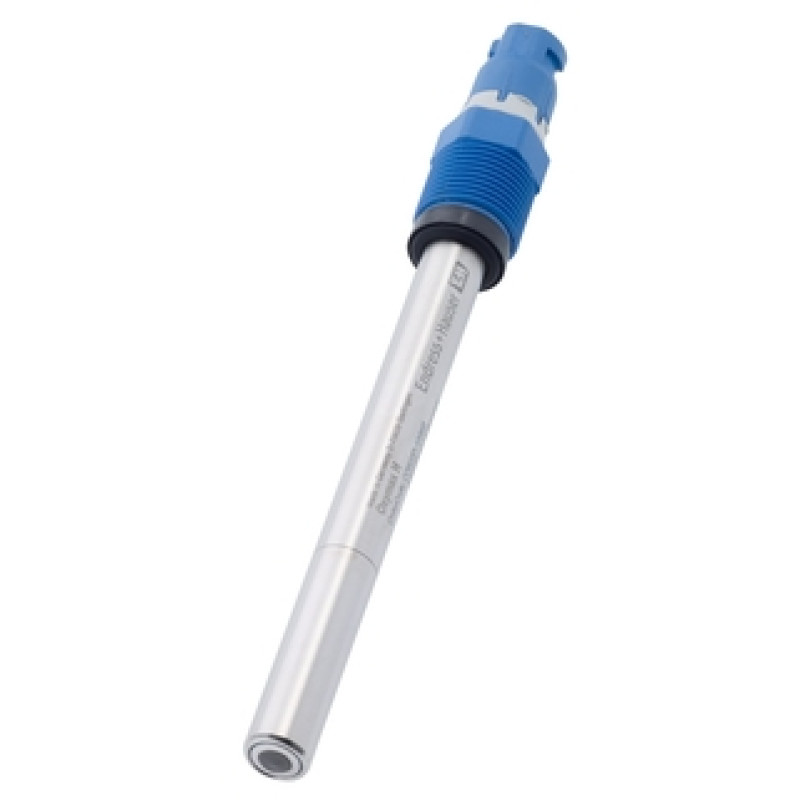

COS22D Oxymax Digital oxygen sensor

Measuring principle

Amperometric oxygen measurement

Application

Beverage, pharmaceutics, biotechnology, water treatment, process, chemical, inertization

Installation

Standard process connection Pg 13.5

Installation in standard pH assemblies possible

Characteristic

Digital or analog sensor for long-term stable oxygen measurement for frequent sterilization and autoclaving

CO2 compatible trace sensor for the beverage industry

Trace sensor in the power plant sector

Measurement range

0.001 to 20 mg/l

0 to 200 %SAT

0 to 400 hPa

Measuring principle

Amperometric measurement of oxygen

Design

Membrane-covered 2-electrode oxygen sensor with teflon-membrane, stainless steel sensor

Material

Sensor body: stainless steel 1.4435

Membrane: PTFE coated stainless steel net with a silicone coating

Dimension

Diameter: 12 mm (0.47 inch)

Shaft length: 120, 225, 360 and 420 mm

(4.72, 8.86, 14.2 and 16.5 inch)

Process temperature

-5 to 135 °C (23 to 275 °F)

Process pressure

1 to 12 bar abs (14.5 to 174 psi)

Temperature sensor

Integrated NTC temperature sensor

Connection

Memosens-connection head

Additional certifications

Material certification 3.1

EHEDG Type EL Class I
