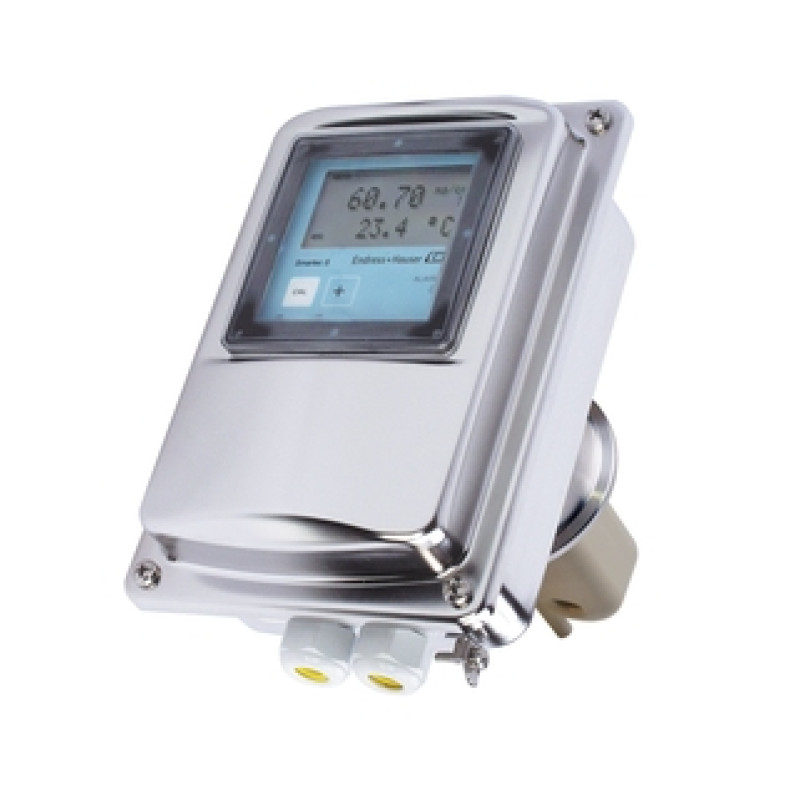

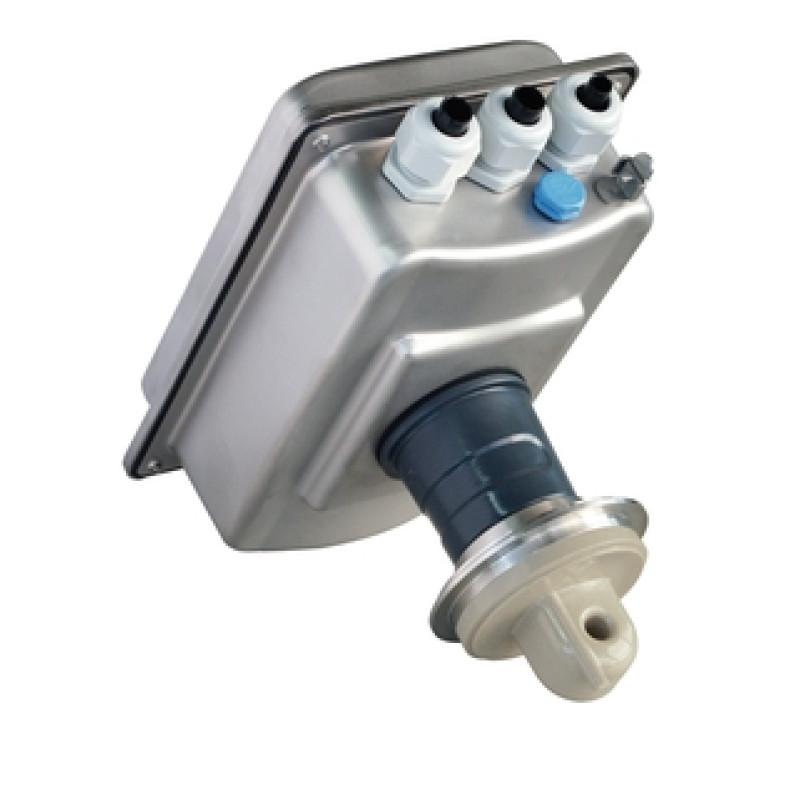

CLD134 Smartec Conductivity compact device

Measuring principle

Inductive

Application

Food, beverage, dairies, breweries and pharmaceutical industries, biotechnology

Characteristic

Specifically intended for use in hygienic applications and especially suitable for following applications:

Phase separation, control of CIP, concentration control, product monitoring, leakage monitoring

Measurement range

100 µS/cm to 2000 mS/cm

Cell constant k : 6.3 1/cm

Measuring principle

Inductive conductivity measurement

Design

Hygienic design with FDA certified virgin PEEK body including all hygienic certifications

Material

In contact with medium: Virgin PEEK

Process temperature

Max. 125 °C (max. 257 °F)

For sterilization: up to 150 °C for max. 60 min

(up to 302 °F for max. 60 min)

Process pressure

12 bar abs up to 90 °C

(174 psi abs up to 194 °F)

Temperature sensor

Pt 1000

Connection

Dairy pipe, aseptic-fitting, Clamp ISO 2852, SMS-2", Varivent N DN 40-125, Neumo Biocontrol D50

Ingress protection

IP67

Output / communication

Conductivity, concentration and temperature. 0/4 to 20 mA, HART, Profibus

Additional certifications

FDA, EHEDG, 3A

Biological reactivity USP class VI part <87> and <88>

EC Regulation No. 1935/2004
