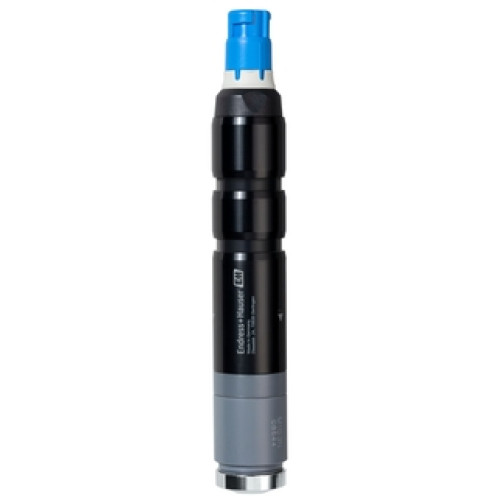

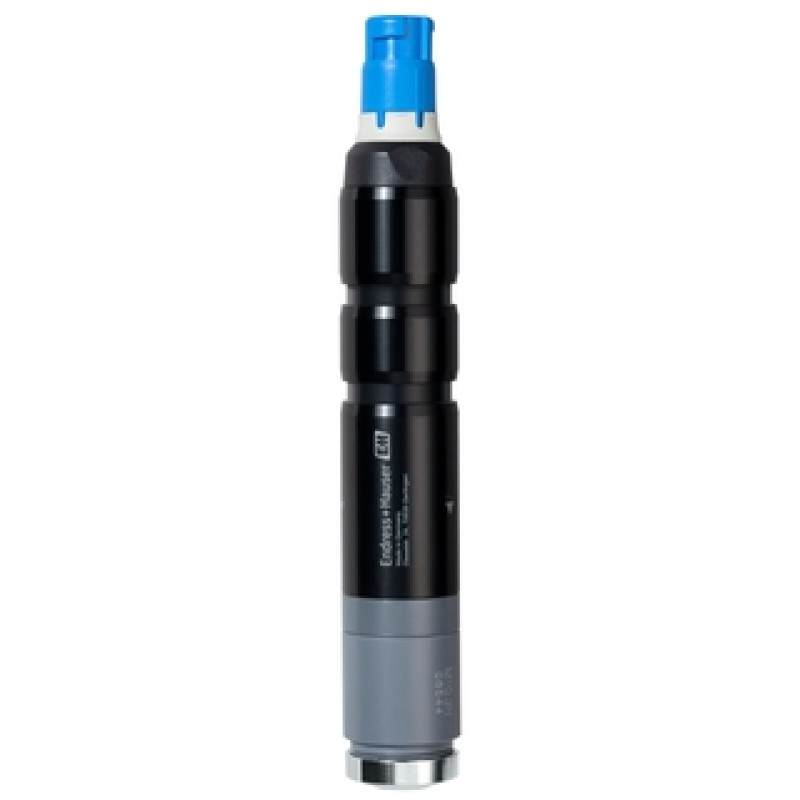

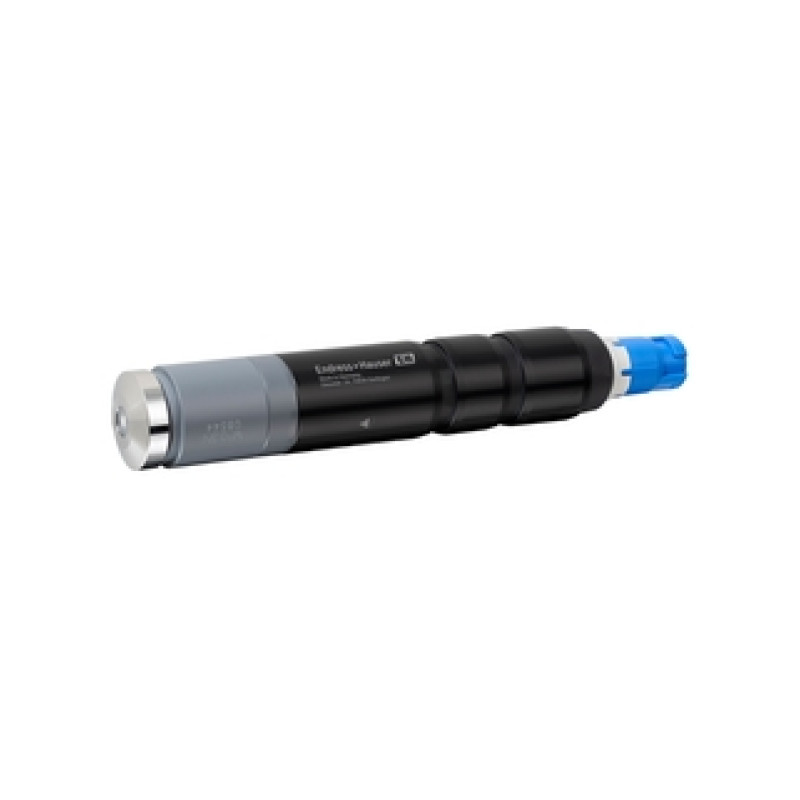

CCS58D Memosens Digital ozone sensor

Measuring principle

Ozone

Application

Drinking water - ensures adequate disinfection

Process water - for hygienic packaging and filling

Wastewater - to ensure safe discharge water

Characteristic

Amperometric measurement of dissolved ozone

Measurement range

0 to 2 mg/l

Measuring method

- closed 2 electrode system

- conversion of ozone into a signal current in nA

- signal current is proportional to the concentration of ozone

- the measurement is not pH dependent

Design

- exchangeable, electrolyte-filled membrane cap

- working and counter electrode

- adaptable shaft for flexible installation in assemblies

Material

Sensor shaft: PVC

Membrane: Silicone

Membrane cap: PVC

Dimension

Diameter: 25 mm (0.98 in)

Length: 161 mm (6.34 in)

Process temperature

+0 to 45 °C (32 to 110 °F), non freezing

Process pressure

1 bar (14.5 psi), 2 bar (29 psi) absolute

Temperature sensor

10k NTC integrated (Memosens)

Connection

Inductive, digital connection head with Memosens
