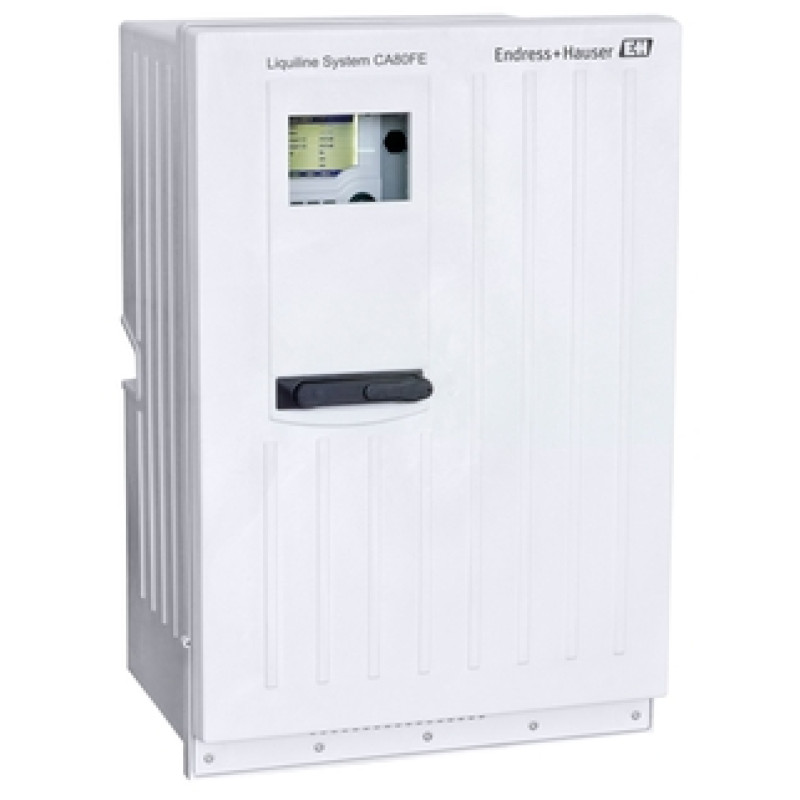

CA80FE Liquiline System Iron analyzer

Measuring principle

Colorimetric

Characteristic

Process analyzer for iron in aqueous solutions

Comply with standard colorimetric measuring principle, ferrozine method

Size

Housing (open version):

793 x 530 x 417 mm

31.22 x 20.87 x 16.42 in

Housing (closed version):

793 x 530 x 463 mm

31.22 x 20.87 x 18.23 in

Housing with base:

1723 x 530 x 463 mm

67.83 x 20.87 x 18.23 in

Design

Open design, cabinet and stand housing

High-Performance plastic ASA-PC, additional stand coated steel

Process temperature

4 to 40 °C (39.2 to 104 °F)

Ambient temperature

5 to 40 °C (41 to 104 °F)

Outdoor version: - 20 to 40 °C (-4 to 104 °F)

Process pressure

At atmospheric pressure, < 0.2 bar

Sample flow rate

Min. 5 ml/min (0.17 fl.oz/min)

Consistency of the sample

Suspended solids content

Turbitity < 50 NTU, aqueous, homogenized

Application

Monitoring of the iron content of potable water, mineral water and source water for industrial processes

Power supply

100 to 120 VAC / 200 to 240 VAC ± 10%

24 VDC ± 10%

50 ± 1 or 60 ± 1,2 Hz

Output / communication

2x 0/4 to 20 mA

Webserver, Modbus, Ethernet/IP, Profibus DP

Input

1 or 2 measuring channel

1 to 4 digital sensor inputs for sensors with Memosens protocol (optional)

Measurement range

0.05 to 2 mg/l Fe

0.1 to 5 mg/l Fe

0.1 to 5 mg/l with dilution function to maximum 2.0 to 100 mg/l Fe

Consumables

Reagents and standard solutions CY80FE for the operation

Regular maintenance is done with the parts of the maintenance kit CAV800
