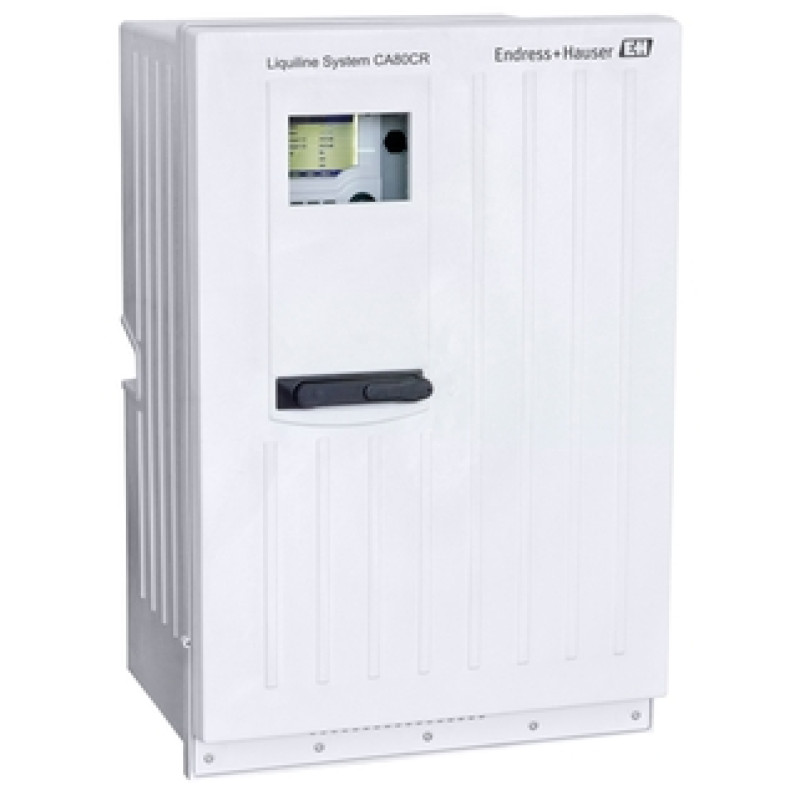

CA80CR Liquiline System Chromate analyzer

Measuring principle

Colorimetric

Characteristic

Analyzer for Chromate (Chrome VI) in aqueous solutions

Size

Housing (open version):

793 x 530 x 417 mm

31.22 x 20.87 x 16.42 in

Housing (closed version):

793 x 530 x 463 mm

31.22 x 20.87 x 18.23 in

Housing with base:

1723 x 530 x 463 mm

67.83 x 20.87 x 18.23 in

Design

Open design, cabinet and stand housing

High-Performance plastic ASA-PC, additional stand coated steel

Process temperature

4 to 40 °C (39 to 104 °F)

Ambient temperature

5 to 40 °C (41 to 104 °F)

Outdoor version: - 20 to 40 °C (-4 to 104 °F)

Process pressure

At atmospheric pressure, < 0.2 bar absolute

Sample flow rate

Min. 5 ml/min (0.17 fl.oz/min)

Consistency of the sample

Suspended solids content

Turbitity < 50 NTU, aqueous, homogenized

Specials

Easy upgrade to measuring station with up to four digital Memosens sensors

Automatic calibration and cleaning

User-configurable measuring, cleaning and calibration intervals

Optional cooling module for longer reagent shelf life

2 channel version optional

User-definable measuring ranges

Modular design for easily extensible functionality

Digital communication for remote access

Application

Limit value monitoring of Chromate in potable water and waste water

Common applications are industrial waste water Monitoring for tanneries and the galvanic industry

Power supply

100 to 120 VAC / 200 to 240 VAC ± 10%

24 VDC ± 10%

50 ± 1 or 60 ± 1,2 Hz

Output / communication

2x 0/4 to 20 mA

Modbus RS485/TCP (optional)

Ethernet (optional)

Alarmrelay

Input

1 or 2 measuring channels

1 to 4 digital sensor inputs for sensors with Memosens protocol (optional)

Measurement range

0,03 to 2.5 mg/l Cr(VI)

0.2 to 5.0 mg/l Cr(VI)

0.2 to 5.0 mg/l with dilution function to maximum 10 to 250 mg/l Cr(VI)

Consumables

Reagents and standard solutions CY80CR as well as cleaner CY800 are necessary for the operation

Regular maintenance is done with the parts of the maintenance kit CAV800
