CA80AL Liquiline System Aluminum analyzer

Measuring principle

Colorimetric

Characteristic

Process analyzer for aluminum in aqueous solutions

Comply with standard colorimetric measuring principle - pyrocatechol violet methot

Size

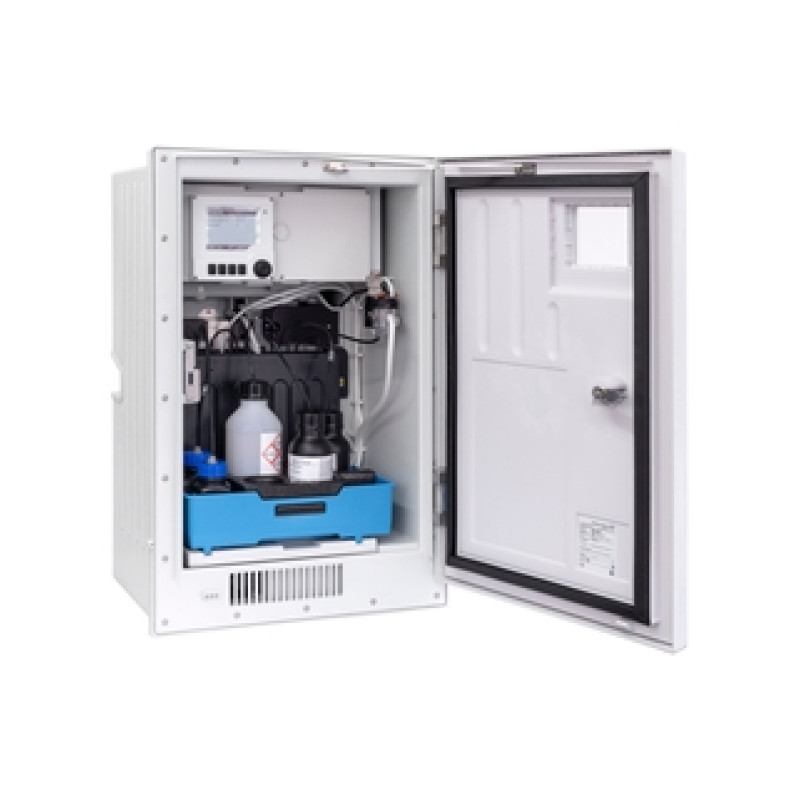

Housing (open version):

793 x 530 x 417 mm

31.22 x 20.87 x 16.42 in

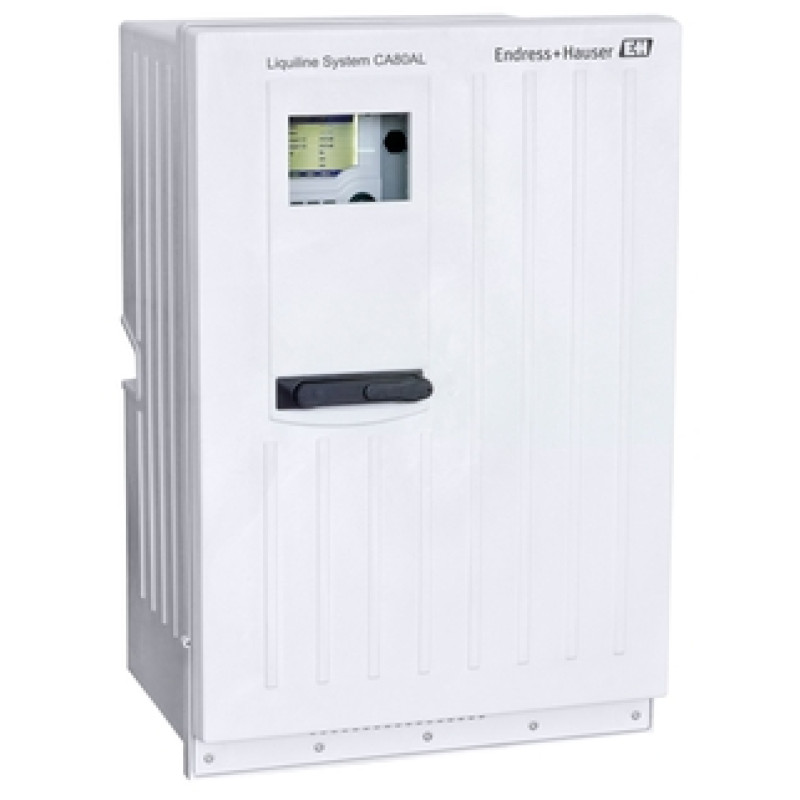

Housing (closed version):

793 x 530 x 463 mm

31.22 x 20.87 x 18.23 in

Housing with base:

1723 x 530 x 463 mm

67.83 x 20.87 x 18.23 in

Design

Open design, cabinet and stand housing

High-Performance plastic ASA-PC, additional stand coated steel

Process temperature

4 ... 40 °C (39.2 ... 104 °F)

Ambient temperature

5 ... 40C ( 41 ... 104F)

Outdoor version: - 20 to 40 °C (-4 to 104 °F)

Process pressure

at atmospheric pressure, < 0.2 bar

Sample flow rate

min. 5ml/min (0,17 fl.oz/min)

Consistency of the sample

low solid content (< 50NTU), aqueous homogeneous

Application

Monitoring of the aluminum content of potable water, mineral water and industrial waste water

Power supply

100 ... 120 VAC / 200 ... 240 VAC ± 10%

24 VDC ± 10%

50 ± 1 oder 60 ± 1,2 Hz

Output / communication

2x 0/4 ... 20 mA

Webserver, Modbus, Ethernet/IP, Profibus DP

Input

1 or 2 measuring channel

1 ... 4 digital sensor inputs for sensors with Memosens protocol (optional)

Measurement range

15 to 1000 µg/l Al

15 to 1000 µg/l with dilution function to maximum 300 to 20 000 µg/l Al

Consumables

Reagents and standard solutions CY80AL as well as cleaner CY800 are necessary for the operation. Regular maintenance is done with the parts of the maintenance kit CAV800.
