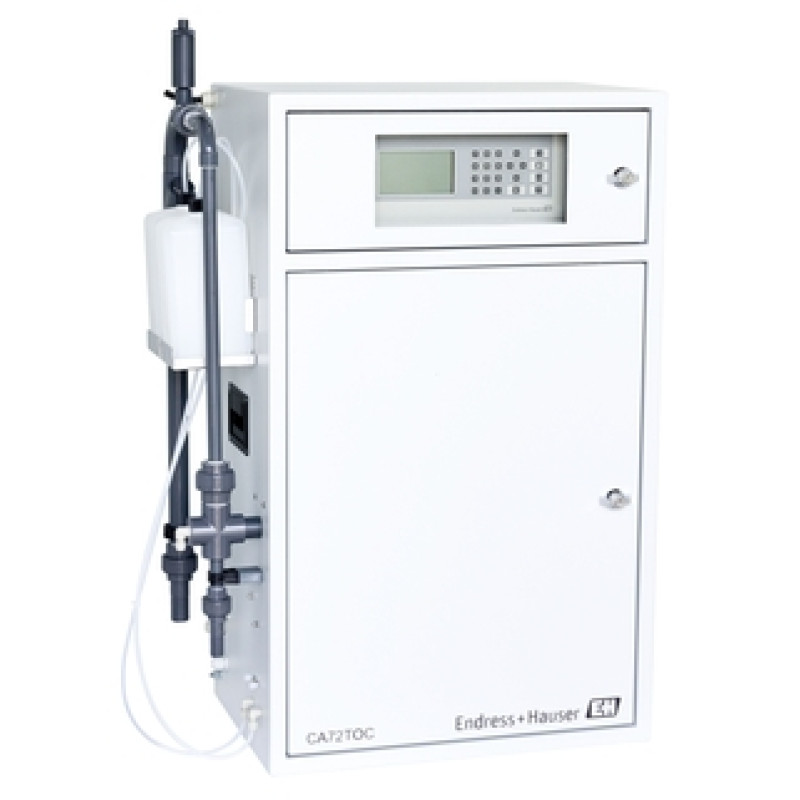

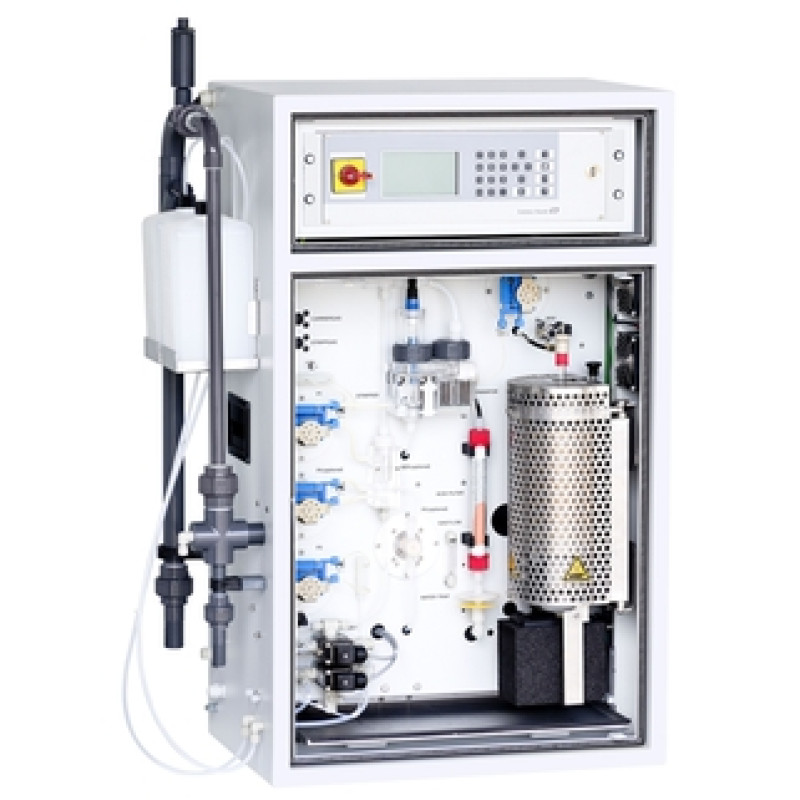

CA72TOC High temperature TOC analyzer

Measuring principle

UV photometric

Characteristic

Analyzer for online-determination of TOC in aqueous media using thermic catalytic combustion

Size

1558 x 785 x 400 mm

61.3 x 30.9 x 15.8 inch

Design

IP54

Process temperature

0 to 40 °C (32 to 104 °F)

Ambient temperature

5 to 35 °C (41 to 95 °F)

Process pressure

Pressure free

Sample flow rate

20 ml/min (0.32 US gal/hr)

Consistency of the sample

Aqueous

Flammable substances are not allowed in ignitable concentrations, in such cases a sample dilution is required

Specials

Heatable Salt Trap

Exchange furnace concept

pH-controlled acid dosage with TIC stripping

Application

Industrial wastewater monitoring

Control of process wastewater

Monitoring of industrial surface water

Recording of the carbon load to control the nutrient dosage

Power supply

115 VAC, 230 VAC, 50/60Hz

Output / communication

0/4 to 20 mA, galvanically separated

Two channel version has an addtional one

RS 232 C, propietary, for data output and remote control (optional)

Input

8 signal inputs 24 V DC, ative, load max. 500 Ohm

Measurement range

0.25 to 600 mg TOC/l

1 to 2400 mg TOC/l

2.5 to 6000 mg TOC/l

5 to 12000 mg TOC/l

With the optional pre-dilution the measuring range will expand by the factor of 20

Consumables

Stripp reagent, KHP or citric acid standard
