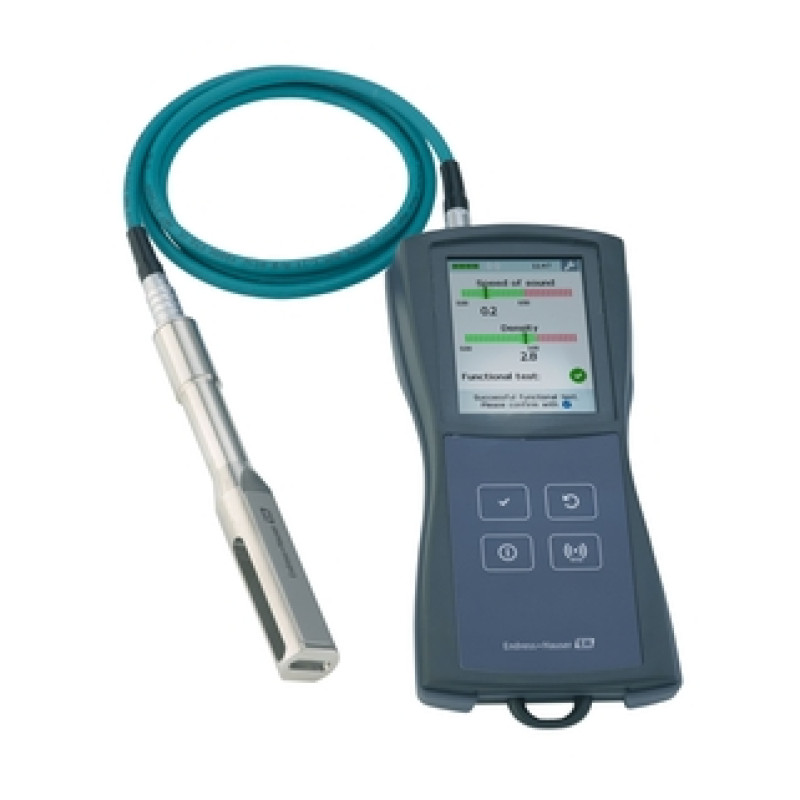

D9TB Teqwave T – Ultrasonic concentration meter

PLEASE ASK FOR PRICE!

Measuring principle

Ultrasonic concentration

Product headline

Smart, mobile measuring device – individually for your process.

Easy, fast and efficient – real-time in situ liquid analysis.

Temporary concentration measurement of liquids at various measuring points in plant and laboratory.

Sensor features

Versatile applications – one device for changing tasks. Highest process safety – reliable metering due to robust, maintenance-free sensor. Cost-saving – surveillance of product quality without sampling.

Insertion length: 180 mm (7 in). Accurate and independent of flow profile.

Transmitter features

Customized usage – innovative application concept, expendable for changing measuring tasks. Fast, straightforward operation without metrology knowledge – pre-configured measuring points. Efficient plant monitoring – up to 8 hours of mobile operation without external power supply.

Robust, portable transmitter with Li-ion battery 2300 mAh. Large color display with 4 operating keys. Integrated data storage for max. 3000 measured values.

Nominal diameter range

Insertion length: 180 mm (7")

Measured variables

Concentration

Temperature

Sound velocity

Max. measurement error

Density: ±0.01g/cm³

Temperature: ±0.5K

Sound velocity: 2m/s

Measuring range

Concentration According to concentration app data sheet, maximum 0 to 100 %

Sound velocity 600 to 2000 m/s

Temperature concentration app data sheet, maximum 0 to +100 °C (32 to +212 °F)

Density 0.7 to 1.5 g/cm³

Medium temperature range

0 to 100 °C (32 to 212 °F)

Ambient temperature range

Sensor: 0 to 50 °C (32 to 122 °F)

Transmitter: 0 to 40 °C (32 to 104 °F)

Sensor housing material

Stainless steel V4A 1.4571

Degree of protection

Sensor: IP68 (with cable plugged in), IP66 (without cable connector)

Transmitter: IP65

Display/Operation

3.5" TFT display with 4 operating keys

Power supply

Lithium-ion battery (2300 mAh capacity)

Hazardous area approvals

Non-hazardous area

UK; Non-hazardous area

Product safety

CE, C-Tick
