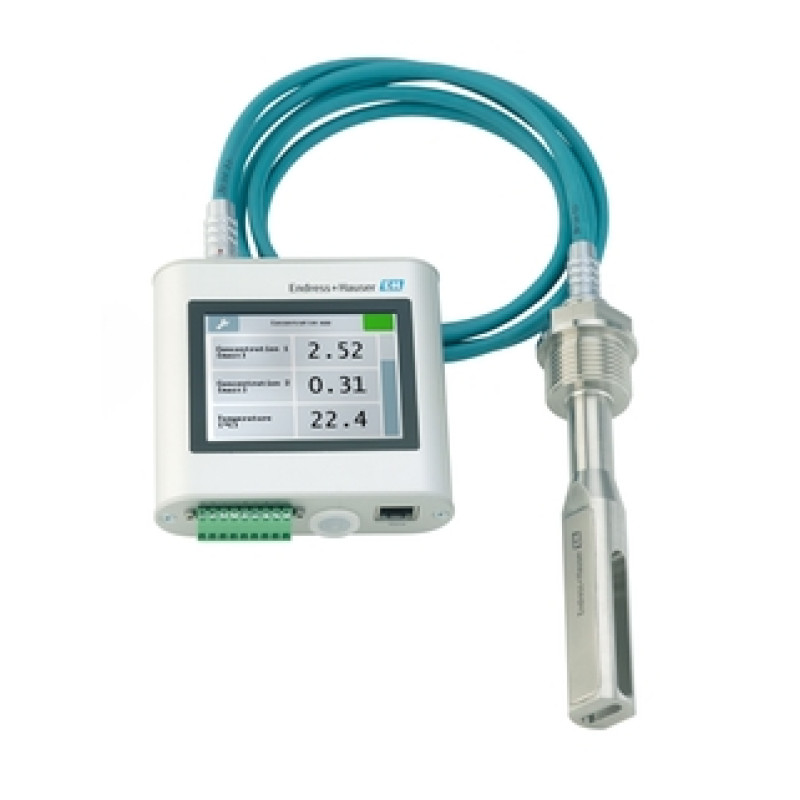

D9IB Teqwave I – Ultrasonic concentration meter

PLEASE ASK FOR PRICE!

Measuring principle

Ultrasonic concentration

Product headline

Smart, flexible insertion measuring device – individually for your process.

Easy and efficient – real-time in situ liquid analysis.

Continuous concentration measurement of liquids in vessels or large pipes.

Sensor features

Full transparency – constant monitoring of product quality without sampling. Highest process safety – reliable metering due to robust, maintenance-free sensor. Cost-saving – fewer measuring points due to multivariable measurement.

Insertion length: 180 mm (7 in) or 500 mm (20 in). Accurate and independent of flow profile.

Transmitter features

Customized usage – innovative application concept, expendable for changing measuring tasks. Simplified process control – user-friendly operation and clear status visualization. Local data backup – integrated data storage for measured values up to 7,5 years.

Industry-compliant, easy installation via DIN rail. 3.5" TFT color touch screen or LED indication. 4-20 mA, Modbus TCP.

Nominal diameter range

Insertion length: 180 mm (7") or 500 mm (20")

Measured variables

Concentration

Density

Sound velocity

Temperature

Max. measurement error

Density: ±0.01g/cm³

Temperature: ±0.5K

Sound velocity: 2m/s

Measuring range

Concentration According to concentration app data sheet, maximum 0 to 100 %

Sound velocity 600 to 2000 m/s

Temperature concentration app data sheet, maximum 0 to +100 °C (32 to +212 °F)

Density 0.7 to 1.5 g/cm³

Max. process pressure

max. 16 bar at 20 °C (232 psi at 68 °F)

Medium temperature range

0 to 100 °C (32 to 212 °F)

Ambient temperature range

0 to +50 °C (32 to 122 °F)

Sensor housing material

Stainless steel V4A 1.4571

Degree of protection

Sensor: IP68 (with cable plugged in), IP66 (without cable connector)

Transmitter: IP40

Display/Operation

LED status indication

TFT color touch display

Outputs

4-20mA / Modbus TCP

Power supply

DC 24 V (18 to 35 V)

Hazardous area approvals

Non-hazardous area

UK; Non-hazardous area

Product safety

CE, C-Tick
