D9HB Teqwave H – Ultrasonic concentration meter

PLEASE ASK FOR PRICE!

Measuring principle

Ultrasonic concentration

Product headline

Inline device with best-in-class hygienic design – plug and play for food and beverage processes.

High accuracy and repeatability – concentration calculation with latest algorithms.

Continuous quality monitoring of beverages and in cleaning processes.

Sensor features

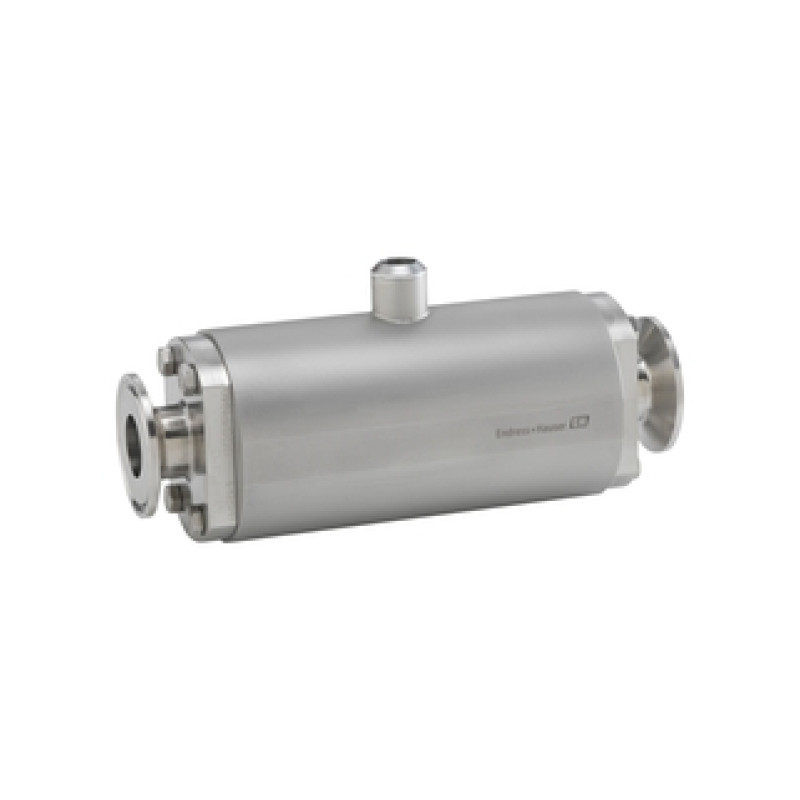

Fulfilment of hygienic requirements – easily cleanable full-bore sensor. Full transparency – constant monitoring of product quality without sampling. Highest process safety – reliable metering due to robust, maintenance-free sensor.

Nominal diameter: DN 25 (1"). Accurate and independent of flow profile. Sensor housing made of stainless steel (3-A, EHEDG).

Transmitter features

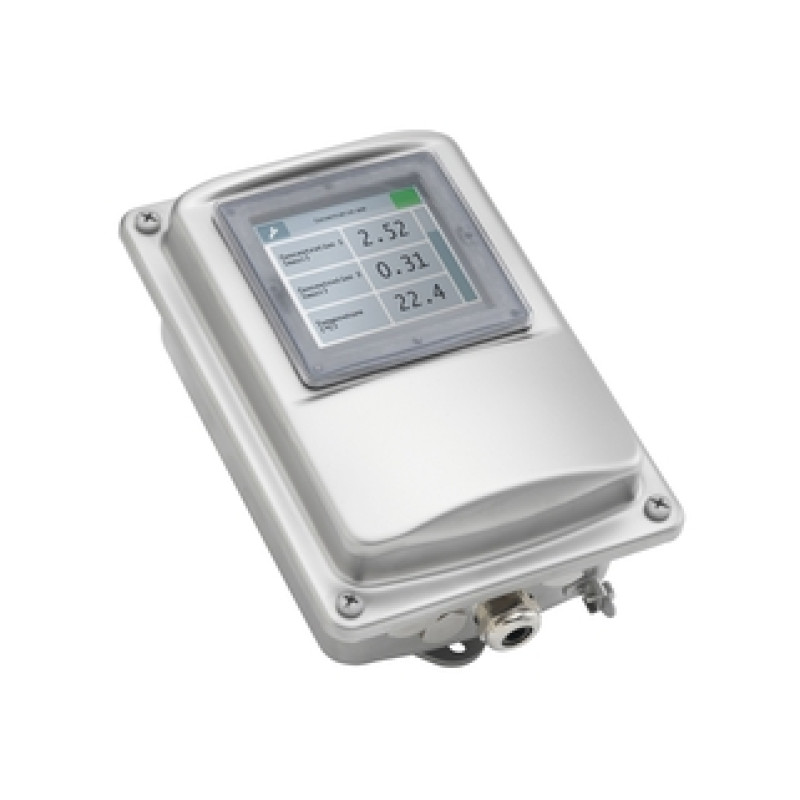

Customized usage – innovative application concept, expendable for changing measuring tasks. Simplified process control – user-friendly operation and clear status visualization. Local data backup – integrated data storage for measured values up to 7,5 years.

Industry-compliant, easy installation via DIN rail. 3.5" TFT color touch screen or LED indication. 4-20 mA, Modbus TCP.

Nominal diameter range

DN 8 (3/8“) to DN 25 (1“)

Measured variables

Concentration, density, sound velocity, temperature

Max. measurement error

Density: ±0.01g/cm³

Temperature: ±0.5K

Sound velocity: 2m/s

Measuring range

Concentration According to concentration app data sheet, maximum 0 to 100 %

Sound velocity 600 to 2000 m/s

Temperature concentration app data sheet, maximum 0 to +100 °C (32 to +212 °F)

Density 0.7 to 1.5 g/cm³

Max. process pressure

max. 16 bar at 20 °C (232 psi at 68 °F)

Medium temperature range

0 to 120°C (32 to 248 °F)

Ambient temperature range

0 to 50 °C (32 to 122 °F)

Sensor housing material

Stainless steel V4A 1.4571

Degree of protection

Sensor: IP68 (with cable plugged in), IP66 (without cable connector)

Transmitter: IP40

Display/Operation

LED status indication

TFT color touch display

Outputs

4-20mA / Modbus TCP

Inputs

DC 24 V (18 to 35 V)

Power supply

Power supply

Hazardous area approvals

Non-hazardous area

UK; Non-hazardous area

Product safety

CE, C-tick
