CYZ71D Multichannel, multiparameter software Memobase Plus

Measuring principle

Potentiometric

Application

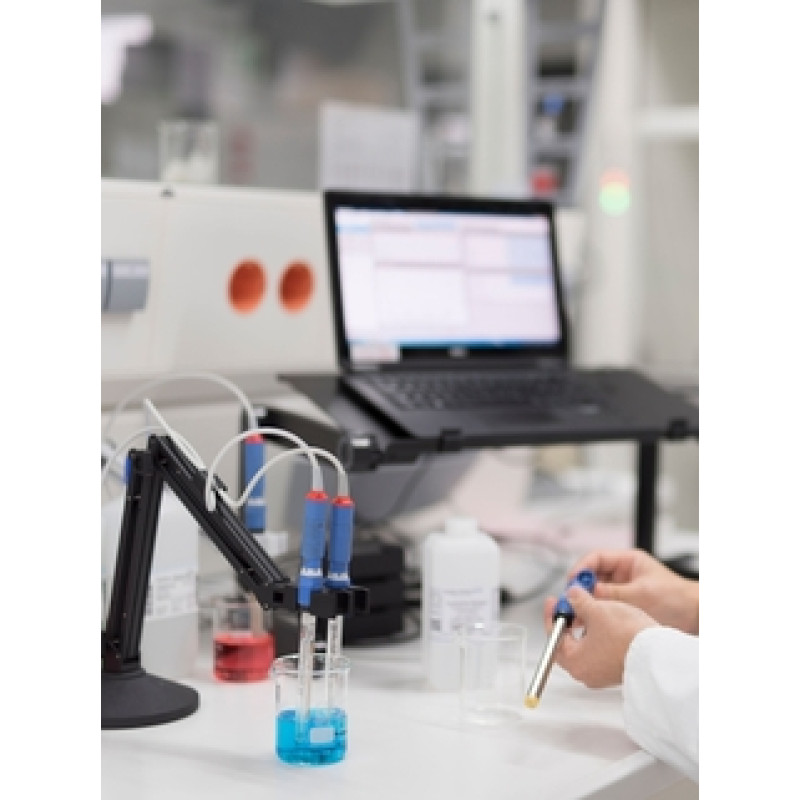

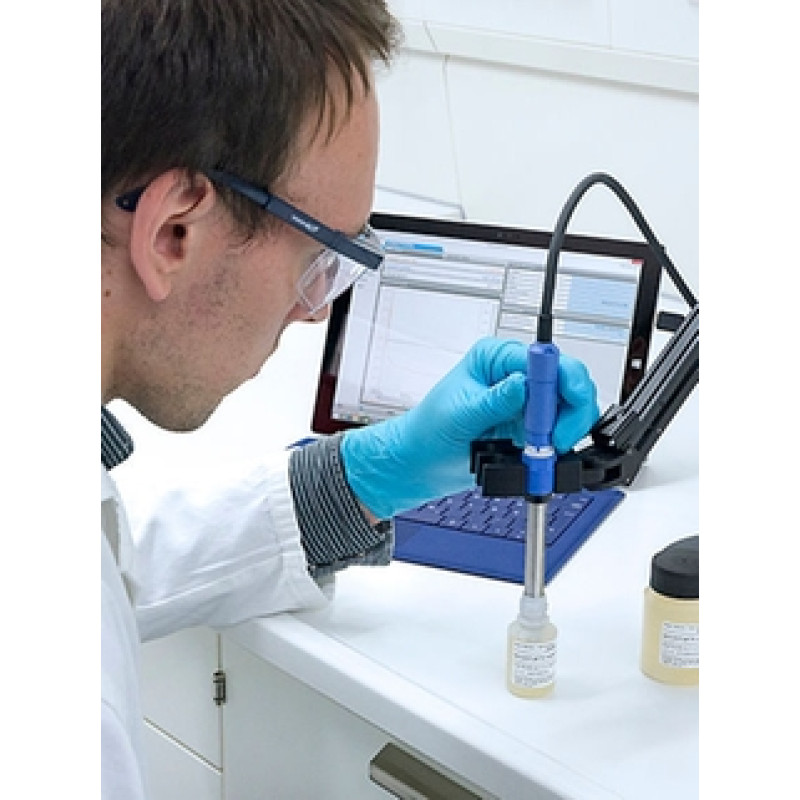

Measurement, calibration and documentation of Memosens sensors in laboratories, up to four channels

Installation

Laboratory or work bench applications in safe area, no connection to PCS!

Characteristic

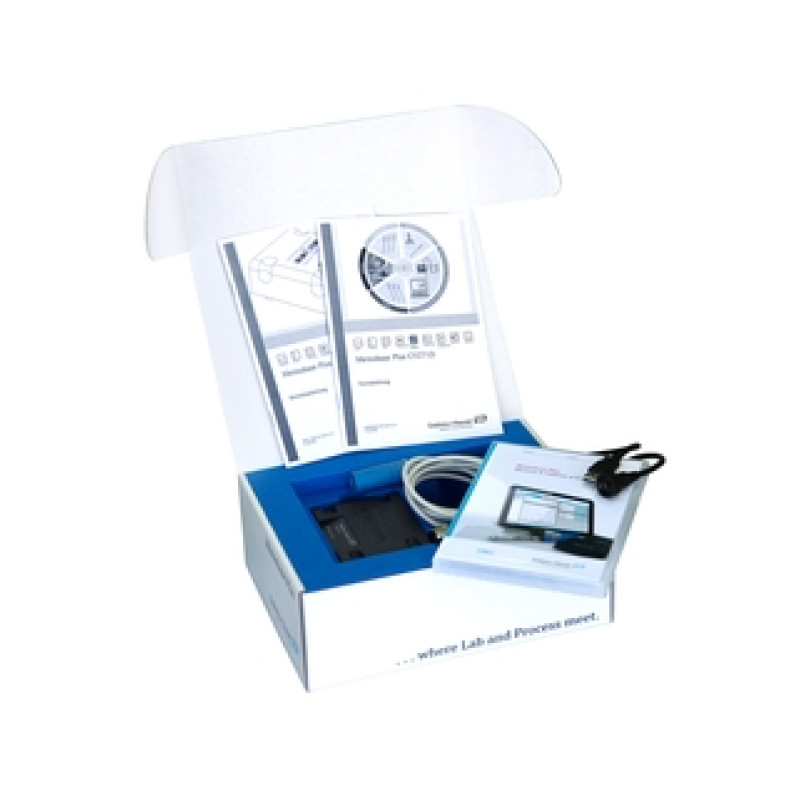

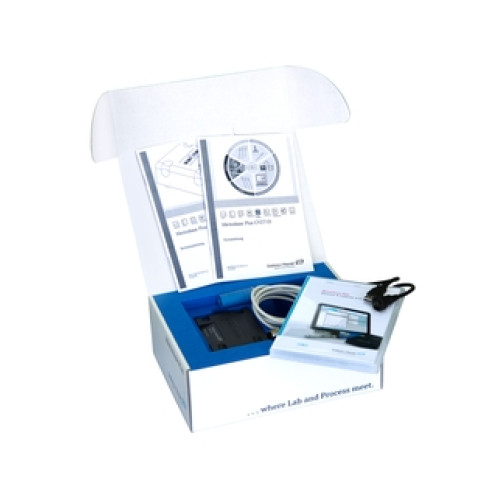

Product consists of PC software, USB cable, sensor connection box MemoLink and Memosens lab cable CYK20 optionally, CYK10 with M12 plug can be used alternatively

Measurement range

Dependent on connected sensors, please see sensor specifications

Measuring principle

Memosens and measuring principles of the connected sensors

Material

MemoLink sensor connection box: PBT

Dimension

MemoLink sensor connection box:

97.0 x 31.5 x 77.5 mm

3.82 x 1.24 x 3.05 inch

Ex certification

ATEX II (2)G (Ex ia Gb) IIc which enables to connect Ex- and non-ex sensors alternating to the MemoLoink box without loosing the sensor's approval

PC, USB cable and MemoLink in safe area only!

Ingress protection

MemoLink: IP 65 when cables are connected

Input

Memosens

Output / communication

USB

Additional certifications

FDA CFR 21 Part 11 Certificate of compliance when Pharma conformity is ordered
