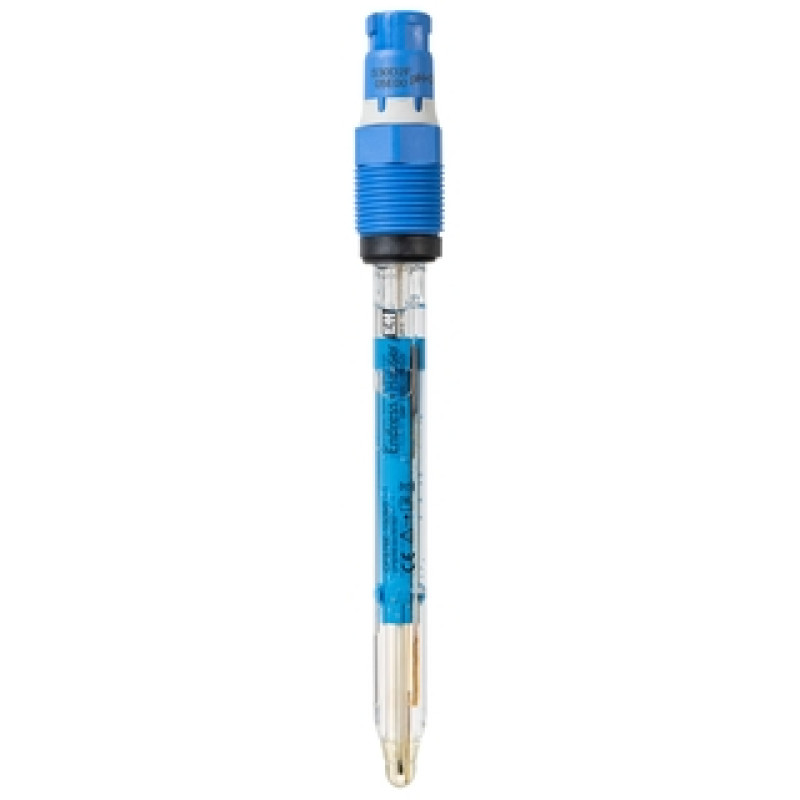

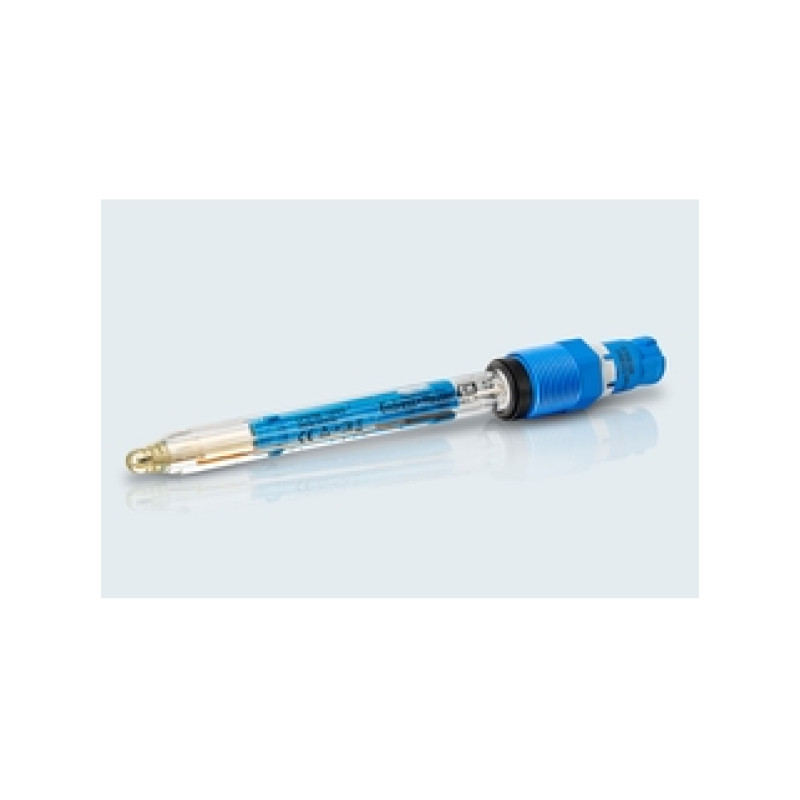

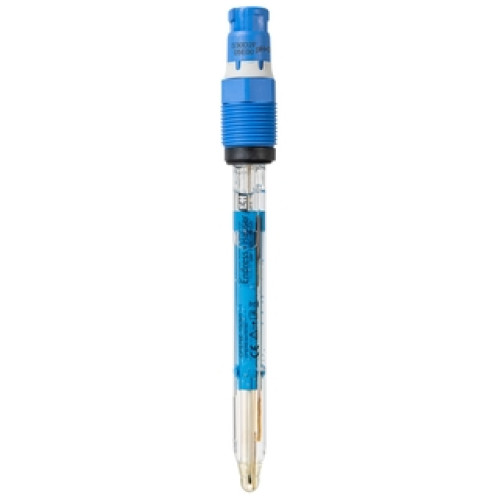

CPS76E Memosens Combined pH/ORP sensor

Measurement range

ORP: –1 500 to 1 500 mV

Application B

• pH: 0 to 14

Application H

• pH: 0 to 12

Process temperature

Application B and H:

0 to 140 ° C (32 to 284 ° F)

Version TB:

0 to 140 ° C (32 to 284 ° F)

Version TU, TP (pressurized reference):

0 to 140 ° C (32 to 284 ° F) (140 ° C (284 ° F) for sterilization only)

maximum 100 ° C (212 ° F) in continuous operation due to increasing

pressure drop at T> 100 ° C (212 ° F)

Process pressure

Application B: 0.8 to 14 bar (11.6 to 203 psi) absolute

Application H: 0.8 to 7 bar (11.6 to 101,5 psi) absolute
