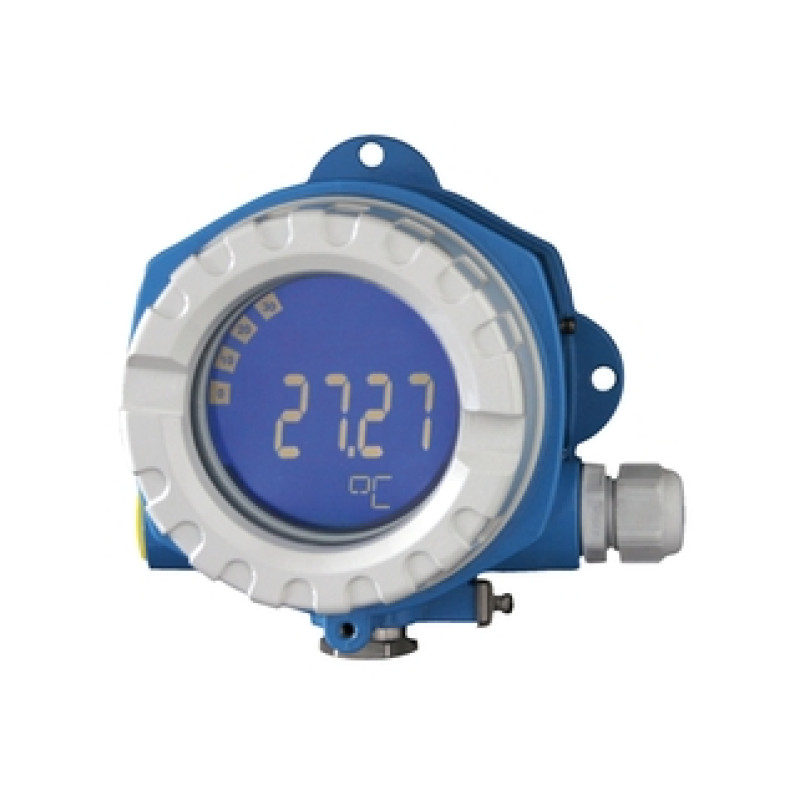

RID14 8 channel field indicator for fieldbuses

Measuring principle

Fieldbus indicators

Measuring principle

8 channel field indicator for fieldbuses

Function

Display values

Advanced diagnostic

Display

High contrast backlit LCD with bargraph

TAG/unit

Power Supply

Not defined

Input

Foundation Fieldbus protocol

PROFIBUS PA protocol

Output

Not defined

Output

Not defined

Software functions

Listener Mode

On Foundation Fieldbus also function block connection:

Display transducer block

Advanced diagnostic block

2 x input selector

Arithmetic block

Integrator block

PID block

Certificates

ATEX II1G Ex ia IIC T6

ATEX II3G Ex ic IIC T6

ATEX II2G Ex db IIC T6 Gb

ATEX II2D Ex tb IIIC Db

ATEX II3G Ex nA IIC T6

ATEX II1G Ex ia IIC T4/T5/T6, II2D

CSA General Purpose

CSA IS, NI I / 1+2/A-D

CSA XP,NI,DIP I,II,III/1+2/A-G

CSA XP,NI,DIP IS, NI I, II, III/1+2/A-G

FM IS,NI I / 1+2/A-D

FM XP,NI,DIP I,II,III/1+2/A-G

FM XP,NI, DIP IS, NI I, II, III/1+2/A-G

IECEx Ex ia IIC T6 Ga

IECEx Ex db IIC T6 Gb

IECEx Ex tb IIIC Db

SIL

Not defined

Panel mounting

field
