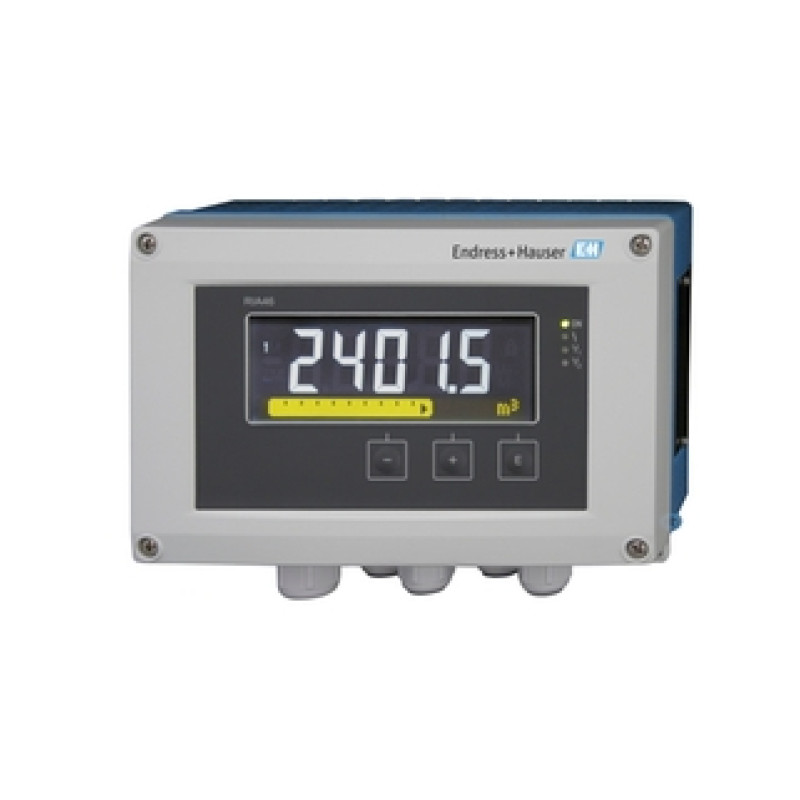

RIA46 Field meter with control unit

Measuring principle

Indicators with control unit

Measuring principle

Field meter with control unit

Function

Display

Loop Power Supply

Transmitter Functionality

Barrier

Signal Isolation

Calculation

Limit Alarm

Display

Multicolor backlight LCD

White/black/yellow

Bargraph

Unit

TAG

Alarm warning in plain text

Power Supply

20...250V AC/DC

Input

2 x universal (U, I, R, RTD, TC)

Output

2 x analogue output (I, U) 1 x loop power supply

Output

2 x analogue output (I, U) 1 x loop power supply

Software functions

Linearization

Minimum value per channel

Maximum value per channel

Calculation

Band value monitoring

Certificates

ATEX II(1)GD [Ex ia] IIC

CSA General Purpose

CSA AIS, NI/I/2/ABCDEFG/T4

FM AIS, NI/I/2/ABCDEFG/T4

TIIS [Ex ia] IIC

NEPSI [Ex ia] IIC

UK II(1)G [Ex ia Ga] IIC, II(1)D [Ex ia Da] IIIC

SIL

2

Panel mounting

field
