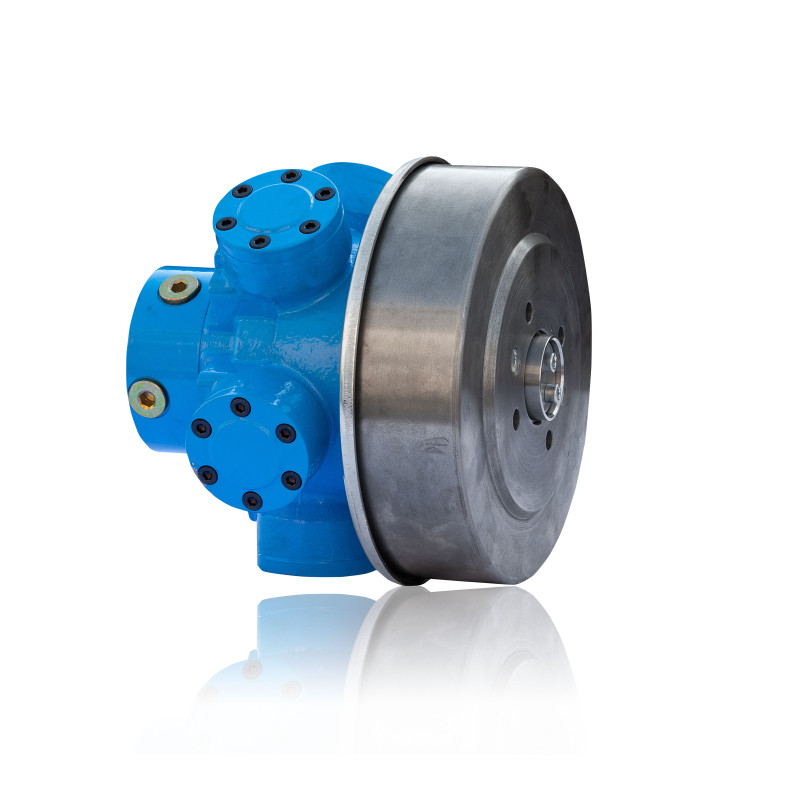

RC Series Wheel Motor with Drum Brake
- Brand: Italgroup
- Product Code: RC Series
- Availability: In Stock
-
0.00€
- Ex Tax: 0.00€
PLEASE ASK FOR PRICE!
RC wheel motor is composed by radial piston motor and drum brake for dynamic/parking braking. Complete of fixing holes for both vehicle's frame and tire, RC is a complete wheel drive with outstanding starting-constant torque, low speed capability, wide speed range and high compactness. Ideal for hydrostatic transmissions.
Technical Features:
- Fixed and Dual Displacement
- Displacement Range : 150 - 257 cc/rev
- Built-in Drum Brake
- Wide Speed Range
- Compact Design
- Hgih efficiency / High starting torque
- Speed sensor predisposition
- Open/Closed loop circuit
Technical data
| Size | Total displacement [cc/rev] |
Cont. output torque [Nm] |
Max. output torque [Nm] |
Max Peak pressure |
Max Output Speed |
Max power [kW] |
|---|---|---|---|---|---|---|
| RC 150 | 150 | 600 | 790 | 350 | 1050 | 40 |
| RC 195 | 195 | 715 | 1010 | 350 | 900 | 40 |
| RC 250 | 257 | 950 | 1330 | 350 | 810 | 40 |
