W Series Single & Dual Displacement Wheel Motors
- Brand: Italgroup
- Product Code: W Series
- Availability: In Stock
-
0.00€
- Ex Tax: 0.00€
PLEASE ASK FOR PRICE!

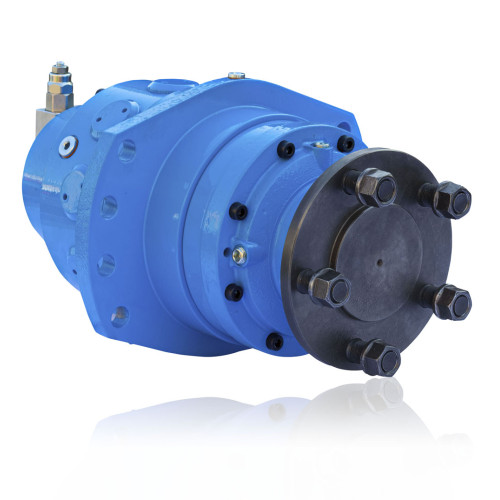

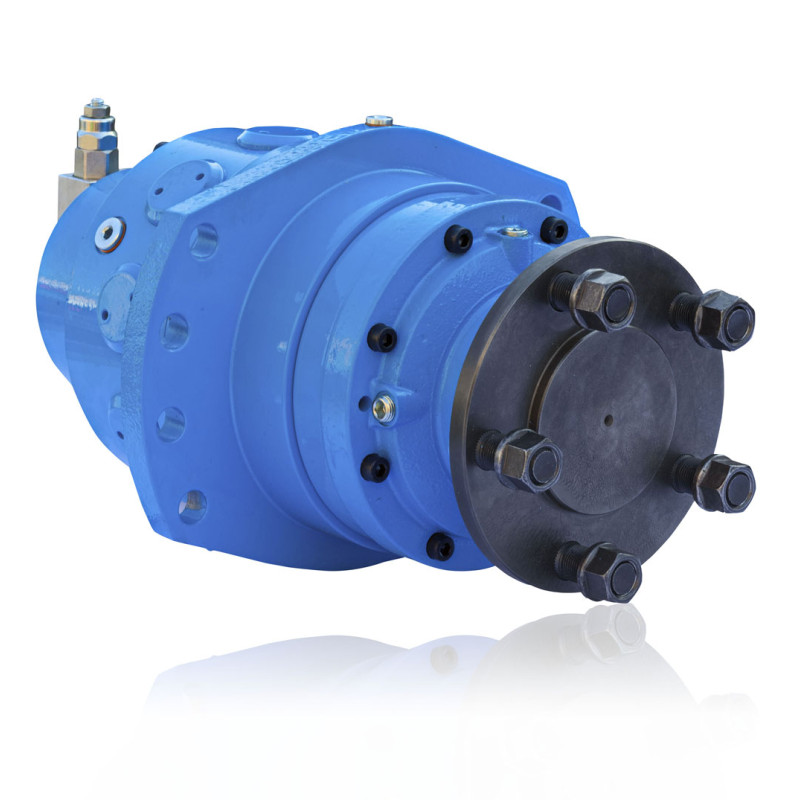

Hydraulic motors of the W series are crankshaft radial piston motors combined with single stage planetary gearbox, rear case mounting and wheel flange.
Thanks to great variety of accessories W series is a complete wheel drive for open or closed circuits used in a wide range of applications.
- High Starting Torque & Low Speed Capability
- Total Displ. Range: 180 cc/rev – 1750 cc/rev
- Max Output Torque: 8750 Nm
- Max Output Speed: 600 rpm
- Fixed and Dual Displacement
- Compact Design
- Big Load Capacity
- Wheel Mounting / Rear Case Mounting
- Built-in Negative Parking Brake
- Built-in Dynamic Drum Brake
- Freewheeling Operation / Mechanical Disengagement
Technical data
| Size | Total displacement [cc/rev] |
Cont. output torque [Nm] |
Max. output torque [Nm] |
Max cont. pressure [bar] |
Max int. pressure [bar] |
Max Peak pressure |
Max Output Speed |
Max power [kW] |
Max Radial Load[kN] |
|---|---|---|---|---|---|---|---|---|---|
| W05 | 180 to 850 | 3400 | 4000 | 250 | 280 | 350 | 650 | 35 | 100 |
| W08 | 500 to 1250 | 4500 | 6300 | 250 | 280 | 350 | 250 | 45 | 100 |
| W11 | 730 to 1750 | 6250 | 8740 | 250 | 280 | 350 | 205 | 75 | 125 |
