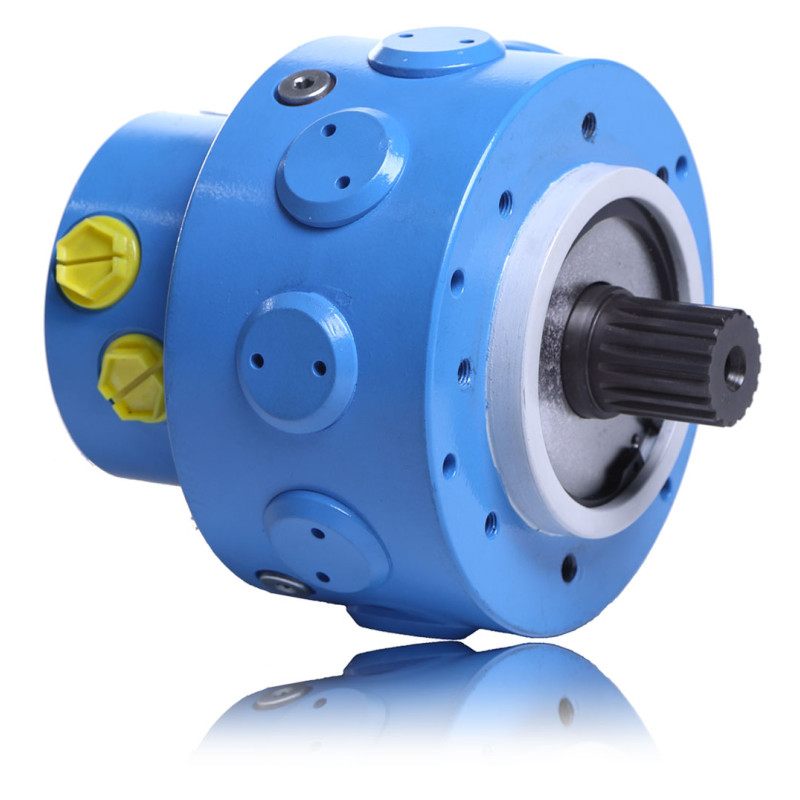

G&GD Series Compact - High Speed Single & Dual Displacement Motors
- Brand: Italgroup
- Product Code: G&GD
- Availability: In Stock
-
0.00€
- Ex Tax: 0.00€
PLEASE ASK FOR PRICE!
The series of hydraulic motors with 9 radial pistons offer high speed and compactness, in both single and double displacement types. All available starting from 20 cc to provide the efficiency of the radial piston construction type even for small displacements.
Features:
- fixed & dual displacement
- displ. range: 20 cc/rev – 100 cc/rev
- speed: up to 2400 rpm
- compact design
- high cavitation resistance
- freewheeling operation
Technical data
G Series - Single Displacement Motor
| Motor | Number of pistons | Displacement [cc] |
Theoretical Specific Torque [Nm/bar] |
Max cont. Pressure [bar] |
Max int. Pressure [bar] |
Max Peak Pressure [bar] | Max cont. Speed [rpm] |
Peak Speed [rpm] |
Max cont. Power [kW] |
Max Power [kW] | Dry Weight [Kg] |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| G20 | 9 | 20,5 | 0,32 | 250 | 280 | 350 | 2400 | 2500 | 10 | 12 | 19 | |
| G27 | 9 | 27,3 | 0,43 | 250 | 280 | 350 | 2400 | 2500 | 14 | 17 | 19 | |
| G34 | 9 | 34,2 | 0,54 | 250 | 280 | 350 | 2400 | 2500 | 17 | 21 | 19 | |
| G50 | 9 | 50,9 | 0,81 | 250 | 280 | 350 | 2300 | 2400 | 25 | 31 | 25 | |
| G75 | 9 | 76,3 | 1,21 | 250 | 280 | 350 | 2150 | 2300 | 35 | 44 | 25 | |
| G90 | 9 | 89 | 1,41 | 250 | 280 | 350 | 2000 |
2200 2200 |
42 | 52 | 25 | |
| G100 | 9 | 102 | 1,61 | 250 | 280 | 350 | 1900 | 2200 | 48 | 60 | 25 |
GD Series - Dual Displacement Motor
| Motor | Number of pistons | Min Displacements range (from .. to) [cc] |
Max Displacements range (from .. to) [cc] |
Max Cont. Pressure [bar] |
Max Int. Pressure [bar] | Max Peak Pressure [bar] | Max Cont.Power [kW] |
Peak Power [kW] | Dry Weight [kg] | |
|---|---|---|---|---|---|---|---|---|---|---|
| GD 100 | 9 | 31 .. 50 | 50 .. 100 | 250 | 275 | 350 | 48 | 60 | 25 |
