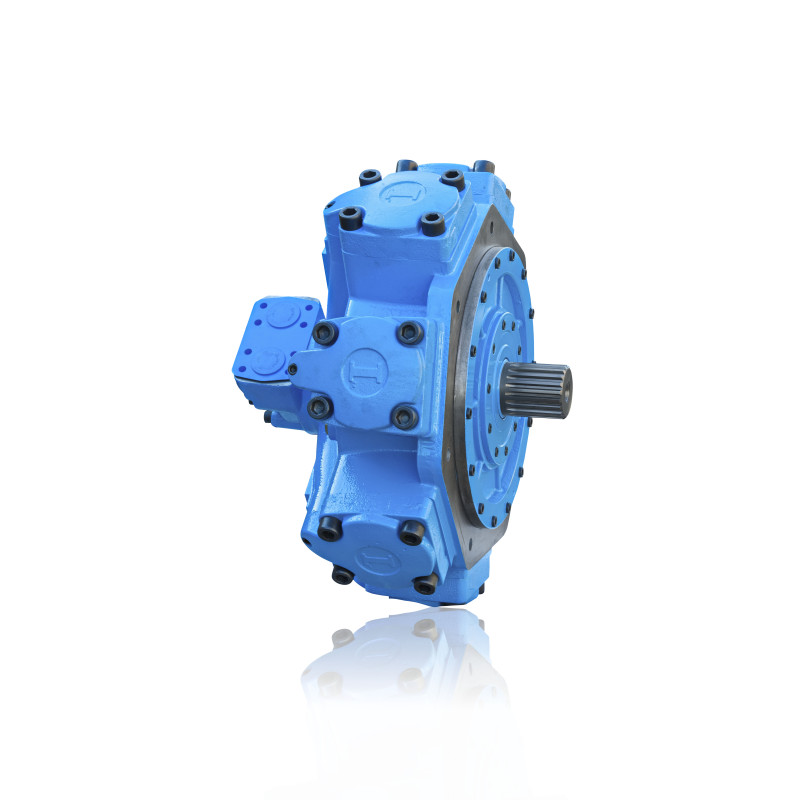

IAC Series (Phasing Out) Dual Displacement Hydraulic Motors
- Brand: Italgroup
- Product Code: IAC Series (Phasing Out)
- Availability: In Stock
-
0.00€
- Ex Tax: 0.00€
PLEASE ASK FOR PRICE!
Technical data
| Motor | Size | Number of pistons | Min. Displacement range (from...to) [cc] |
Max. Displacement range (from...to) [cc] |
Max cont. Pressure [bar] |
Max int. Pressure [bar] |
Max Peak Pressure [bar] | Max cont. Power [kW] |
Dry Weight [Kg] | |
|---|---|---|---|---|---|---|---|---|---|---|
| IAC 195 | H1 | 5 | 69 .. < Max Disp. | 75 .. 195 | 270 | 310 | 350 | 45 | 26 | |
| IAC 250 | H1 | 5 | 95 .. < Max Disp. | 150 .. 257 | 250 | 310 | 350 | 48 | 26 | |
| IAC 500 | H3 | 5 | 98 .. < Max Disp. | 255 .. 492 | 270 | 310 | 350 | 78 | 68 | |
| IAC 800 | H4 | 5 | 165 .. < Max Disp. | 328 .. 792 | 270 | 310 | 350 | 125 | 92 | |
| IAC 1400 | H5 | 5 | 0 .. < Max Disp. | 574 .. 1600 | 270 | 310 | 350 | 172 | 173 | |
| IAC 2200 | H55 | 5 | 0 .. < Max Disp. | 655 .. 2200 | 270 | 310 | 350 | 170 | 210 | |
| IAC 3000 | H6 | 5 | 0 .. < Max Disp. | 820 .. 3085 | 270 | 310 | 350 | 270 | 308 | |
| IAC 4600 | H7 | 7 | 0 .. < Max Disp. | 492 .. 4600 | 270 | 310 | 350 | 290 | 405 | |
| IAC 5400 | H7 | 7 | 0 .. < Max Disp | 655 .. 5326 | 250 | 310 | 350 | 265 | 405 |
