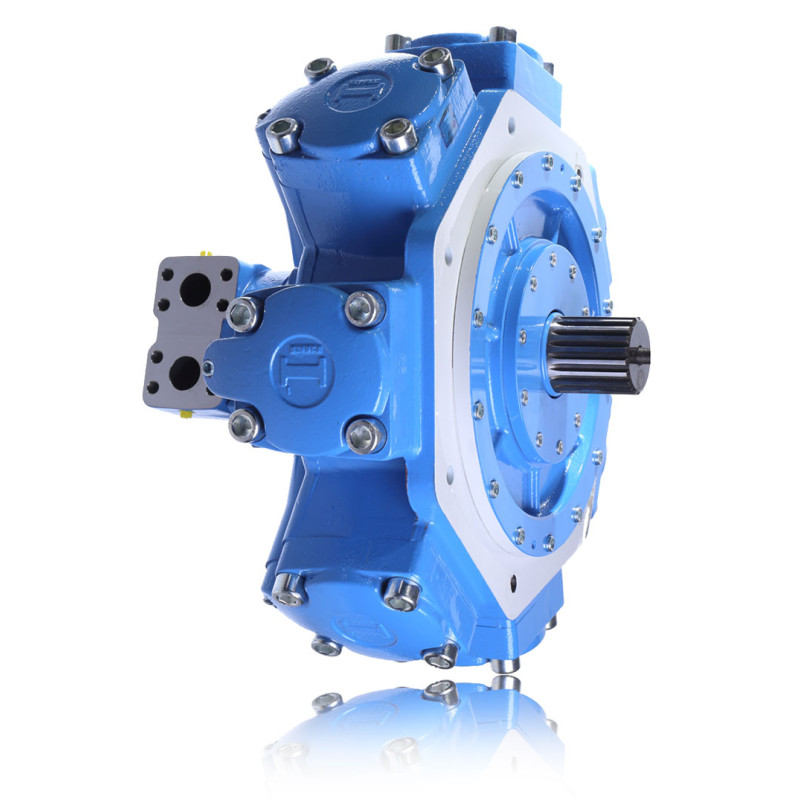

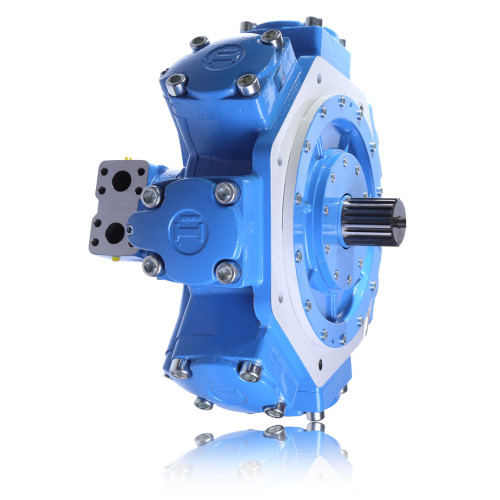

R8C Series (Ex IAC) Dual Displacement Hydraulic Motors
- Brand: Italgroup
- Product Code: R8C Series (Ex IAC)
- Availability: In Stock
-
0.00€
- Ex Tax: 0.00€
PLEASE ASK FOR PRICE!
R8C is the evolution of the hystorical series IAC. With unchanged dimensions and mounting face to grant full interchangeability with the old series, R8C is the result of twenty years of continuous improvements and constant growing number of optional and configurations.
The wide range of displacements in the standard series is doubled by the dual displacement of the R8C motors. These “two speed” motors allow the user to provide two different operating conditions with just one motor.
Features:
- Dual displacement
- Displ. range: 0 cc/rev – 5400 cc/rev
- Wide speed range: 1 to 1000 rpm
- Freewheeling option
- Interchangeable mounting face
Technical data
| Motor | Size | Number of pistons | Min. Displacement range (from...to) [cc] |
Max. Displacement range (from...to) [cc] |
Max cont. Pressure [bar] |
Max int. Pressure [bar] |
Max Peak Pressure [bar] | Max cont. Power [kW] |
Dry Weight [Kg] |
|---|---|---|---|---|---|---|---|---|---|
| R8C 195 | H1 | 5 | 69 .. < Max Disp. | 75 .. 195 | 270 | 310 | 350 | 45 | 26 |
| R8C 250 | H1 | 5 | 95 .. < Max Disp. | 150 .. 257 | 250 | 310 | 350 | 48 | 26 |
| R8C 500 | H3 | 5 | 98 .. < Max Disp. | 255 .. 492 | 270 | 310 | 350 | 78 | 68 |
| R8C 800 | H4 | 5 | 165 .. < Max Disp. | 328 .. 792 | 270 | 310 | 350 | 125 | 92 |
| R8C 1400 | H5 | 5 | 0 .. < Max Disp. | 574 .. 1600 | 270 | 310 | 350 | 172 | 173 |
| R8C 2200 | H55 | 5 | 0 .. < Max Disp. | 655 .. 2200 | 270 | 310 | 350 | 170 | 210 |
| R8C 3000 | H6 | 5 | 0 .. < Max Disp. | 820 .. 3085 | 270 | 310 | 350 | 270 | 308 |
| R8C 4600 | H7 | 7 | 0 .. < Max Disp. | 492 .. 4600 | 270 | 310 | 350 | 290 | 405 |
| R8C 5400 | H7 | 7 | 0 .. < Max Disp | 655 .. 5326 | 250 | 310 | 350 | 265 | 405 |
