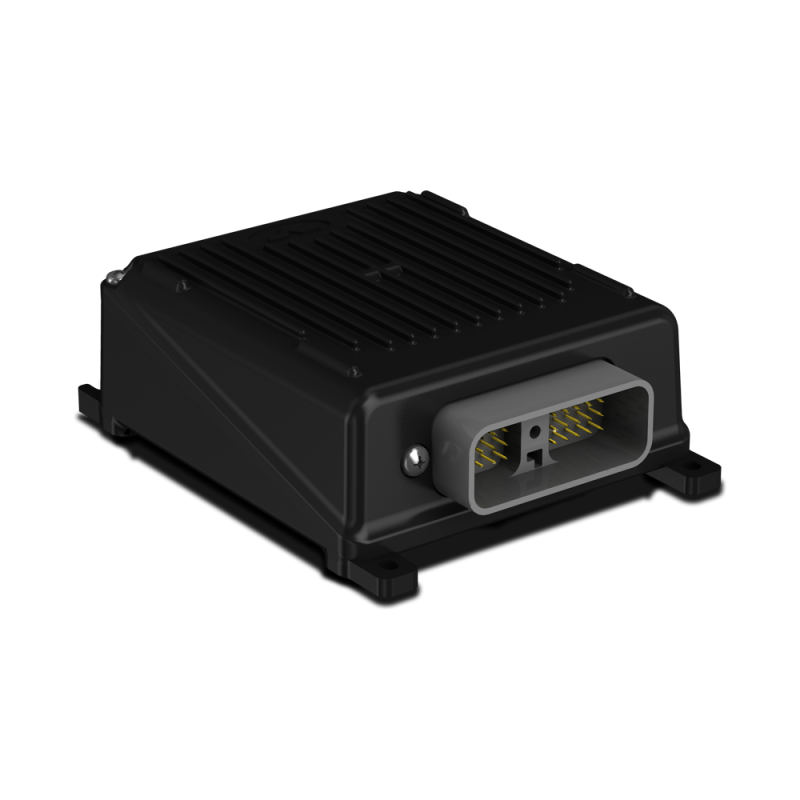

This controller is compatible with Universal Terminal UT2.0 and is designed for ISOBUS Front Loader application.
Thanks to its construction, the unit can be mounted outside the tractor cabin, directly on the front loader attachement.
Voltage supply: from 9 to 16 V
Current: < 100 mA
Total maximum output current: 21 A
Maximum output current per pin: 2 A (proportional), 5 A (on/off)
Connector: Deutsch DRC23-40PA
Weather protection: IP67
Working temperature: from -40 to 85 °C (from -40 to 185 °F)
Storage temperature: from -40 to 85 °C (from -40 to 185 °F)
Maximum working temperature [°C]: 85
Maximum storage temperature[°C]: 85
Number of CANbus ports: 1
Number of analog inputs: 11
Number of temperature inputs: 0
Number of digital inputs: 1
Number of low side outputs: 3
Number of high side outputs: 4 (2 A), 6 (5A, relay)
Number of 5V outputs: 1
