Dedicated configuration for Front Loader application with 2 proportional sections and 3 on/off coils.

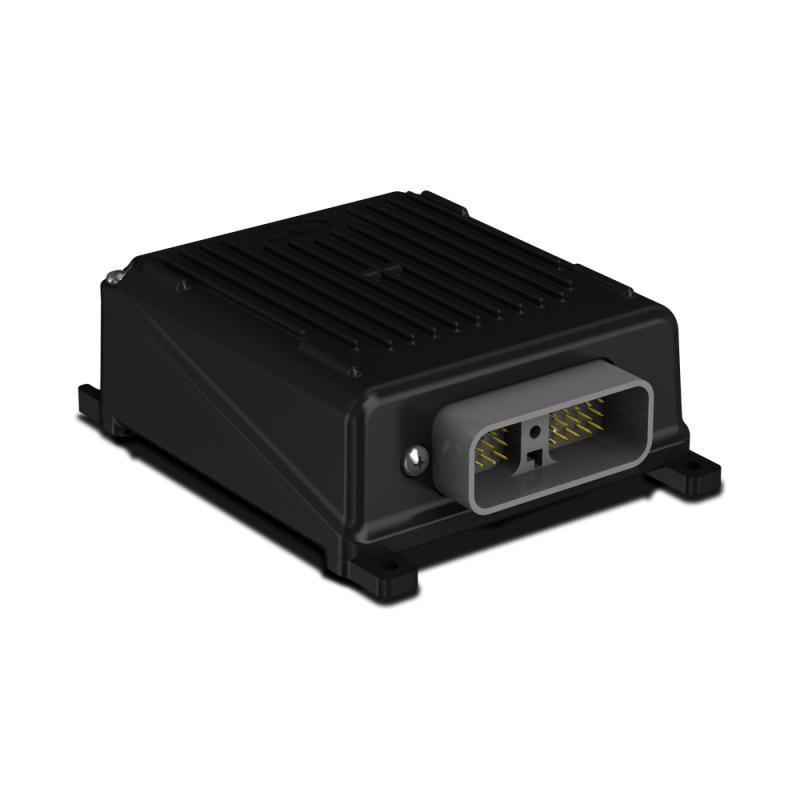

Thanks to its construction, the unit can be mounted outside the tractor cabin, directly on the fron loader attachement.
Voltage supply: from 9 to 16 V
Current: < 100 mA
Total maximum output current: 21 A
Maximum output current per pin: 2 A (proportional), 5 A (on/off)
Connector: Deutsch DRC23-40PA
Weather protection: IP67
Working temperature: from -40 to 85 °C (from -40 to 185 °F)
Storage temperature: from -40 to 85 °C (from -40 to 185 °F)
Maximum working temperature [°C]: 85
Maximum storage temperature[°C]: 85
Number of CANbus ports: 1
Number of analog inputs: 11
Number of temperature inputs: 0
Number of digital inputs: 1
Number of low side outputs: 3
Number of high side outputs: 4 (2 A), 6 (5A, relay)
Number of 5V outputs: 1
