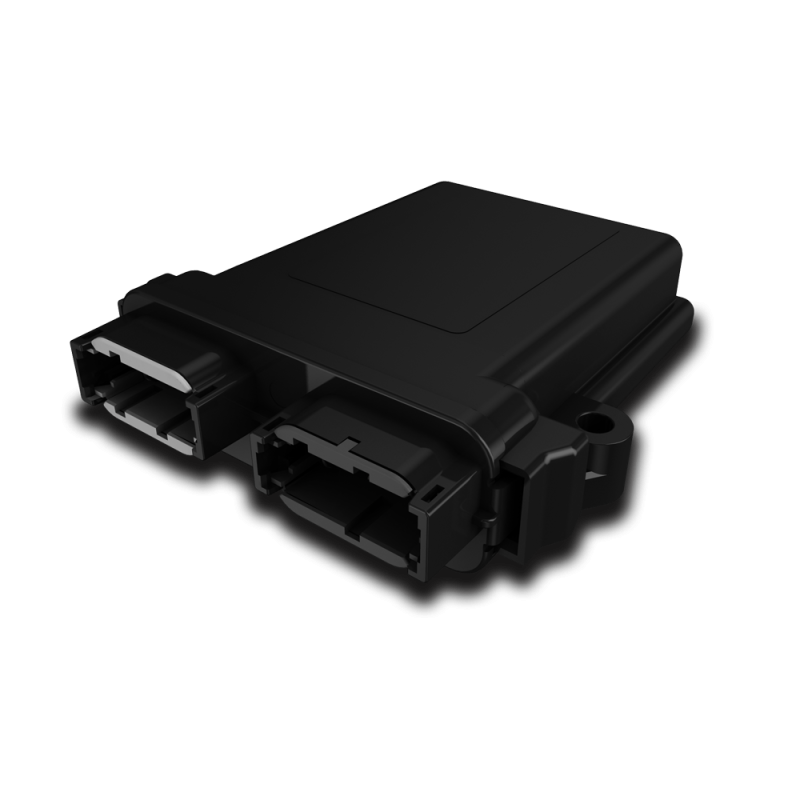

This control unit is available in dedicated configuration for the SDE series valve with direct acting solenoid control.
It is possible to configure the system with a maximum of 1 Master controller (1 proportional section, 1 unloader valve and 6 on/off coils) and 3 Slave controllers (6 on/off coils for every controllers).
Voltage supply: from 9 to 16 V
Current: < 50 mA
Total maximum output current: 7.5 A
Maximum output current per pin: 2 A (proportional), 7.5 A (on/off)
Connector: Deutsch DTM13-12PB
Weather protection: IP67
Working temperature: from -40 to 85 °C (from -40 to 185 °F)
Storage temperature: from -40 to 85 °C (from -40 to 185 °F)
Maximum working temperature [°C]: 85
Maximum storage temperature[°C]: 85
Number of CANbus ports: 1
Number of analog inputs: 3
Number of temperature inputs: 0
Number of digital inputs: 6
Number of low side outputs: 1
Number of high side outputs: 2 (2 A), 6 (7.5A, relay)
Number of 5V outputs: 0
