Specific software for analog directional control valve applications
Microprocessor-based PWM driver designed to control up to 4 proportional solenoid valves.
In the controllers is always loaded the standard application software that is "ready-to-use" and the control parameters can be easlily adjusted through the WST Studio software.

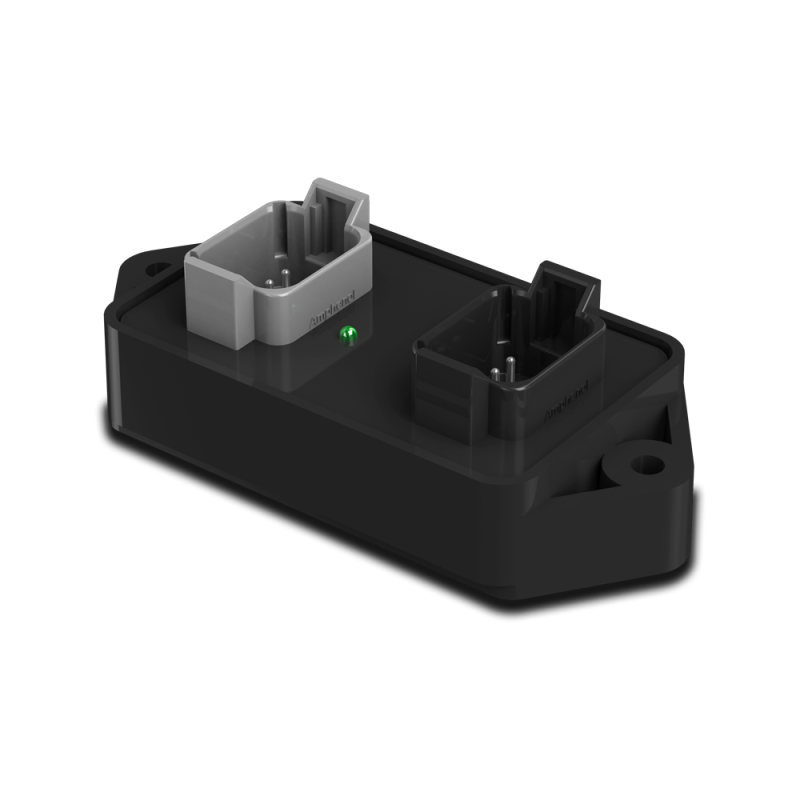

Delivered in a potted enclosure, provide a flexible I/O configuration in a compact package, specifically designed to resist water, temperature, humidity and high vibrations typical of harsh environments.
Voltage supply: from 8 to 32 V
Current: < 50 mA
Total maximum output current: 4 A
Maximum output current per pin: 2 A

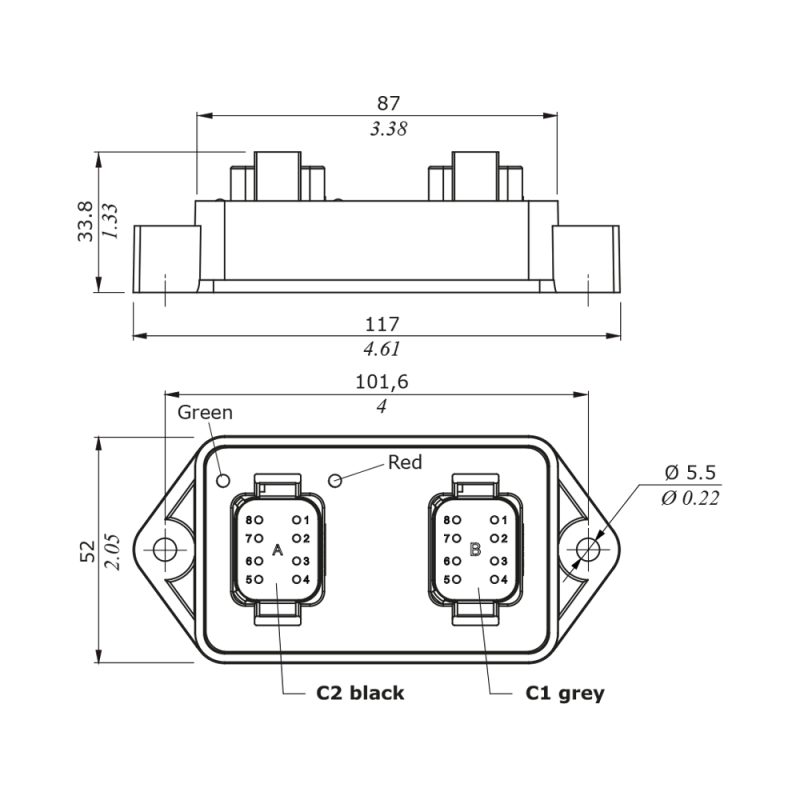

Connector: Deutsch DT04-08PB
Weather protection: IP67 - IP69K
Working temperature: from -40 to 85 °C (from -40 to 185 °F)
Storage temperature: from -40 to 85 °C (from -40 to 185 °F)
Maximum working temperature [°C]: 85
Maximum storage temperature[°C]: 85
Number of CANbus ports: 1
Number of analog inputs: 4
Number of temperature inputs: 0
Number of digital inputs: 4
Number of low side outputs: 2
Number of high side outputs: 4
Number of 5V outputs: 1
WST part number: DCDSW0240007
