CED400W Specific software for analog directinal control valve applications

PLEASE ASK FOR PRICE!

Specific software for analog directinal control valve applications

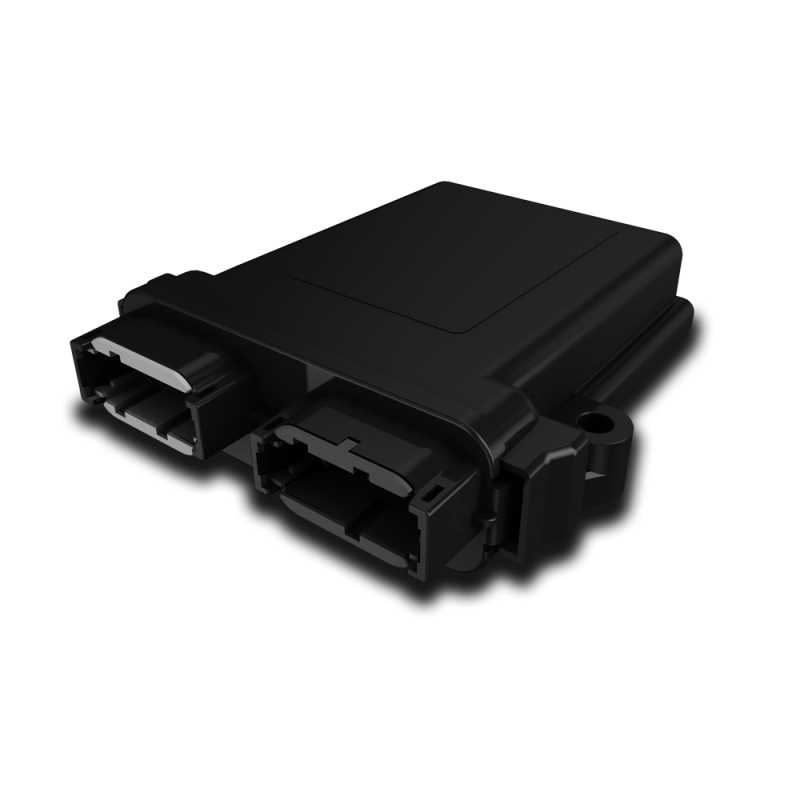

Microprocessor-based PWM driver designed to control up to 8 proportional solenoid valves.
In the controllers is always loaded the standard application software that is "ready-to-use" and the control parameters can be easlily adjusted through the WST Studio software.
It is possible to develop and download a custom application software with the PHC Studio tool. In this case access to IEC61131-3 programming languages is bult-in

Voltage supply: from 8 to 32 V
Current: < 100 mA
Total maximum output current: 6 A
Maximum output current per pin: 2 A
Connector: Deutsch DTM13-12PB
Weather protection: IP67
Working temperature: from -40 to 85 °C (from -40 to 185 °F)
Storage temperature: from -40 to 85 °C (from -40 to 185 °F)
Maximum working temperature [°C]: 85
Maximum storage temperature[°C]: 85
Number of CANbus ports: 0
Number of analog inputs: 4
Number of temperature inputs: 0
Number of digital inputs: 4
Number of low side outputs: 4
Number of high side outputs: 8
Number of 5V outputs: 0
WST part number: DCDSW0230005
