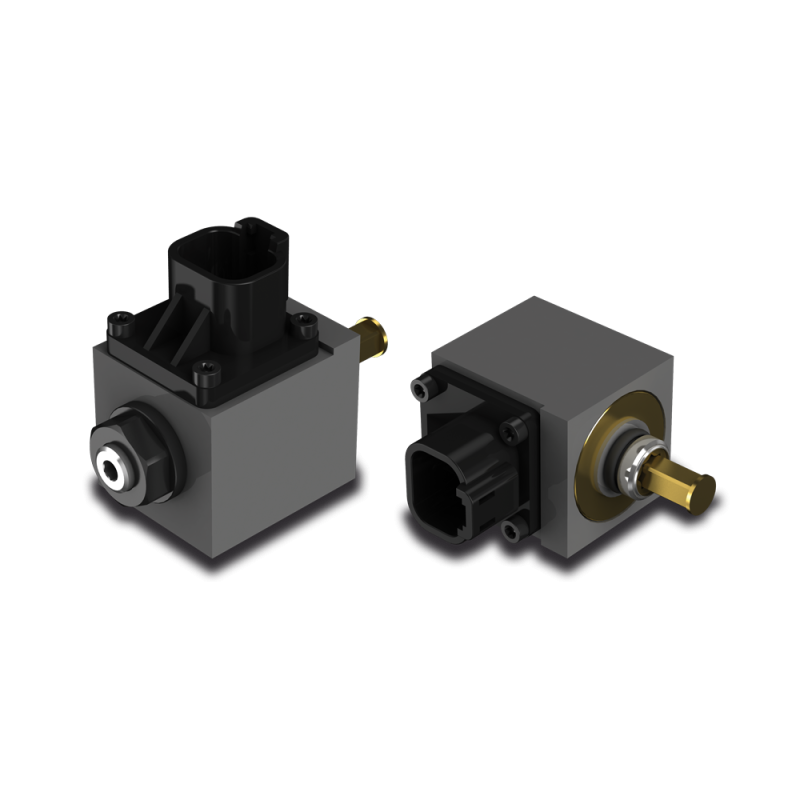

SPSL Linear Hall effect spool position sensors

PLEASE ASK FOR PRICE!

Linear Hall effect spool position sensors

Converts the spool movements into a voltage linear signal.
Accuracy, reliability and repeatability are the main features of the sensors.

Voltage supply: from 8 to 32 V or 5 V
Mechanical life time[cycle]: 3.000.000
Electrical life time [cycle]: 3.000.000
Max stroke: ± 10 mm (± 0.39 in)

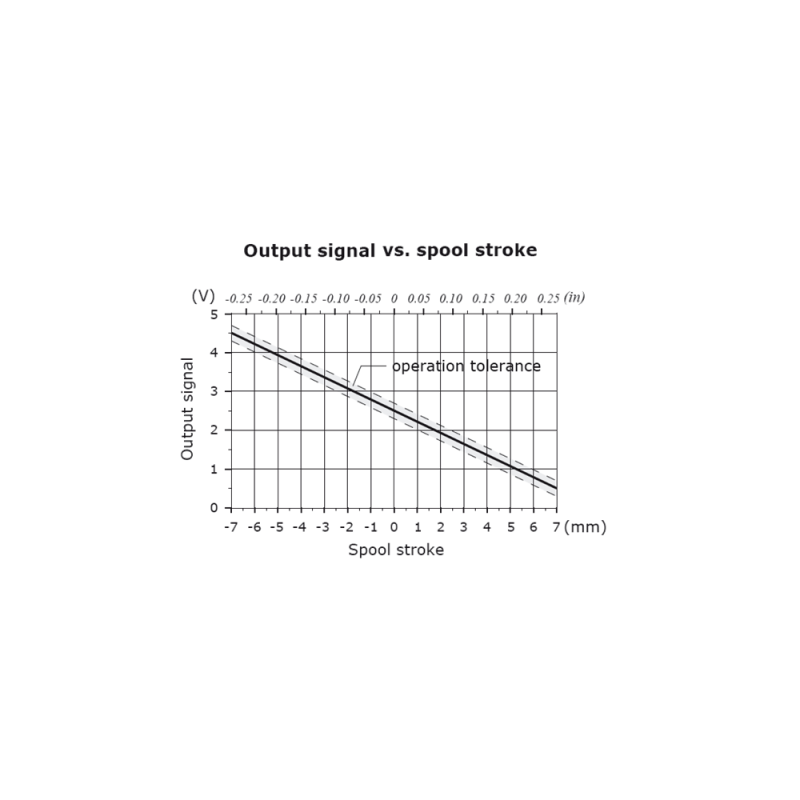

Output signal: 0.5 - 2.5 - 4.5 V (max 1mA)
Connector: Deutsch DT04-4P
Weather protection: IP67, IPX9K
Working temperature: from -40 to 105 °C (from -40 to 221 °F)
