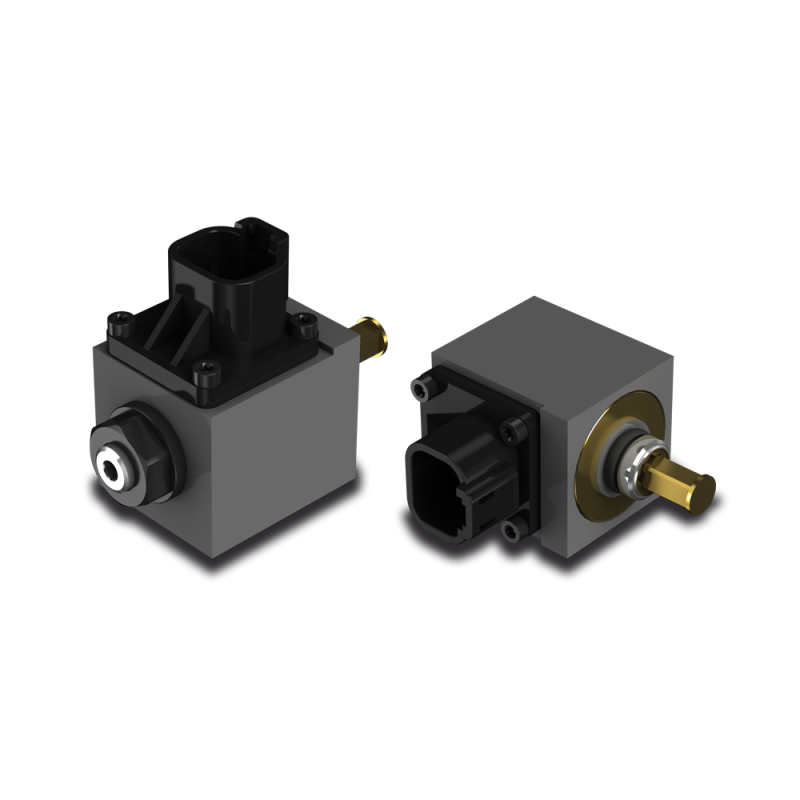

SPSD Digital Hall effect spool position sensors

PLEASE ASK FOR PRICE!

Digital Hall effect spool position sensors

Converts the spool movements into an electric digital signal.
Accuracy, reliability and repeatability are the main features of the sensors.

Voltage supply: from 8 to 32 V
Mechanical life time[cycle]: 3.000.000
Electrical life time [cycle]: 3.000.000
Max stroke: ± 10 mm (± 0.39 in)
Output signal: PNP open collector (max 6mA)
Connector: Deutsch DT04-4P
Weather protection: IP67, IPX9K
Working temperature: from -40 to 105 °C (from -40 to 221 °F)
