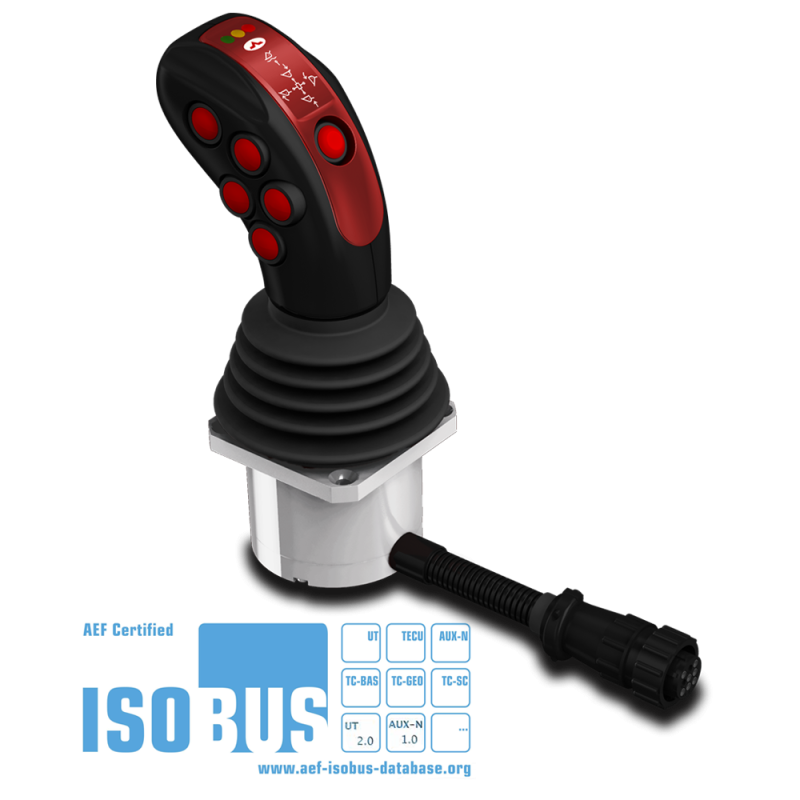

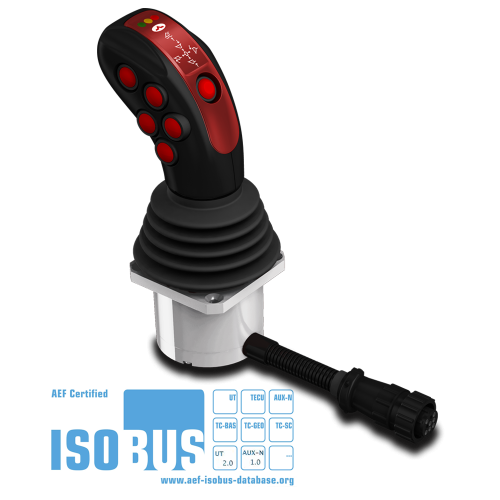

CJW-ISOBUS Hall effect double axis joystick

PLEASE ASK FOR PRICE!

ISOBUS Hall effect double axis joystick

Long life and precise comfortable control due to the Hall technology.
Robust mechanical design specifically tailored to "off-highway" operating machines.
Can be used with all the Walvoil handles range.

Voltage supply: from 8 to 32 V
Mechanical life time[cycle]: 1.000.000
Output signal: CANbus
Lever angle: ±20°
Weather protection: IP65
Working temperature: from -40 to 85 °C (from -40 to 185 °F)
Storage temperature: from -40 to 85 °C (from -40 to 185 °F)
Minimum working temperature [°C]: -40
Maximum working temperature [°C]: 85
Minimum storage temperature [°C]: -40
Maximum storage temperature[°C]: 85
