AJW Analog Hall effect double axis joystick bases

PLEASE ASK FOR PRICE!

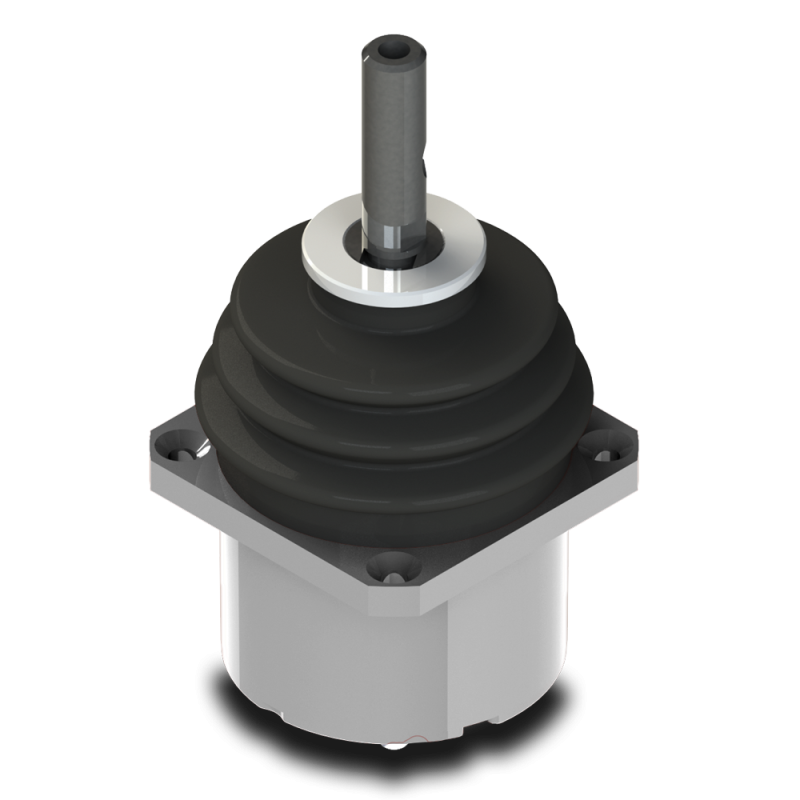

Analog Hall effect double axis joystick bases

Long life and precise comfortable control due to the Hall technology.
Robust mechanical design specifically tailored to "off-highway" operating machines.
Can be used with all the Walvoil handles range.

Voltage supply: from 8 to 32 V or 5 V
Mechanical life time[cycle]: 1.000.000

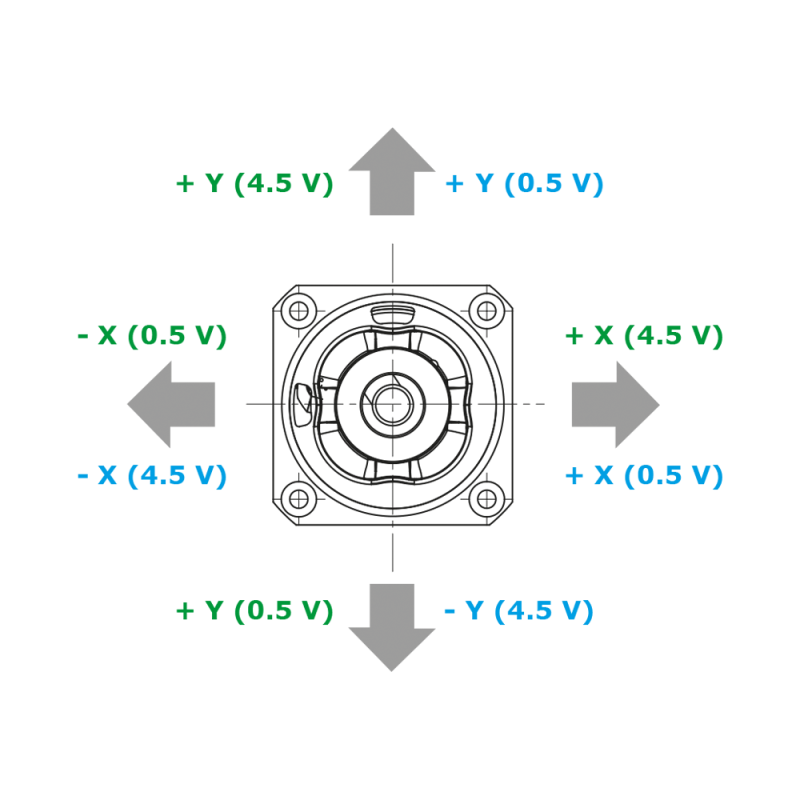

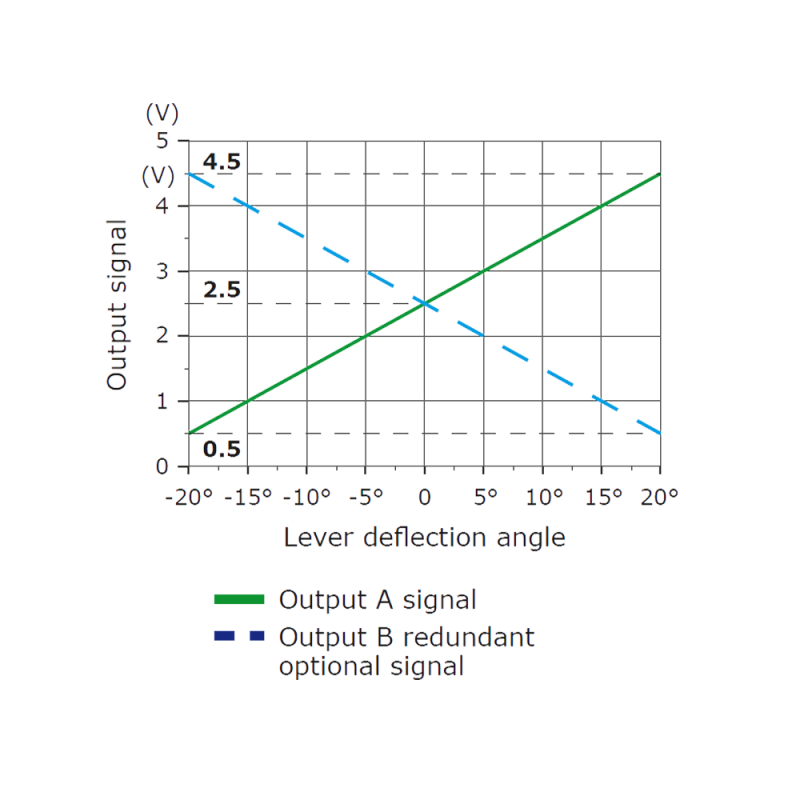

Output signal: 0.5 - 2.5 - 4.5 V (max 1mA)
Lever angle: ±20°
Weather protection: IP65
Working temperature: from -40 to 85 °C (from -40 to 185 °F)
Storage temperature: from -40 to 85 °C (from -40 to 185 °F)
Minimum working temperature [°C]: -40
Maximum working temperature [°C]: 85
Minimum storage temperature [°C]: -40
Maximum storage temperature[°C]: 85
