XMH Multifunction handle for excavators

PLEASE ASK FOR PRICE!

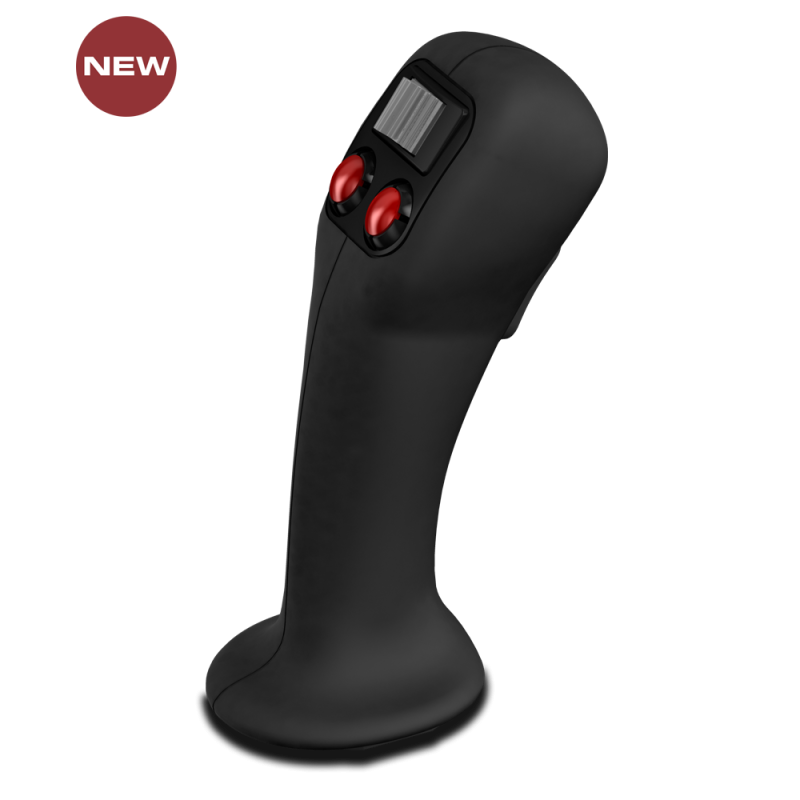

Multifunction handle for excavators

New ergonomic middle size handle with soft touch coating for comfortable hand grip.
The symmetric design makes it suitable for both right and left hand applications.
Up to 4 control elements (thumbwheels, push buttons, rocker switches) on the operator side.
As option the FNR switch in the opposite side of the handle is available.

Material: Santoprene, 90 Shore
Maximum number of buttons: 6
Maximum number of rollers: 3
Working temperature: from -20 to 60 °C (from -4 to 140 °F)
Minimum working temperature [°C]: -20
Maximum working temperature [°C]: 60
